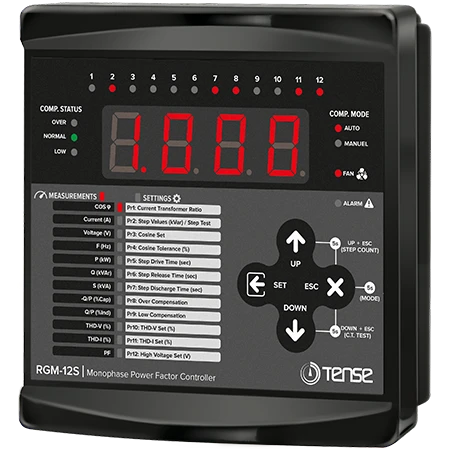

12-level reactive power controller with LED display

12-step Single-Phase Power Factor Controller for Power Factor Control in Networks with Symmetrical Loads (TENSE)

The RGM-12S reactive power control relay is designed to reduce inductive power that does not use loads but is drawn from the grid. When inductive reactive power is drawn from the grid, it intervenes by activating capacitors of appropriate value. In this way, it attempts to bring the Cos phi value to the desired level.

• 7 Different power factor compensation programs

• Manual power factor compensation programs

• Can only compensate inductive systems

• Automatic step measurement

• Step engagement, disengagement, and discharge are adjustable

• Adjustable voltage and current harmonic distortion values

• Over- and under-compensation alarm values can be set

• Voltage, harmonic voltage/current, over- and under-compensation alarm outputs

• Voltage, current, and frequency values can be monitored

• Active power, reactive power, and apparent power values can be monitored

• Up to 15th harmonic THD-I can be monitored

• Up to 15th harmonic THD-V can be monitored

• Cosine value can be monitored

• Power factor value can be monitored

• Automatic fan output

• Equal aging in steps (in some compensation programs)
