Step switch 0-1-2-3-3-4-5-6-6-7 degree rotary switch, 1-pole, 10-160A

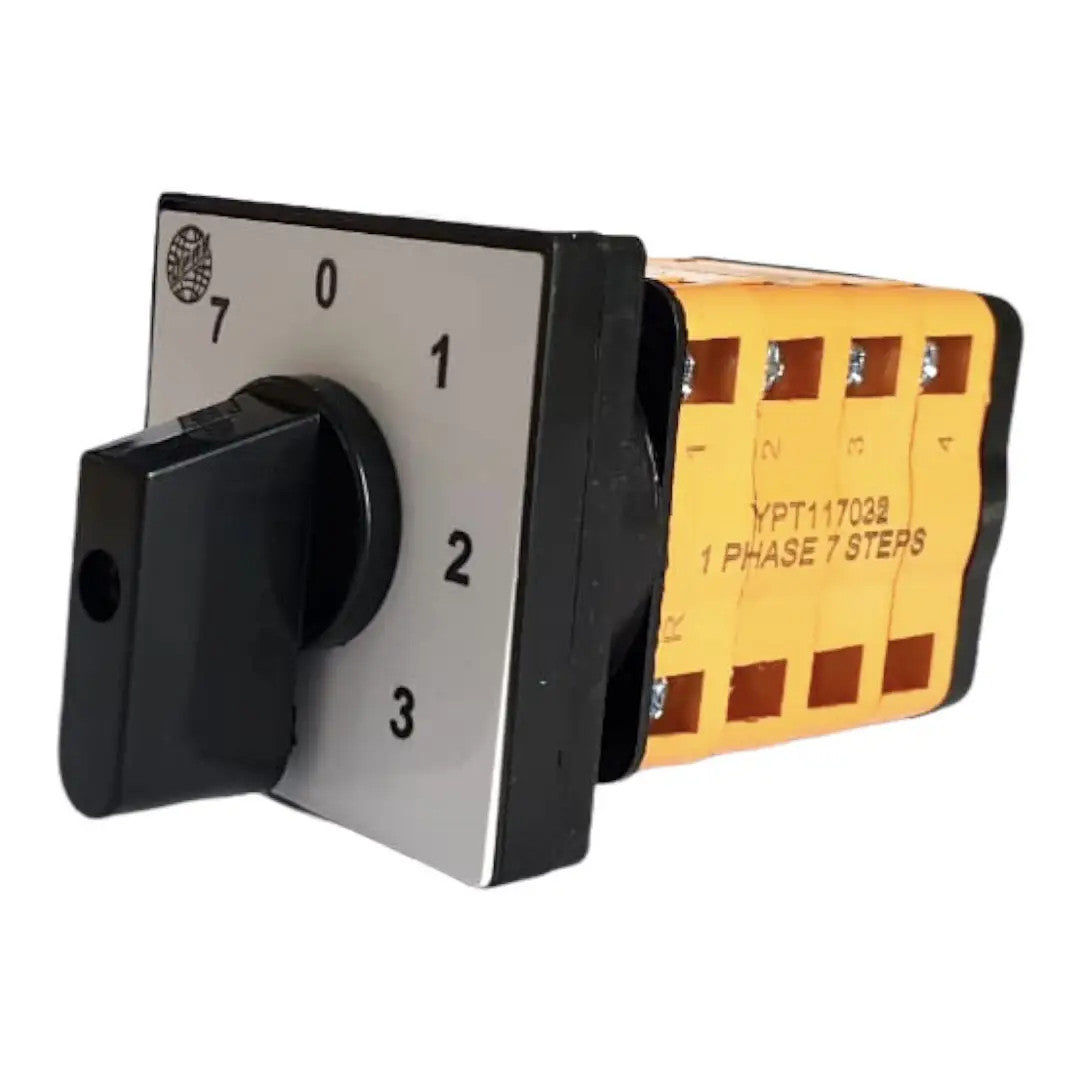

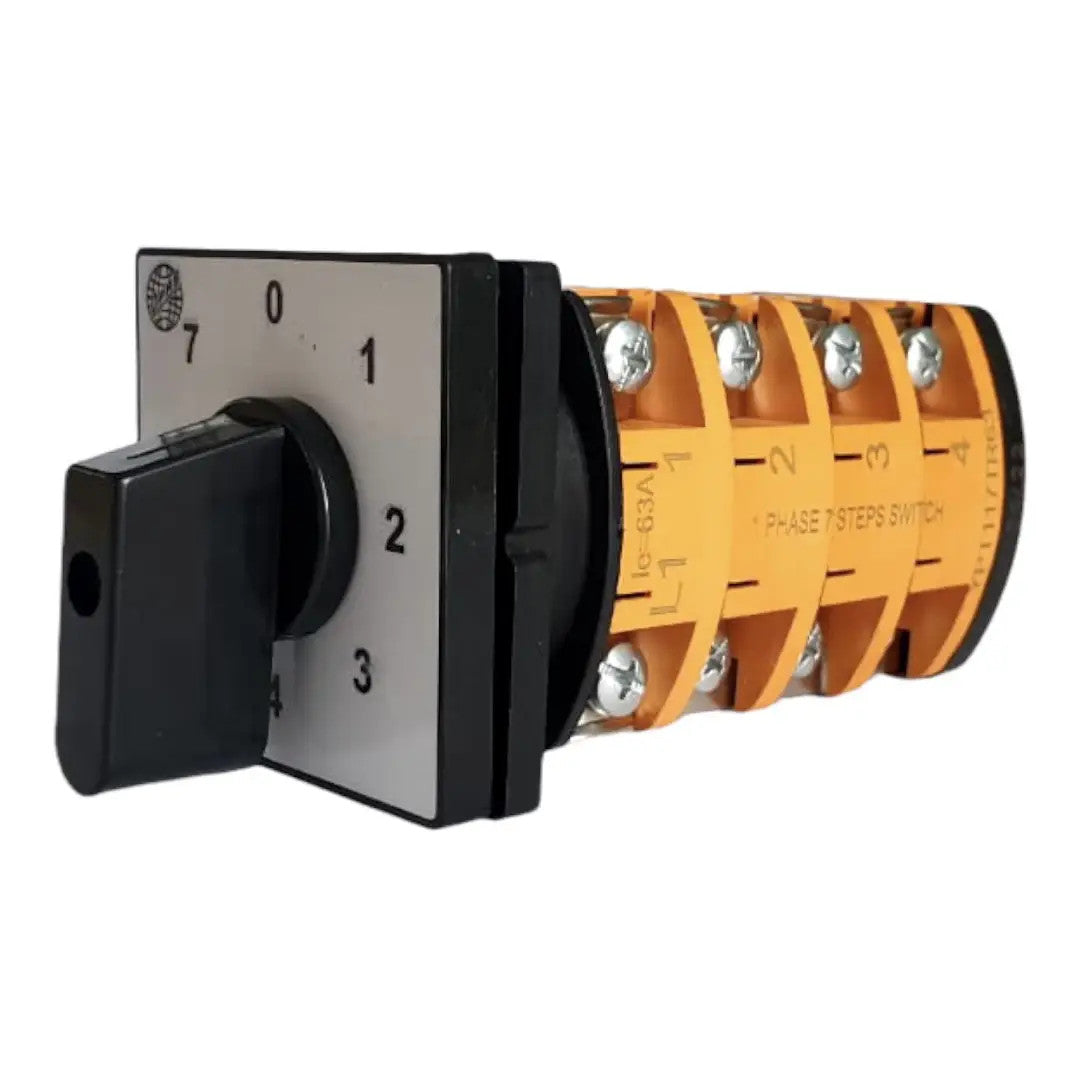

Step switch 0-1-2-3-4-5-6-7, rotary switch, single-pole, 10-160A, model YPT117 manufacturer OPAŞ (Turkey)

• 10A, 16A, 25A, 32A, 40A, 63A, 100A

The 0-1-2-3-4-5-6-7 step switch can be used, for example, to turn on multiple devices/modes/processing program stages, etc.

Package switches are designed for manual switching of low-voltage circuits. They are used for making main and control circuits, switching electric motors and other low-power devices on and off. The advantages of this series of switches are compact size, electrical and mechanical durability.

The multi-position scheme 0-1-2-3-4-5-6-7 is used to switch between different operating modes of devices (movement speed, heating temperature).

Technical specifications:

• Articulated construction.
• Device type: rotary switch

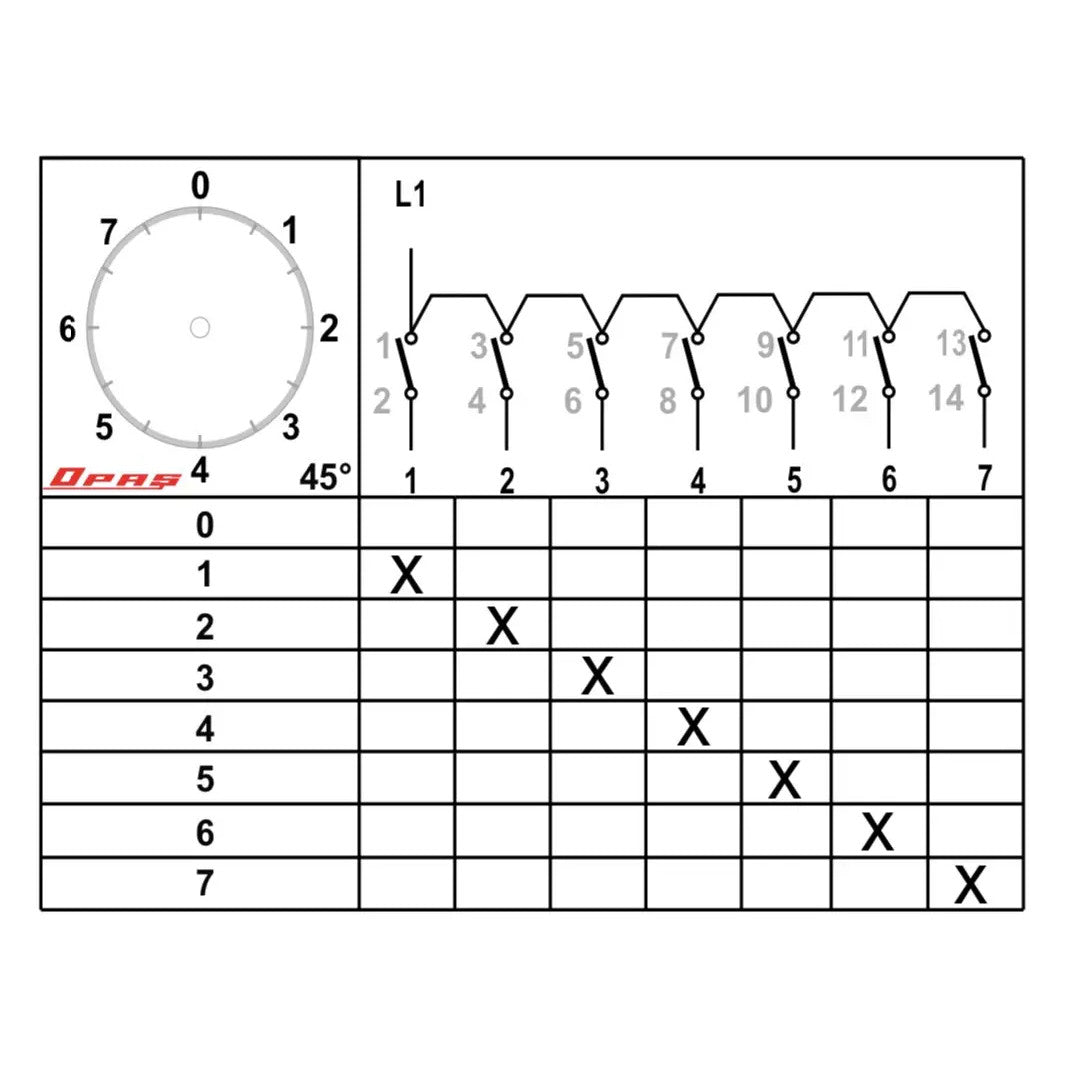

• Switching scheme: 0 - 1 - 2 - 3 - 4 - 5 - 6 - 7
• Number of poles: 1
• Type: built-in
• Number of phases: single-phase
• Protection: None
• Dust and water resistance rating: IP20
• Operating temperature range: -30 to +55°C
• Manufacturer.
• Country of manufacturer: Turkey
• Number of positions: 8
