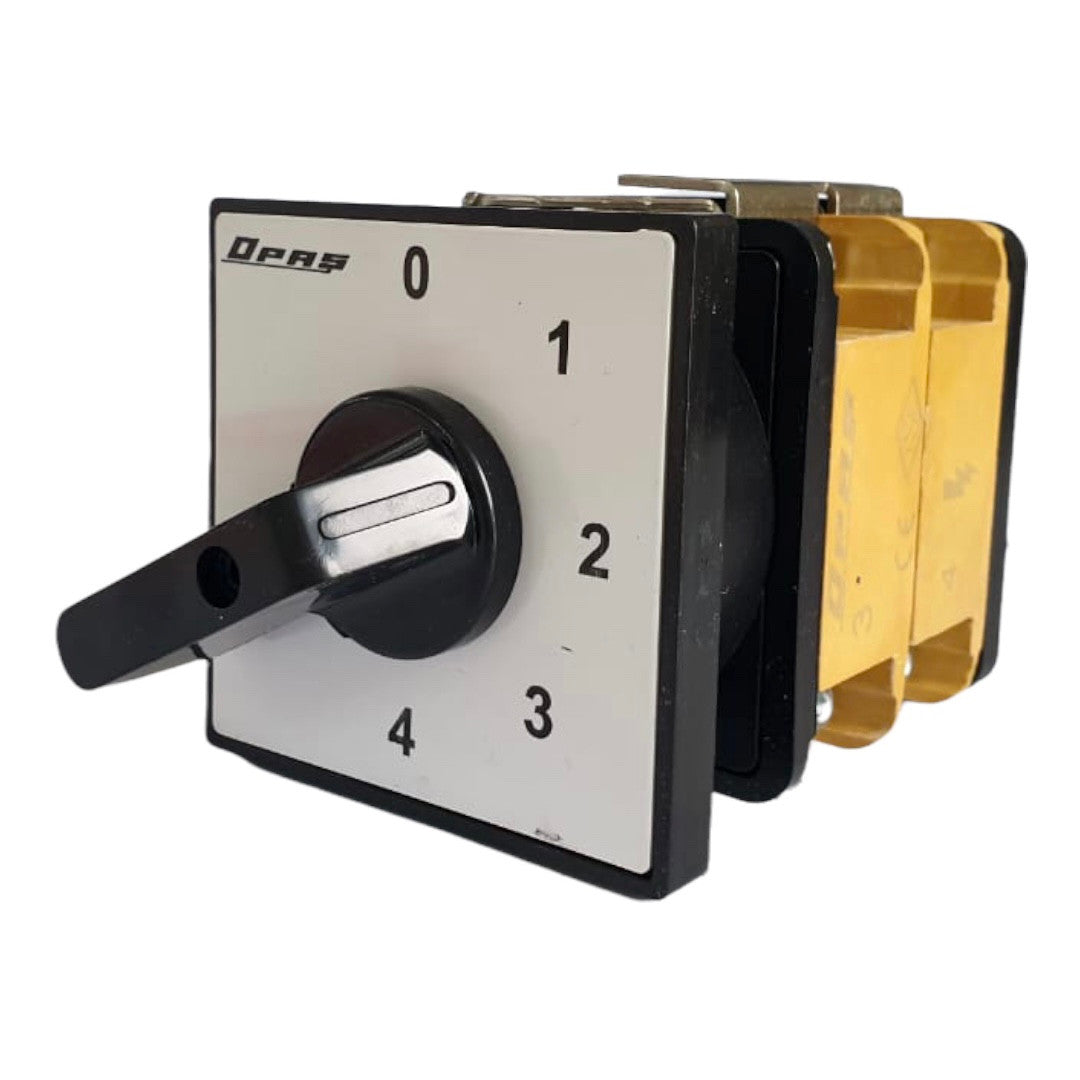

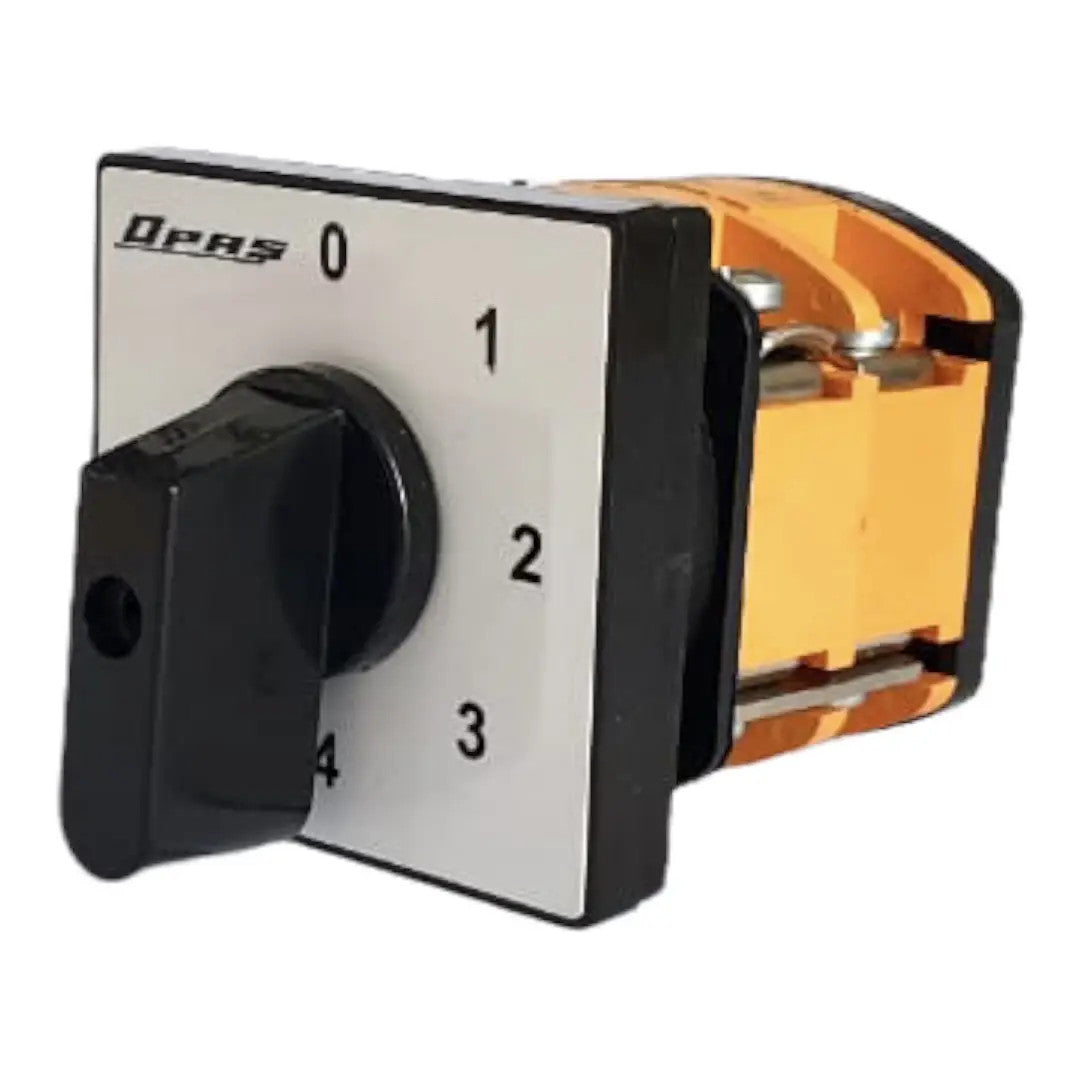

Step switch 0-1-2-3-4 degree rotary switch, 1-2 poles, 10-160A

Step switch 0-1-2-3-4, rotary switch, 1-2 pole, 10-160A, YPT114, manufacturer OPAŞ (Turkey)

• 10A, 16A, 25A, 32A, 40A, 63A, 100A, 125A, 160A

The 0-1-2-3-4 step switch can be used, for example, to select between a three-phase and a generator to power single-phase electrical devices or to switch on different devices/modes/processing program steps, etc.

Package switches are designed for manual switching of low-voltage circuits. They are used for making main and control circuits, switching electric motors and other low-power devices on and off. The advantages of this series of switches are compact size, electrical and mechanical durability, and high switching capacity.

The multi-position scheme 0-1-2-3-4 is used to switch between different operating modes of devices (movement speed, heating temperature).

Technical specifications:

• Articulated construction.
• Device type: rotary switch

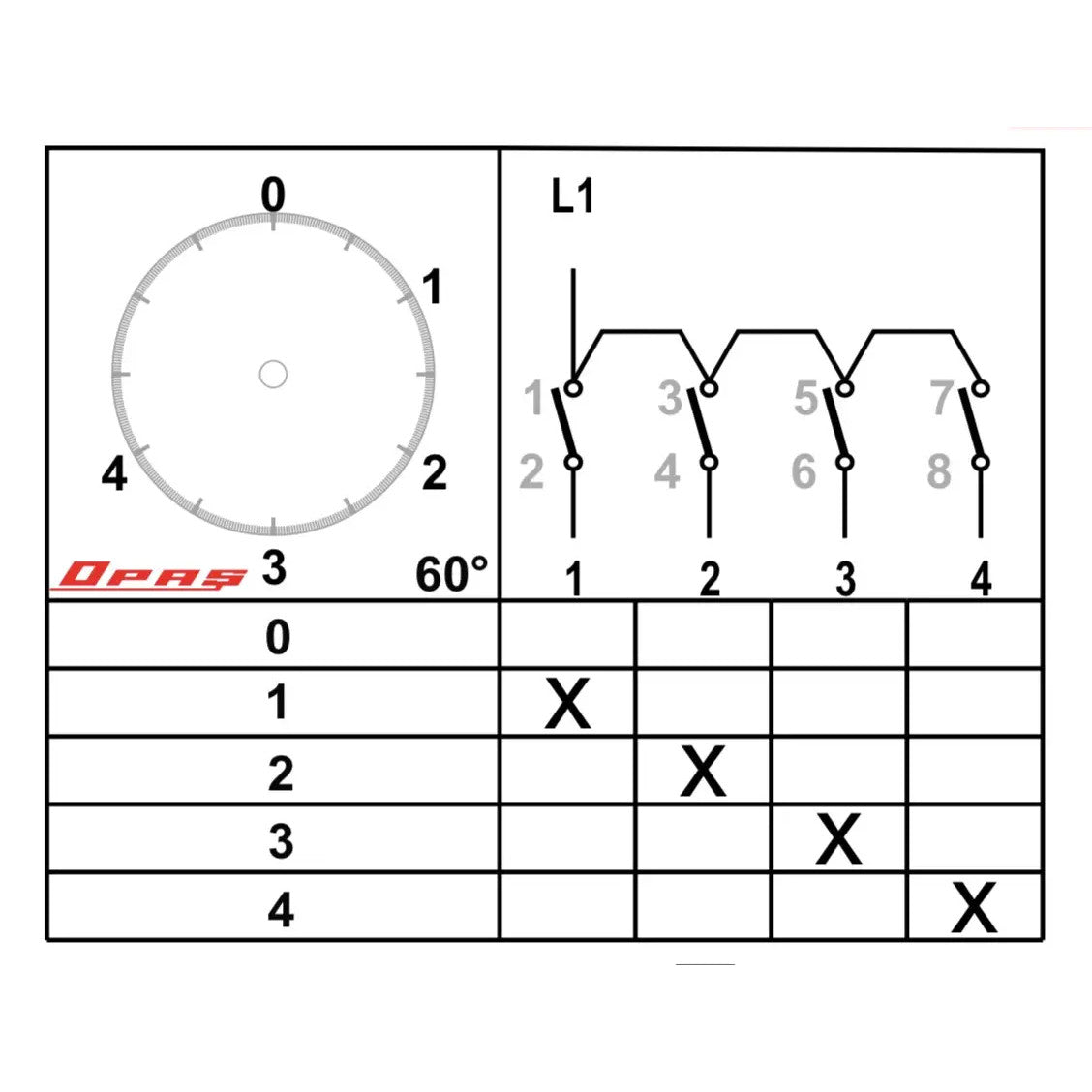

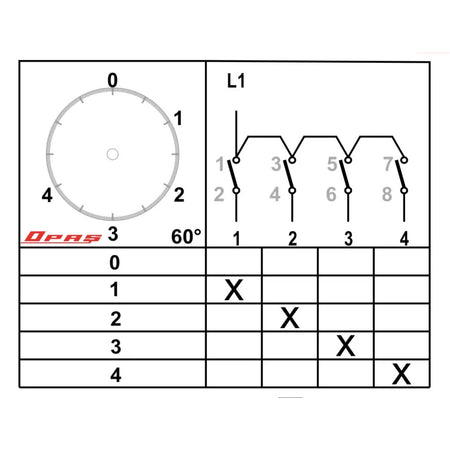

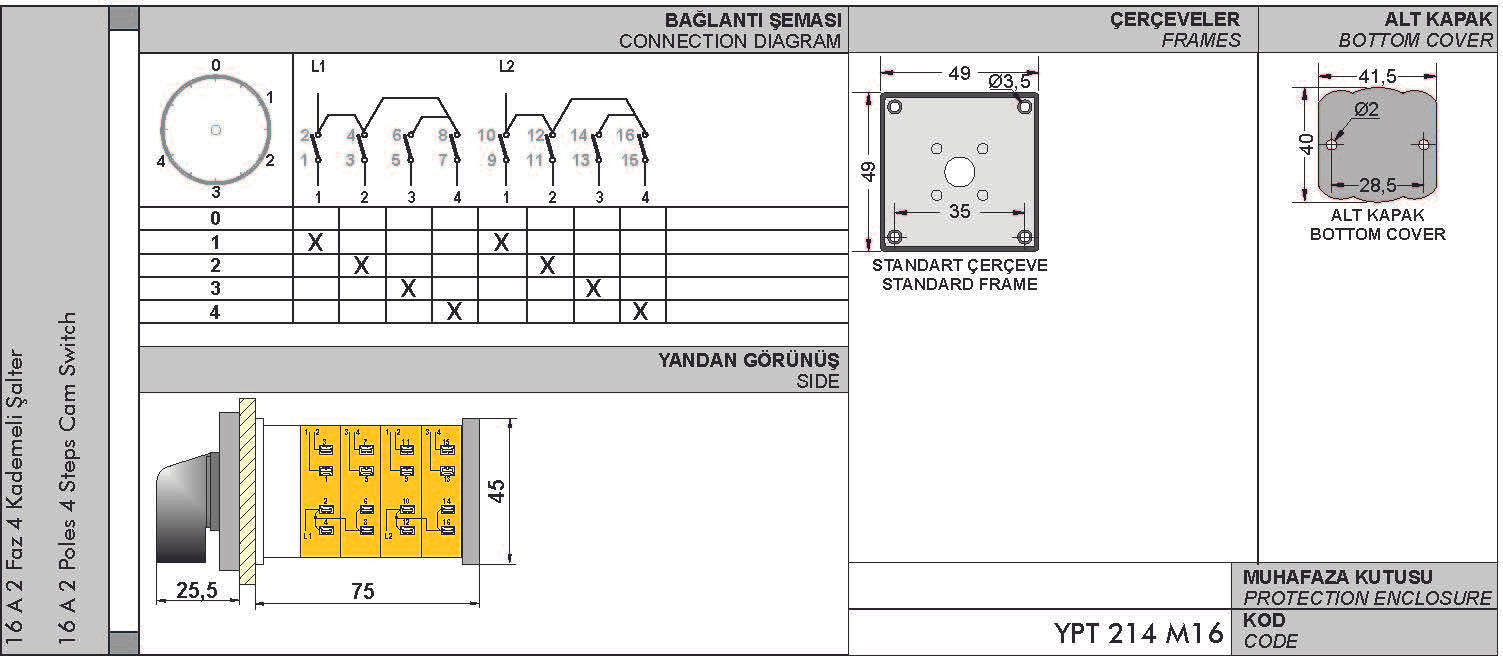

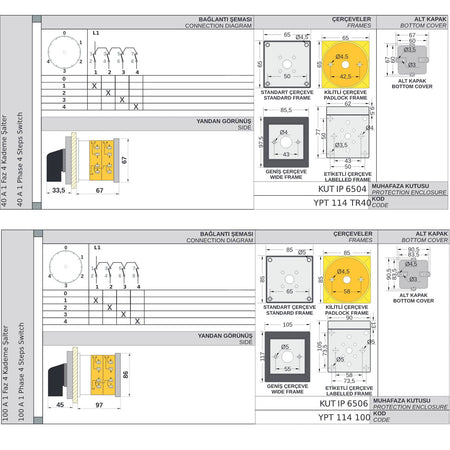

• Switching scheme: 0 - 1 - 2 - 3 - 4
• Number of poles: 1-2 poles
• Type: built-in
• Number of phases: Single-phase
• Protection: None
• Dust and water resistance rating: IP20
• Operating temperature range: -30 to +55°C
