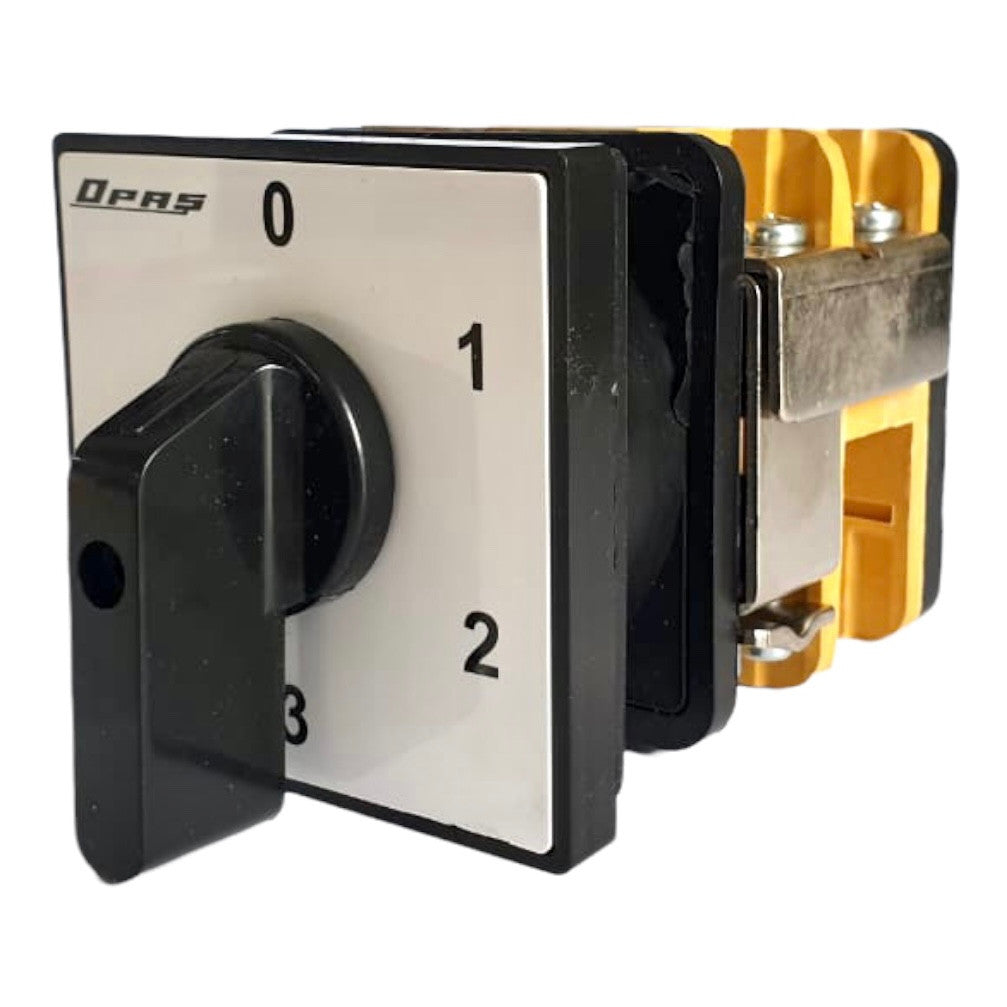

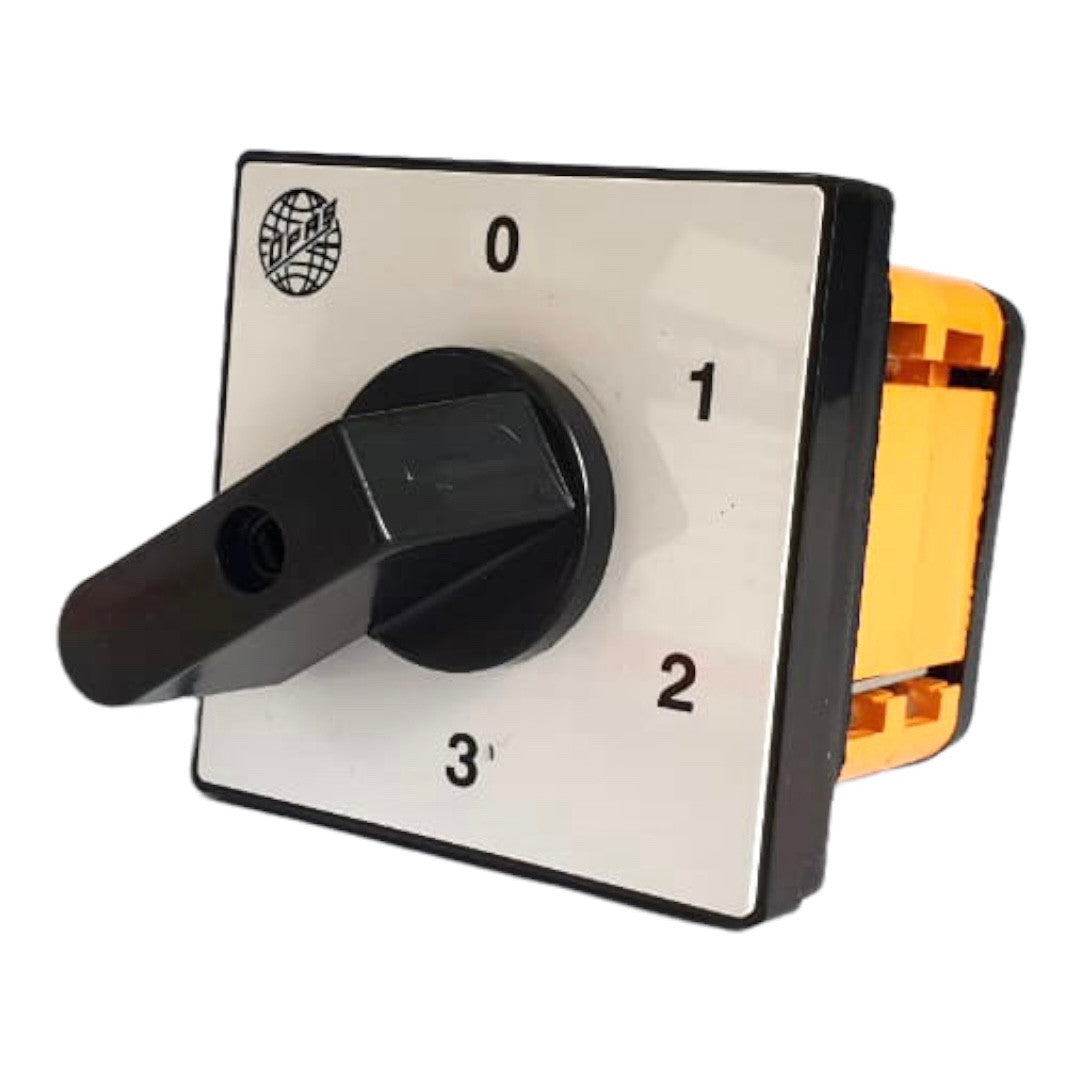

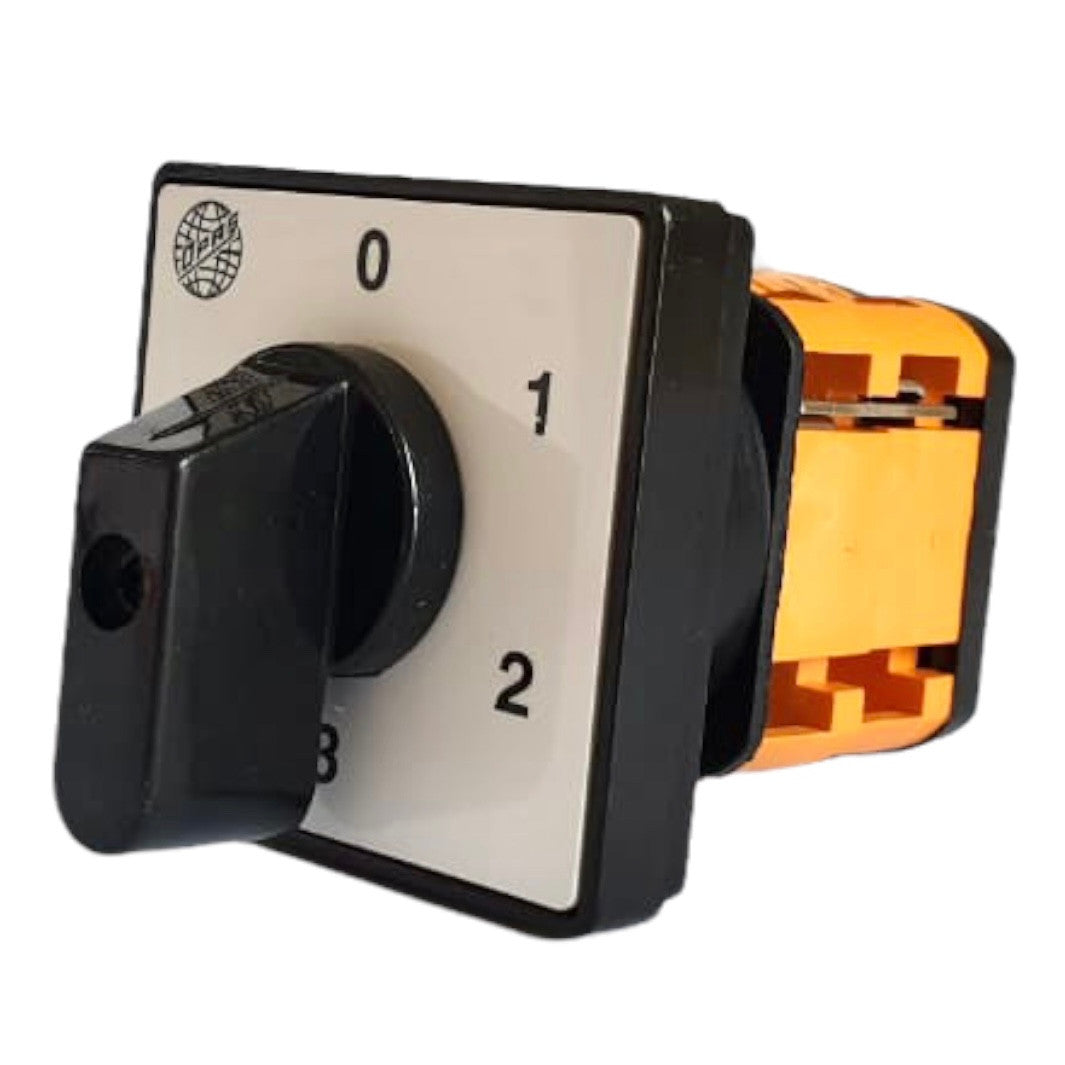

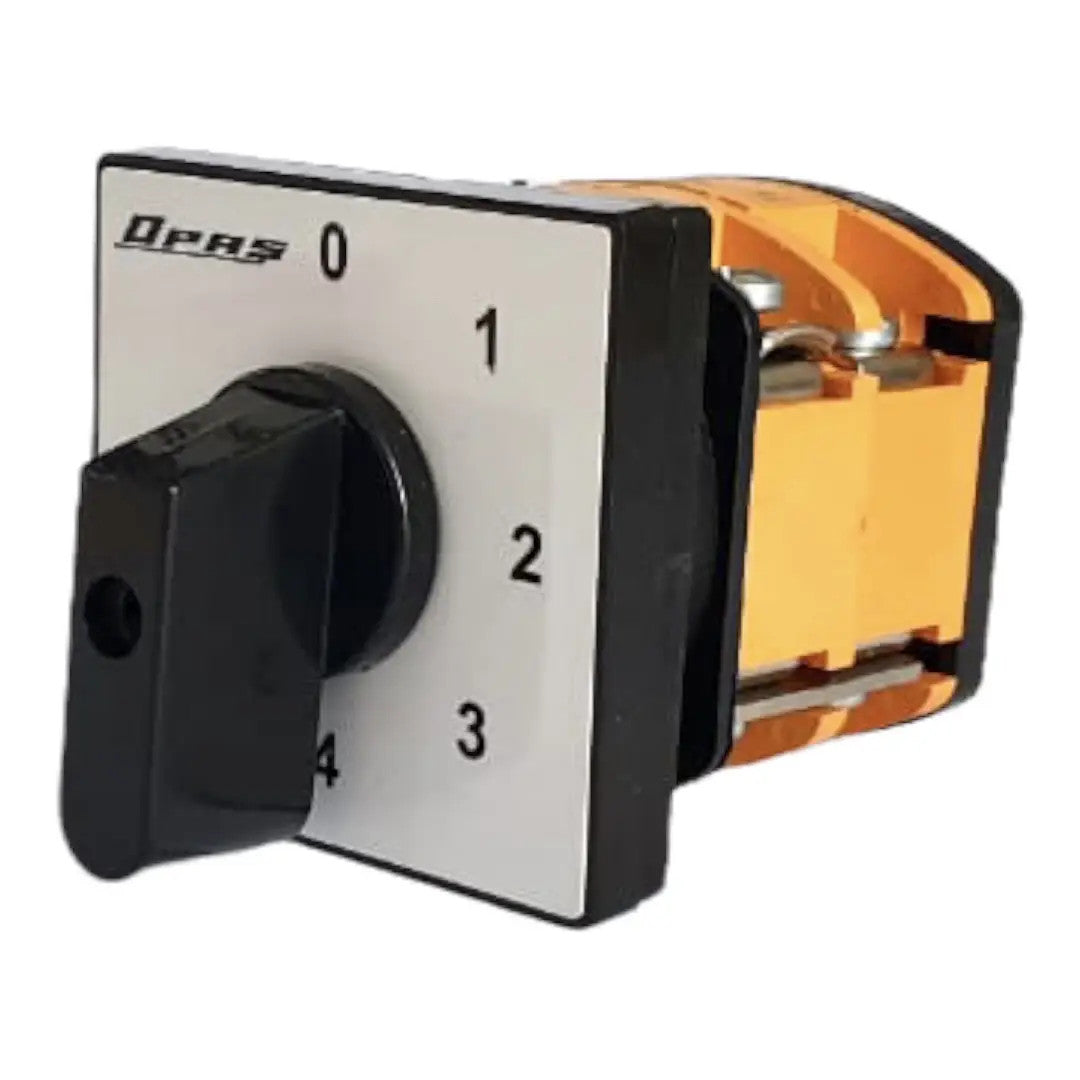

Step switch 0-1-2-3 degree rotary switch

Step switch 0-1-2-3, rotary switch, 1-2 poles, 10-160A, YPT113 / YPT213, manufacturer OPAŞ (Turkey)

OPAŞ cam switches are designed for manual switching of low-voltage circuits. They are used to create main and control circuits, to switch electric motors and other low-power electrical devices on and off. They are characterized by their compact size, high electrical and mechanical durability.

Main features

• Rotary cam switch for low-voltage circuits

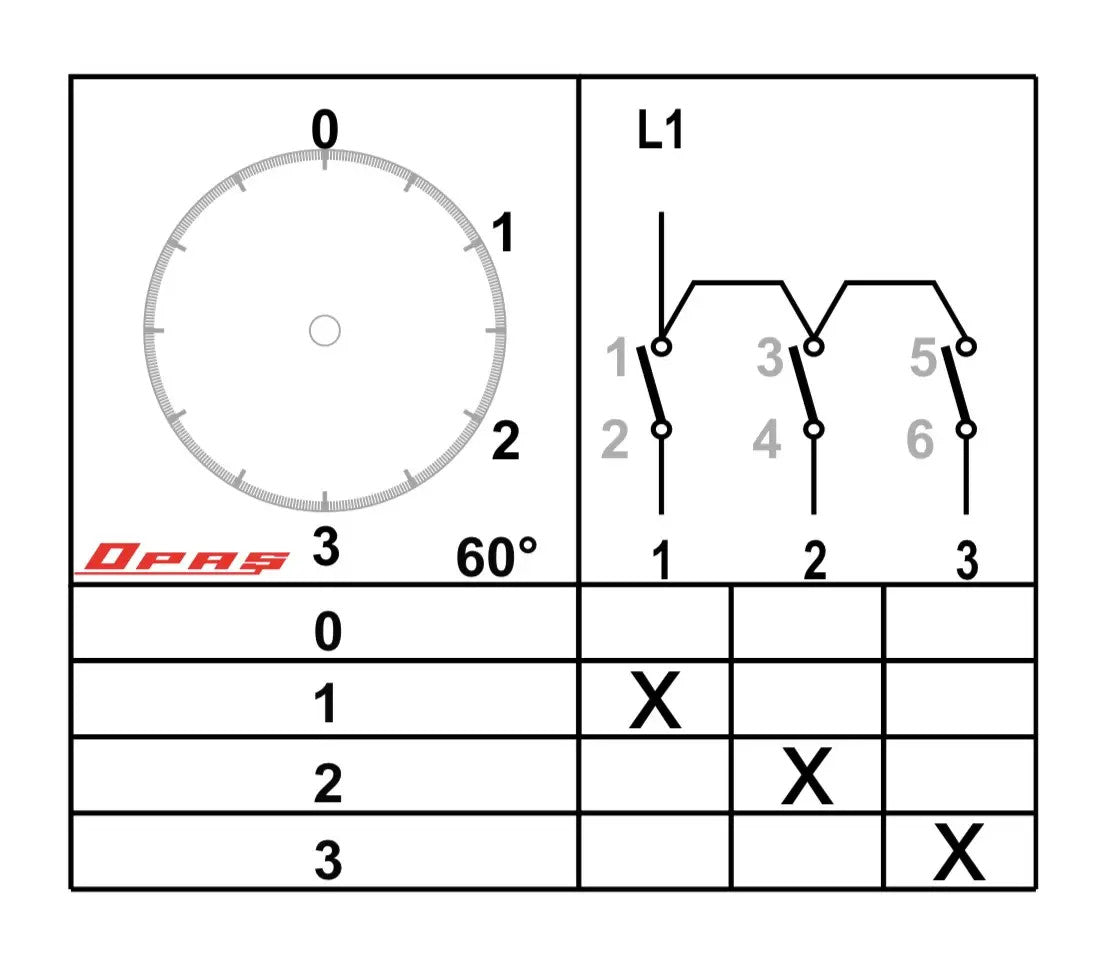

• Wiring diagram 0-1-2-3 (multiple operating modes - e.g., speed, heating temperature)

• Designed for built-in installation

• Suitable for single-phase applications

Technical parameters

• Construction: cam switch

• Device type: rotary switch

• Wiring diagram: 0-1-2-3

• Number of poles: 1 (also available in a two-pole version)

• Number of phases: 1

• Locking: none

• Protection rating: IP20

• Operating temperature: -30 to +55 °C

• Rated currents: 10 A, 16 A, 25 A, 32 A, 40 A, 63 A, 100 A, 125 A, 160 A

Usage

• Switching machines and equipment and changing operating modes

• Motor speed regulation

• Control of heating and other electrical devices

• Low-power circuits in industrial and technical equipment
