Bimetallic cooling thermostat / temperature switch NO, switchable, 0-60°C, bimetallic from OPAŞ

Cabinet thermostat (temperature relay, temperature sensor, thermal relay, air temperature control relay) mechanical, with built-in air temperature sensor for DIN rail mounting for connecting a fan or giving a signal when the temperature rises above the set level, one normally open contact (NO contact) PTOT100, 2p, screw terminal, bimetallic thermostats from OPAŞ.

These thermostats are used in systems that maintain a specified temperature using cooling elements such as fans or air conditioners. These systems are used to prevent overheating of equipment installed in electrical cabinets, ATMs, payment terminals, and other outdoor or uncooled rooms.

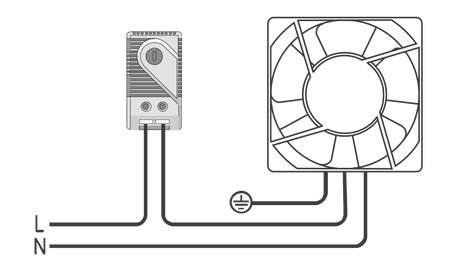

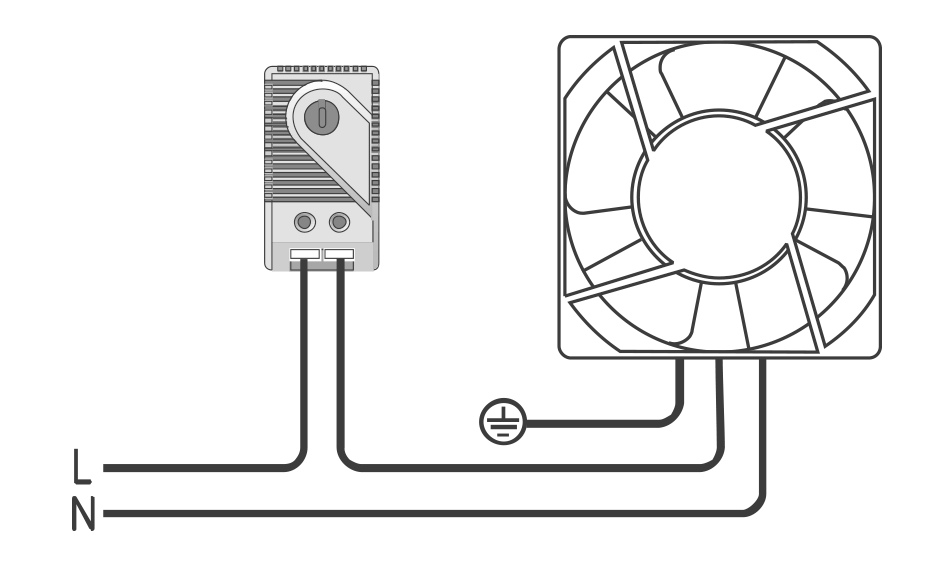

They are used to connect fans, coolers/air conditioners.

Features

PTOT100

Contact type

NO

Setting range

0-60°C

Potentiometer color

Blue

250V AC / 120V AC

15 (2) A

Sensor type

Bimetal

Contact type

Snap Action

Lifetime

> 100,000

Electrical connection

2-pole terminal, screw terminals

Plastic material

UL94 V0 ABS flame retardant

Degree of protection

IP20

Operating temperature

-25 / +80 °C

Storage temperature

-45 / +80 °C

Installation

DIN rail 35mm

Dimensions HxWxD

61x34x38 mm

Weight

43g
