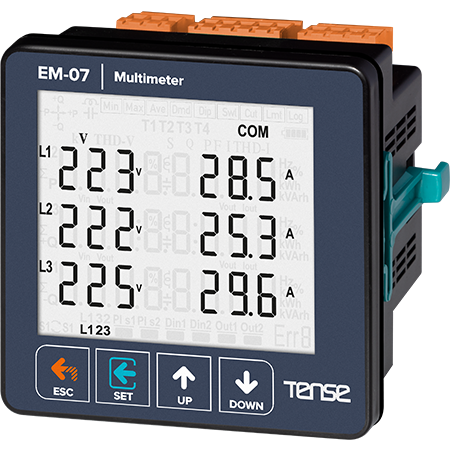

Digital panel multimeter for currents, voltages, frequencies, power, RS485

Multimeter - multifunctional digital panel meter, current, voltage, frequency and total power indicator, relay output and ModBus RTU manufacturer TENSE (Turkey)

Main advantages:

• RS485 Modbus RTU (1200-38400bps).

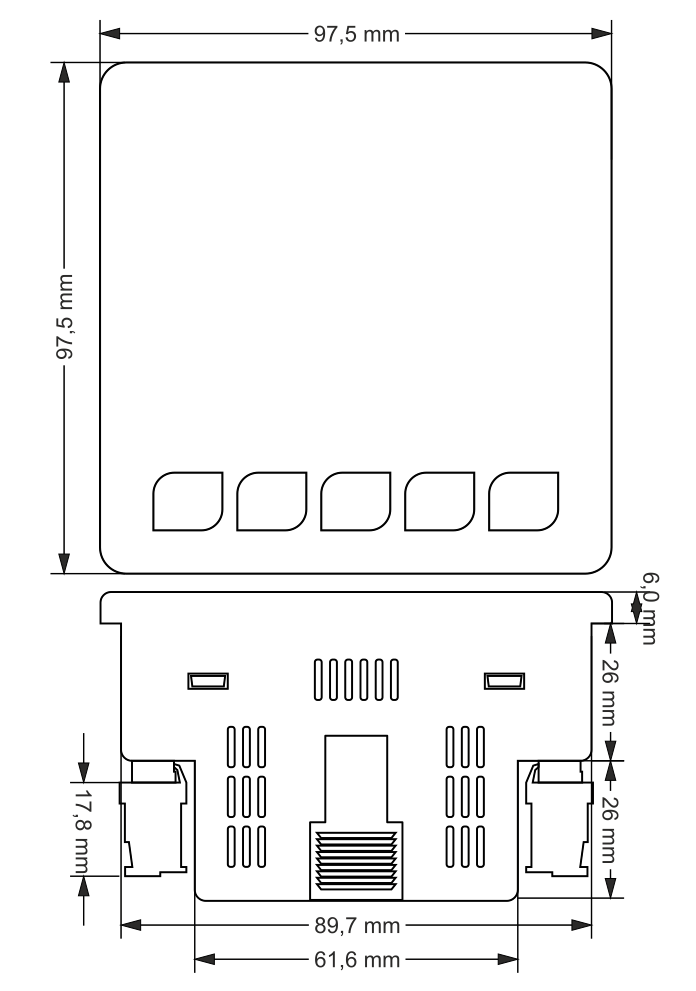

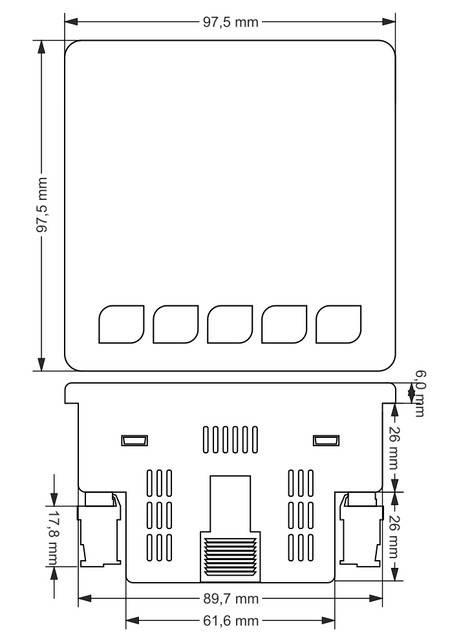

• 71.5 x 61.5 Custom Glass LCD Design

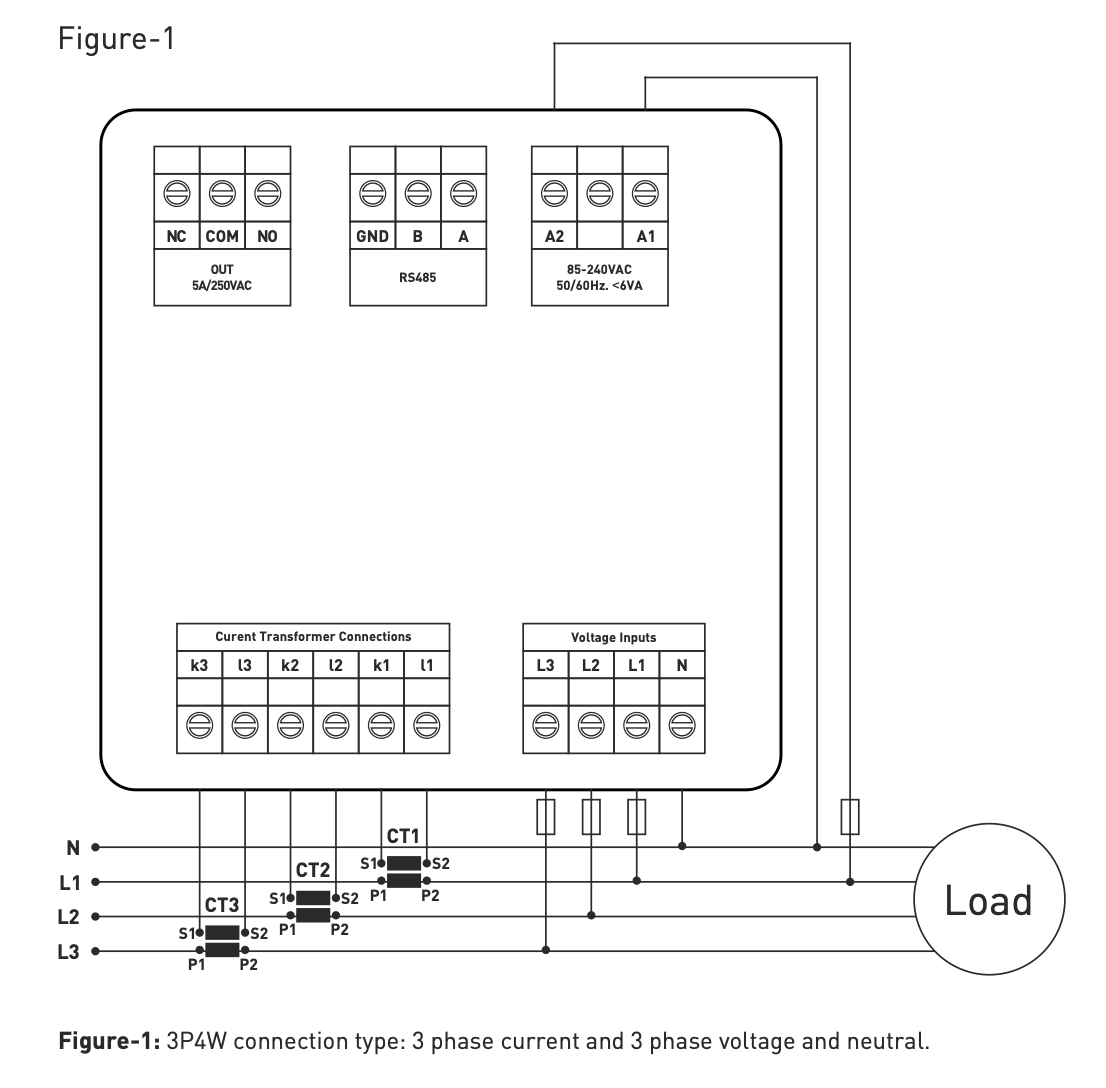

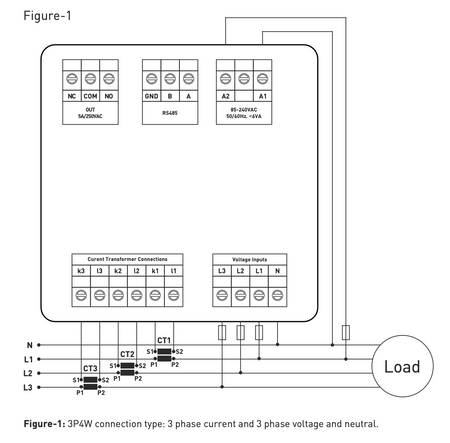

• 3-phase voltage transformer and 3-phase current transformer.
• Shows V1, V2, V3, V12, V23, V31, I1, I2, I3, S1, S2, S3, F1, F2, F3.
• Shows the minimum, maximum and average values of V1, V2, V3, V12, V23, V31, F1, F2, F3.
• Shows minimum, maximum, average and settings I1,I2,I3,S1,S2,S3 High/low voltage, current, frequency (adjustable) Phase-neutral or phase-phase protection (adjustable)
• 1x relay output
• Protects voltage, current and frequency
• Shows the sequence of phases
• You can delete requirements
• The menu is password protected.

Typically, this multimeter is used with current measuring transformers - 60/5 75/5 100/5 150/5 200/5 250/5 300/5 400/5 500/5 600/5 800/5 1000/5 1500/5 etc. You can buy such transformers in our online store,
