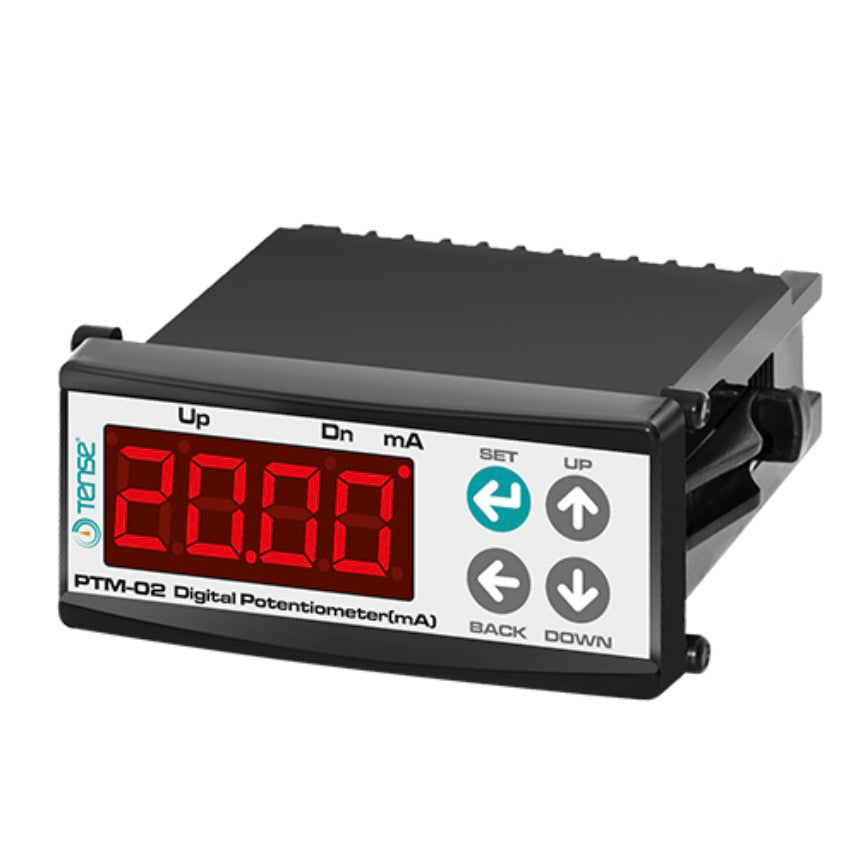

Digital potentiometer current source 4-20mA

Digital Potentiometers are control devices that produce an analog output within the range of 4-20mA values.

• Microprocessor based
• Analog output: 4-20mA
• Menu access and analog output control via front panel keys

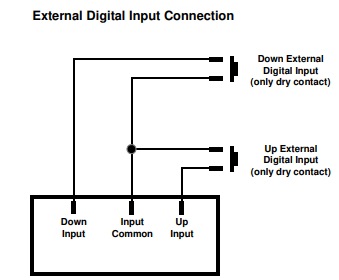

• Analog output control via digital inputs
• Adjustable upper and lower scale levels
• Adjustable upper and lower SET limits
• Separate function selection for front panel keys and digital inputs to control analog output
• Password protection
• SECU setting to enable/disable access to the SET adjustment menu
• High accuracy
• EEPROM memory for saving settings
• Easy connection with plug-in terminals

TECHNICAL SPECIFICATIONS

• Dimensions: 35x77mm
• Panel cutout: 29x71mm
• Display: 4 digits 7 segments
• Analog output: 0-10V or 4-20mA (to be specified at order)
• 0-10V load impedance: >5K
• 4-20mA max. Voltage: <10V
• Resolution: 2mV (0-10V), 4μA (4-20mA)
• Accuracy: ±%1; (Overfullscale)
• User control: Up/down via front panel keys or up/down via digital inputs.
• Digital inputs: dry contact input only
• Power supply: 100..240VAC, 50-60Hz or 24VDC/AC.
• Power consumption: < 6VA
• Humidity: 80% up to 30oC, then decreasing linearly to 50% at 50oC (non-condensing).
• Altitude: < 2000 m
• Protection class: IP20
• Operating temperature: 0 ... 50 oC
• Storage temperature: -10oC ... 60oC (non-icing)
• Weight: < 0.5 kg
