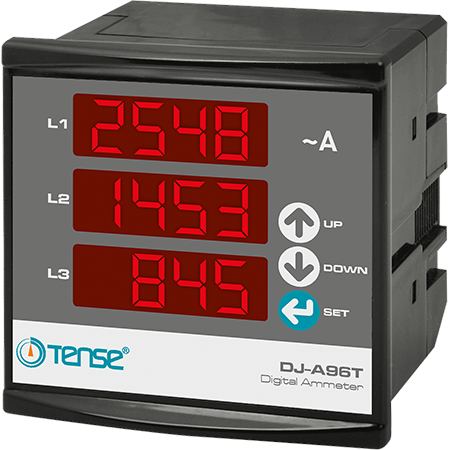

DJ-A96T Three-Phase Digital Panel Ammeter

Ammeter for monitoring current in a three-phase system with current measurement in each phase L1, L2, L3, using external current transformers.

Power supply voltage: 230V AC, device consumption <4VA

Current range: 100mA...5.5A

Current transformer range: 5/5A - 5000/5A

Measurement accuracy +-2%

The package does not include current transformers, you can choose them here.

Easy-to-read 3x4-digit display, height 14mm.

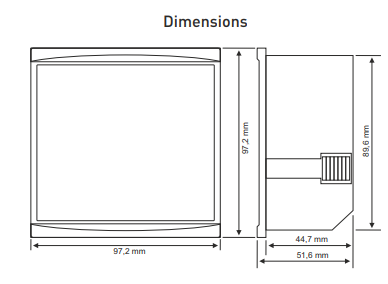

Dimensions 97.2x97.2mm for a 91x91mm cutout, depth 45mm.

Operating principle and settings:

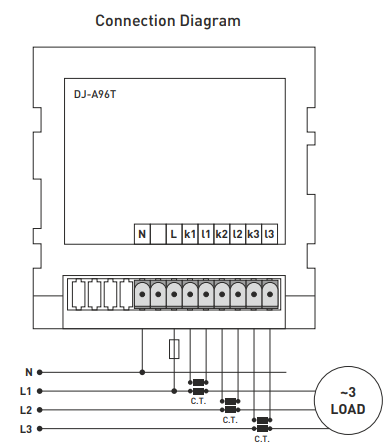

Connect the device according to the electrical diagram.

Connect current transformers with xxxx/5A ratio according to your system's current load. Connect the wires from the current transformers to the device's input terminals "kx" and "lx". The current transformer output to the ammeter can be a maximum of 5 A.

Before starting load measurement, hold down the "Menu" button for 2 seconds after switching on the power.

Adjust the ratio of the transformers used with the "Up"-"Down" buttons.

To save the settings, hold down the "Menu" button again for 2 seconds.

Connect the load and the ammeter will start showing the current.

For safety, the measuring transformer must always be grounded.

Technical features:

Solid state relay type.

Input voltage: 3...32 V DC.

Switchable: 24...480 V AC. Not intended for motors.

Voltage drop: < 3 V

Trigger current: 5 mA

Coil voltage: 3...32 V DC

Maximum current: 25 A

Electrical isolation strength: 2500 V AC
