DIN Rail Thermostat Temperature Controller ON - OFF - Temperature Switches

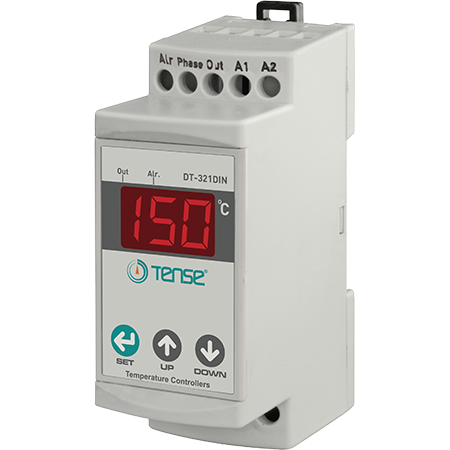

2-point temperature controller / thermostat for DIN rail mounting with external sensor. ON-OFF ON-OFF control mode, measuring range -30ºC ...+150ºC (made in Turkey, TENSE) DT-321DIN

Thermostat controller with external sensor

The DT-321DIN temperature controller is characterized by individual usability and is used to control heating or cooling equipment. Alternatively, the DT-321DIN can also simply be a reading device.

Control and monitoring of thermal processes in heating, air conditioning and ventilation systems, building automation, industrial enterprises.

• Sensor type: NTC

• Relay outputs OUT and ALARM (NO+NC) 250VAC, 2A

• Optional heating and cooling function

• Hysteresis

• Adjustable ON/OFF timers for output OUT in case of sensor failure

• Protection against compression thanks to adjustable switch-off times

• Upper and lower limits for SET and ALARM settings

• Adjustable separate hysteresis for SET and ALARM settings

• OUT switch-on delay in cooling mode

• EEPROM memory for saving settings

• Password protection

• High accuracy

Scope of delivery:

1x DT-321DIN temperature controller
1x NTC (sensor)
1x instruction manual (English)

This simple temperature controller can be used with three types of sensors, which are presented on our website:

1. Type 1 reference: -30°C to 105°C - SKU: NTC-105 (included)
2. reference to type 2: -30°C to 150°C - SKU: NTC-150
3. reference to type 3: -30°C to 150°C (with nut and thread) - SKU: NTC-S-150

Features:

Supply voltage: 100 to 240 VAC, 50/60 Hz.
Power: < 6 VA
Sensor type: NTC
Temperature measuring range: - 30 °C to + 150 °C
Resolution: +/- 1 °C
Measurement accuracy: +/- 3% (°C) over the entire measuring range.
Output: relay (NO + NC), 250 V AC, 2A
ALARM output: relay (NO + NC), 250V AC, 2A
Operating temperature: 0°C to 50°C
Heating/cooling: Ht (heating), Cl (cooling); selectable
Front panel cutout: 66 x 36 mm
Display: 3-digit - 7-segment

Product type: temperature measuring device
Protection class: IP00
Brand: Tense
Country/Region of manufacture: Türkiye
Supply voltage: 100V - 240V ~
Connection type: screw terminals
Installation: DIN rail
Temperature measuring range: -30...+150°C
Temperature relay (NO + NC), 250VAC, 2A, ohmic load
Sensor type: NTC sensor
Gross weight: 0.12 kg
Product weight: 0.10 kg
Dimensions (length × width × height): 8.50 × 7.80 × 36.00 cm
