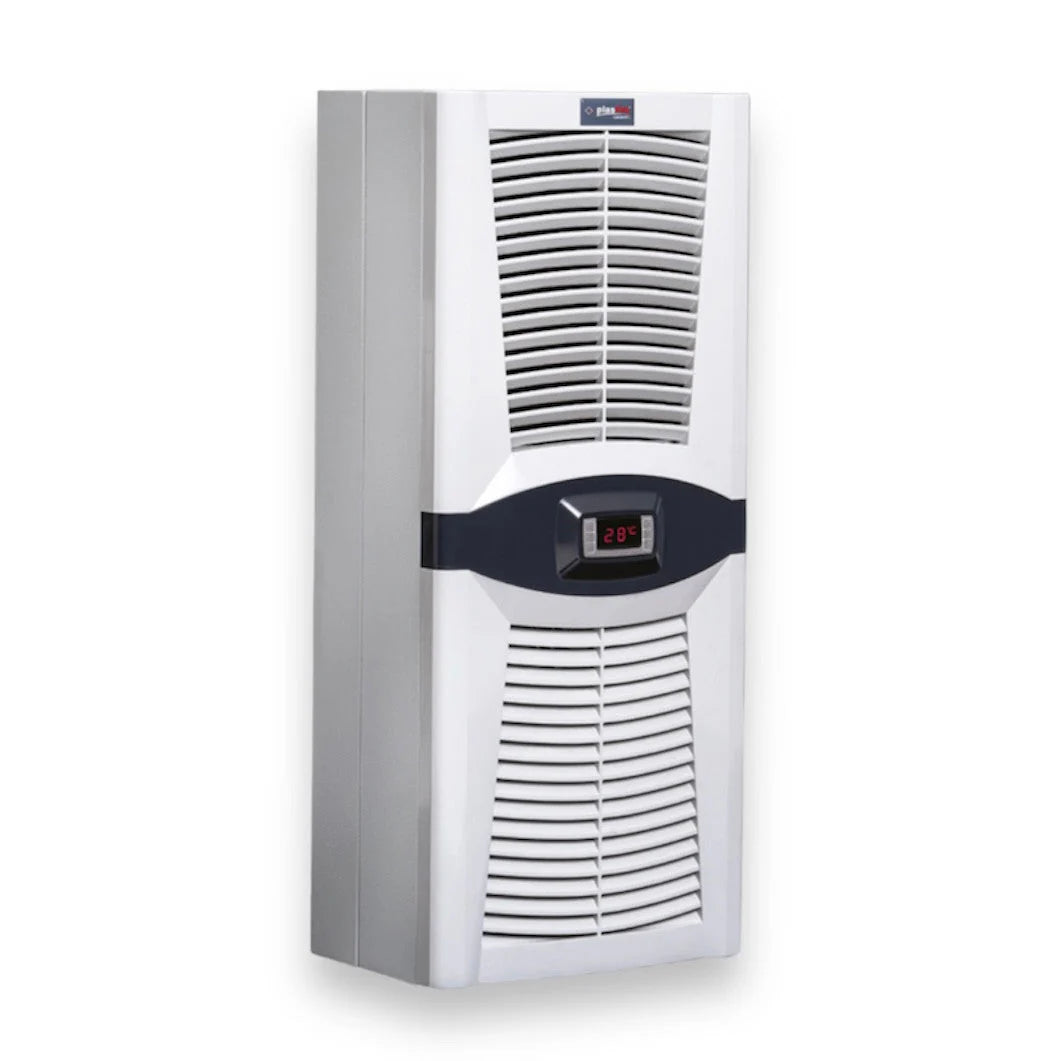

"Design Series" air conditioner for distribution board / cooler 3500 W for side or wall mounting of the distribution board and automation panel.
The PAD3550.01 (PLASTIM) air conditioner for distribution boards is equipped with a HIGHLY modern open-type rotary compressor, a Dixell thermostat, a condensate evaporator, and a limit switch for controlling the opening of the distribution board door.
Everything needed to install the air conditioner in the cabinet is included - gaskets, drain pipe, mounting screws, power plug.
TECHNICAL DETAILS |
PAD3550.01 |
Cooling capacity L35 / L35 |
3500W / 11970BTU |
Operating voltage |
230VAC |
Frequency |
50/60 Hz |
Starting current |
11A |
Operating current |
3.8A |
Circuit breaker |
16A |
Power consumption |
800W |
Operating range |
0-55 °C |
Thermostat factory setting |
35 °C |
Differential |
4 °C |
Max. Air volume Internal circulation |
510 m³/h |
Max. Air volume external circuit |
625 m³/h |
Refrigerant type |
R134a |
Refrigerant quantity |
750 g |
Dimensions |
1200x430x270mm |
Weight |
47kg |
Sound level |
82dB |
Protection class (internal circuit) |
IP 54 |
Protection class (external circuit) |
IP 34 |
Color |
RAL7035 |
Compressor |
HIGHLY/HITACHI |
Compressor type |
Rotary |
Fans |
EBMPAPST |
Mounting method |
Wall mounting |
