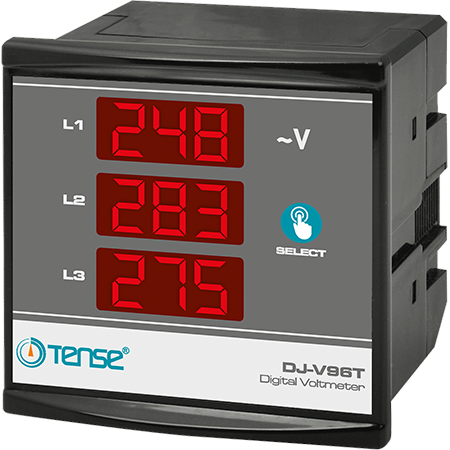

DJ-V96T Panel Mount Digital Three Phase Voltmeter for AC

Three-phase digital panel voltmeter (electronic voltmeter for 3 phases) threaded type AC TENSE, DJ-V96T

A device for simultaneous measurement of phase-to-neutral voltage and phase-to-phase voltage of three phases with output of current voltage values on three displays. The display mode is selected by means of a button on the front panel of the voltmeter.

Device usage and operating principle

The device is designed to monitor phase-to-neutral and phase-to-phase voltages. It also shows the phase sequence.

When the power supply is connected, the voltage values on inputs L1, L2, and L3 are displayed.

When the voltage values for phases L1, L2, and L3 are displayed, pressing the SELECT button will display the voltage values for phases L12, L23, and L31. If the SELECT button is pressed again, the phase sequence will be displayed.

If the phase sequence is correct, the display shows L1, L2, L3 from top to bottom.

If the phase sequence is incorrect, the display shows L1, L3, L2 from top to bottom.

Technical specifications

Operating voltage (Un): 140V - 300V AC

Operating frequency: 50/60 Hz

Power consumption: <4VA

Operating temperature: -20°C.....+55°C

Measurement accuracy: ±1%

Measurement range (L-N): 5V - 300V AC (voltage L1 must be at least 140V).

Measurement range (L-L): 5V - 500V AC

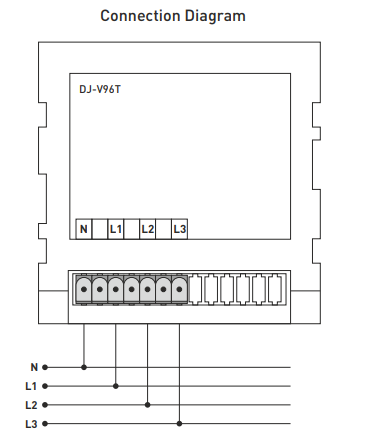

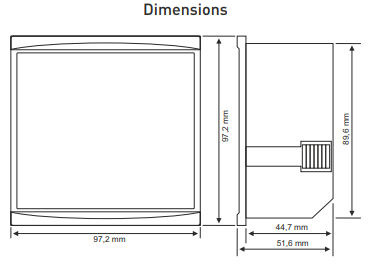

Mounting hole dimensions: 91x91 mm

Connection type: plug-in

Display: 3x3 digits, 14 mm

Weight: max 300 g

Operating altitude: <2000 meters

Cable diameter: 1.5 mm²
