Detachable auxiliary relay Relay module - socket + relay for DIN rail, 6 A, NO+NC

Interface relay with mounting block, interface module: 6A, 12-24V, AC/DC, NO+NC

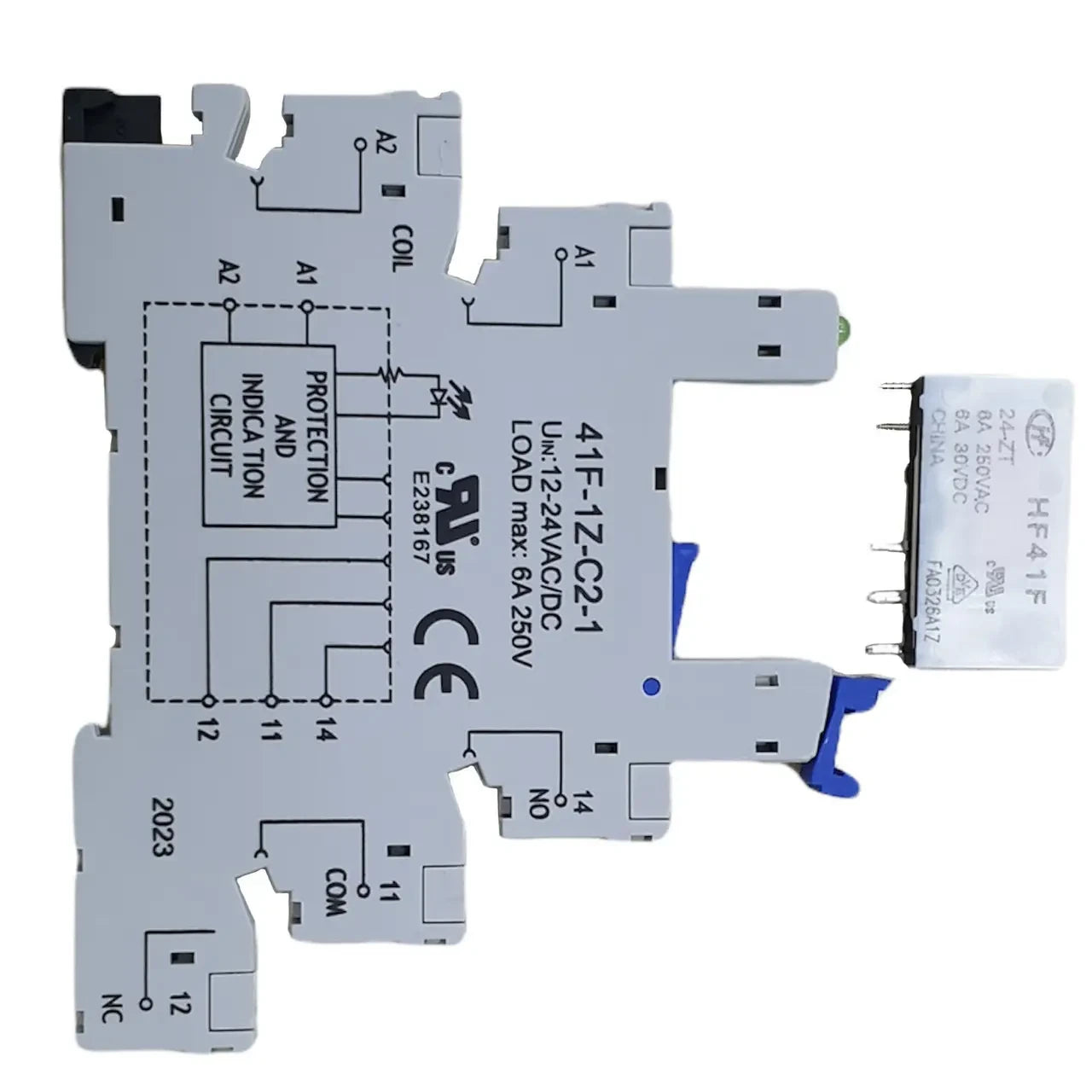

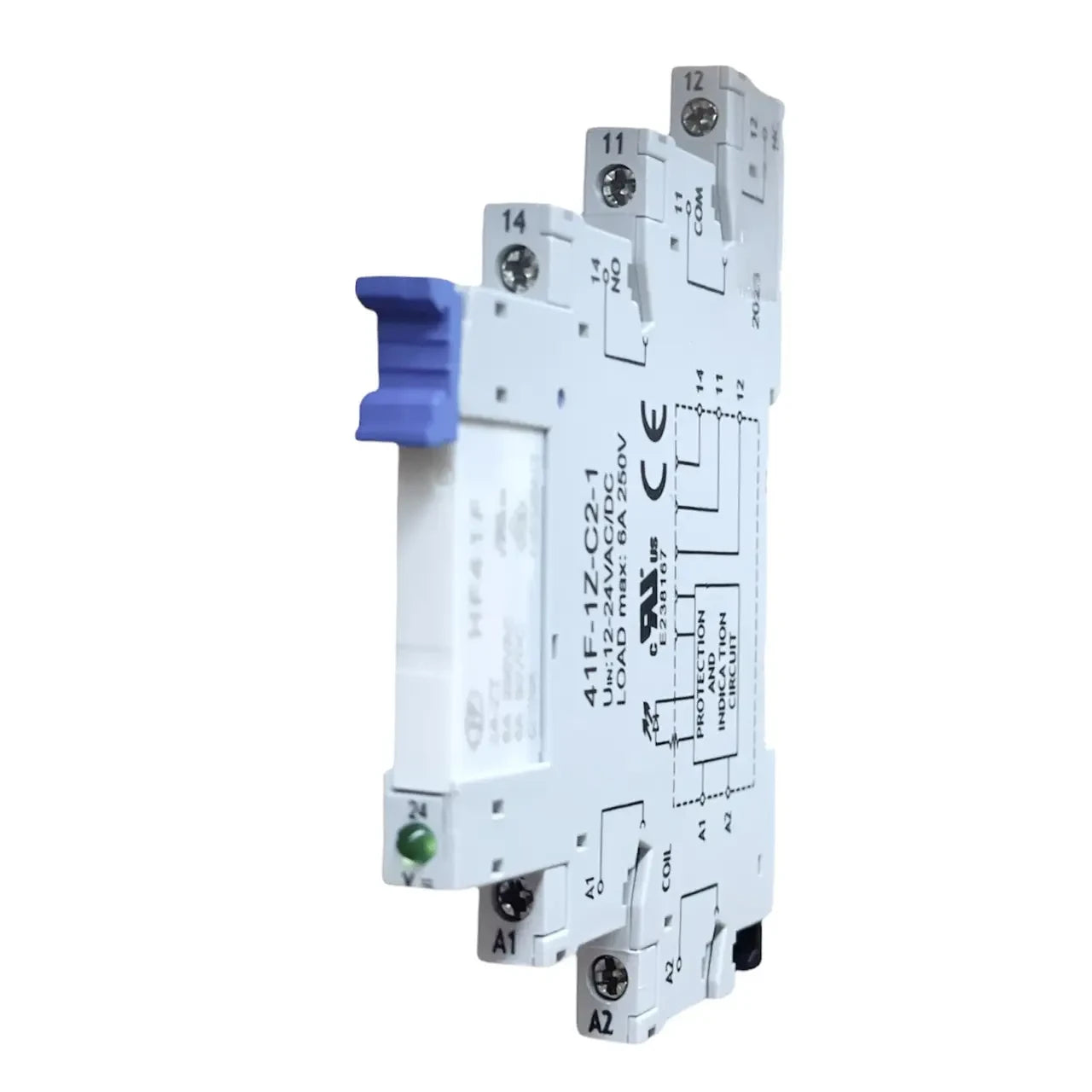

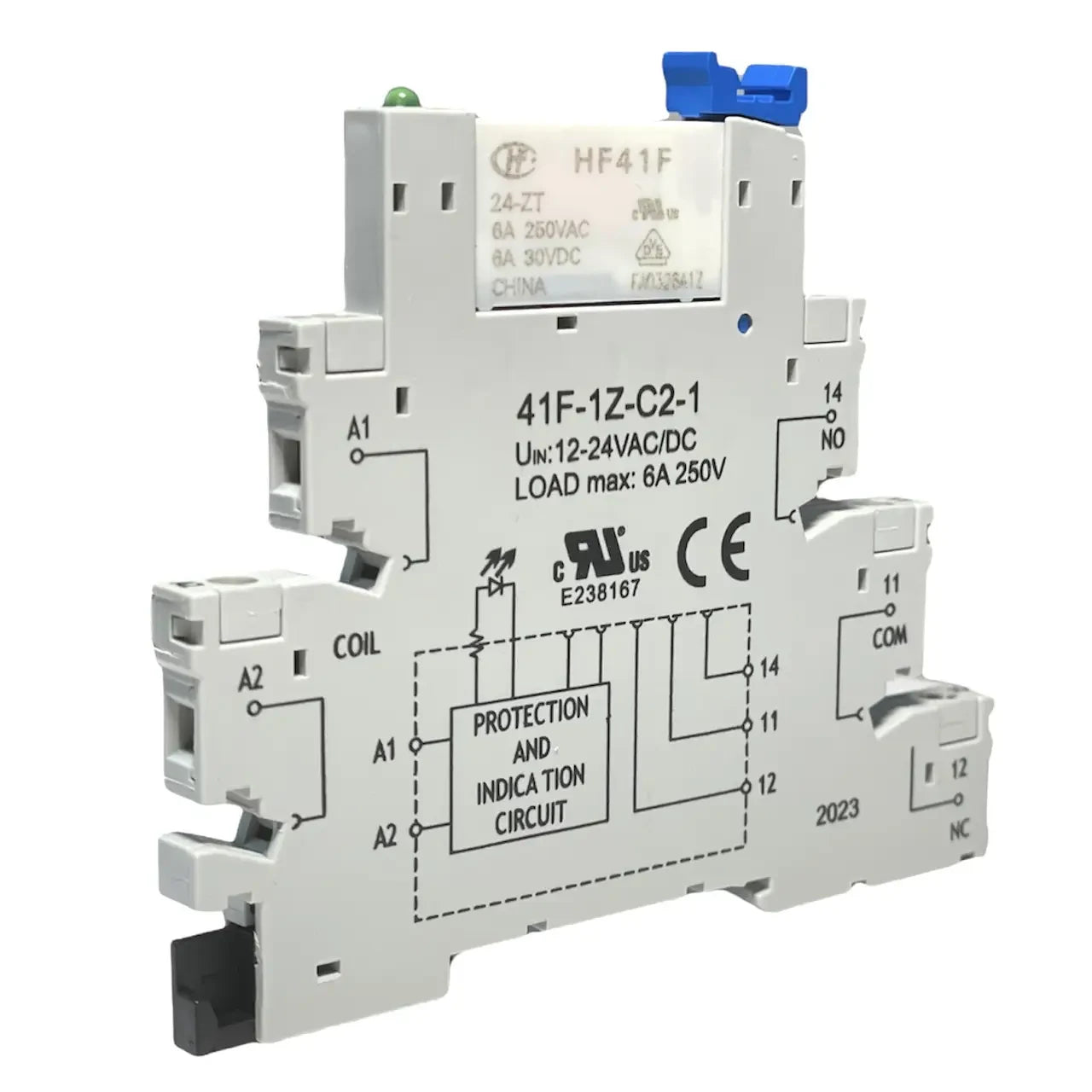

The HF-41F interface block consists of the 41F-1Z-C2-1 base module and an HF41F/24-ZT miniature relay with a socket with power contacts. It is designed for galvanic isolation, increasing switching capacity, and amplifying the control signal from the PLC.

Features and benefits

Ensures galvanic isolation and switching of power and signal circuits.

Mounting on a standard DIN rail.

Replacement of the relay element without removing the entire module.

Space-saving

Built-in LED indicator

Technical characteristics

Rated input voltage: 12-24V, AC/DC

Rated AC operating voltage: 250V

Rated DC operating voltage: 30V

Rated current: 6A

Contacts: NO+NC

Indicator: green relay status LED

Operating temperature: -20...+55 °C

Protection degree: IP20
