Phase control relay FKV-03F

Phase monitoring relay for protection of a three-phase electric motor - monitoring of phase sequence, presence and asymmetry (fixed setting 40%), with neutral conductor, Tense

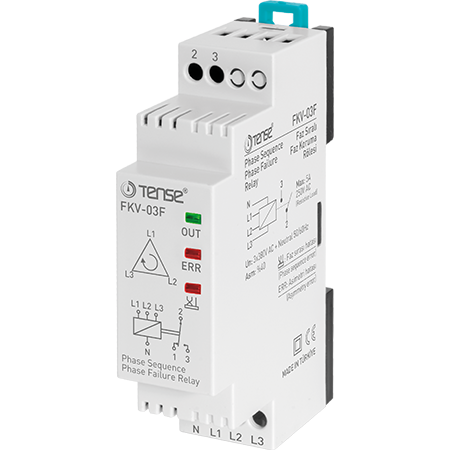

Phase monitoring relay for protection of a three-phase electric motor - monitoring of phase sequence, presence and asymmetry (fixed setting 40%), model FKV-03F, manufacturer TENSE.

Device operation and use

Normal operation (no faults): When the phases are within the correct values and sequence, the relay is energized and the OUT LED is lit.

Asymmetry fault: If any phase is outside the normal range, the ERR LED goes off and the relay is deactivated.

Incorrect phase sequence (Phase Sequence Error): The phase sequence error indicator remains lit, the OUT LED goes off, and the relay is deactivated.

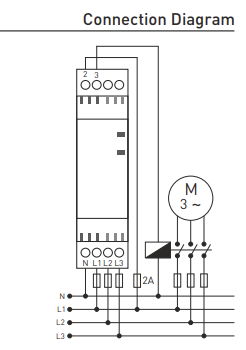

Relay energized: Contacts 2 (COM) and 3 (NO) are energized. Relay deactivated: Contacts 2 (COM) and 3 (NO) are closed.

Technical data

Operating voltage (Un): 3 x 380 V AC with neutral conductor.

Frequency: 50/60 Hz

Power consumption: <6 VA

Operating temperature: -20 °C to +55 °C

Permissible asymmetry: ~40%.

Contact: 5 A, 250 V AC for resistive load

Indicator: 3 LEDs

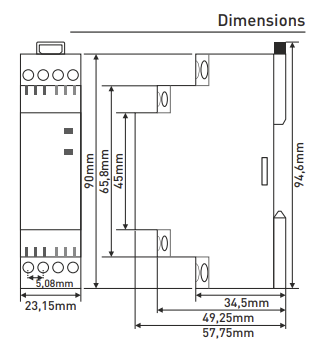

Installation: DIN rail

Weight: <150 g
