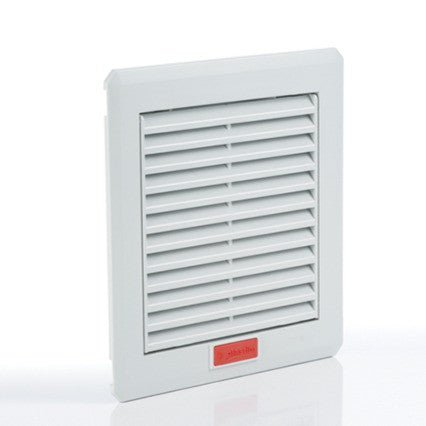

Grille with filter PFI1500, Plastim
Used for drawing outside air into electrical cabinets, ATMs, payment terminals, slot machines, automation cabinets, control panels, gas stations, or for removing heated air from them for cooling. They are typically installed in the side walls of boxes (plastic and metal) to maintain IP.
- External dimensions: 160x160x31 mm
- Mounting dimension: 125x125 mm
- Operating temperature: -10/+70 °C
- Protection class: IP54
- Plastic material: UL94 V0 ABS flame retardant
- Seal: polyurethane gasket
- Color: RAL 7035 (RAL 7032 on request)
- Weight: 0.18 kg
- Installation: Quick fastening
The ventilation grille is equipped with a replaceable filter. This filter cartridge can be easily replaced or cleaned and reused.
Can be used with PTF1500 / PTF1500T products or other fans.
