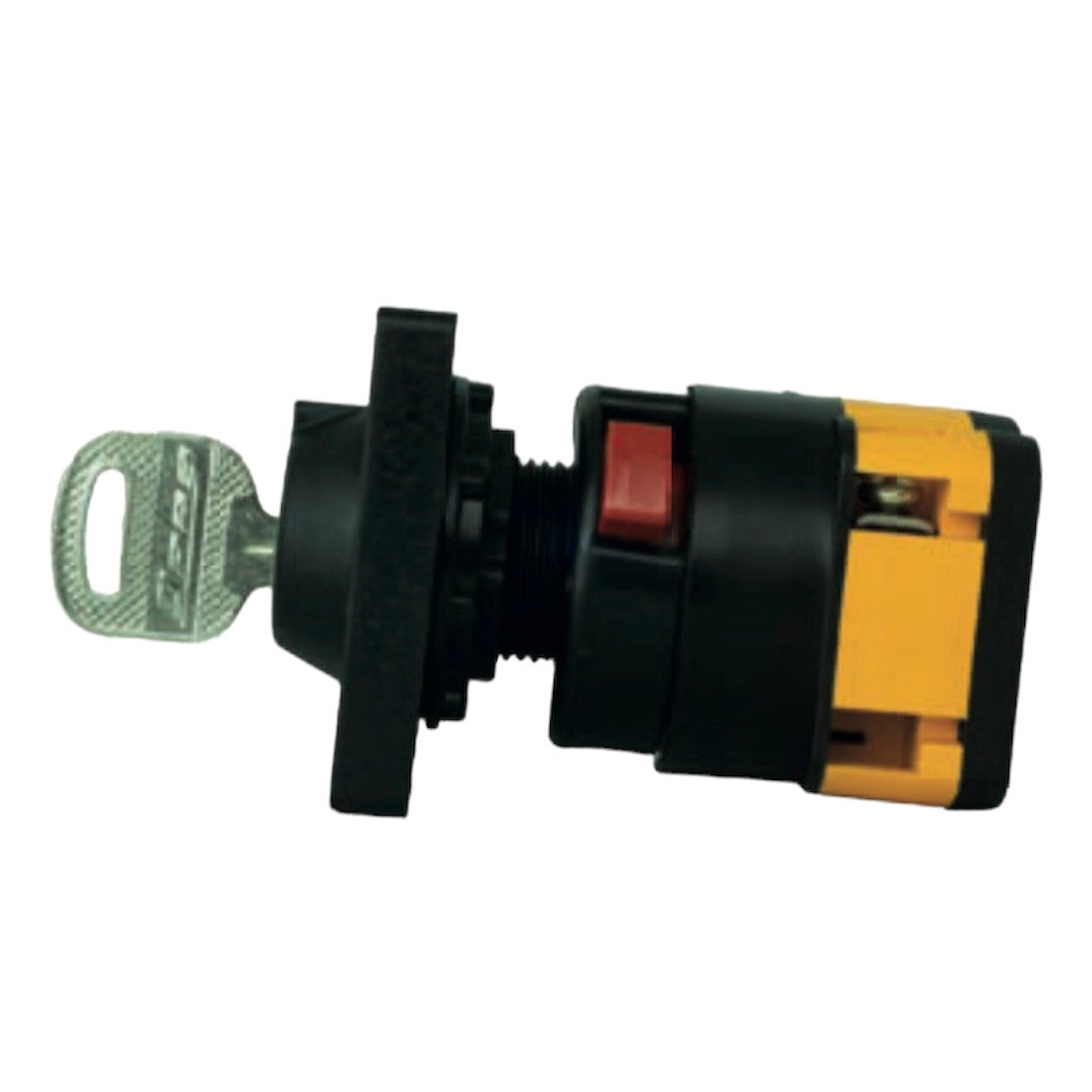

Group switch XL105010 - cam switch with key/lock, OPAŞ

Product description

The group switch XL105010 is a cam switch operated with key/lock, allowing safe switching between different power modes (e.g., main power ↔ backup power) or selecting device modes.

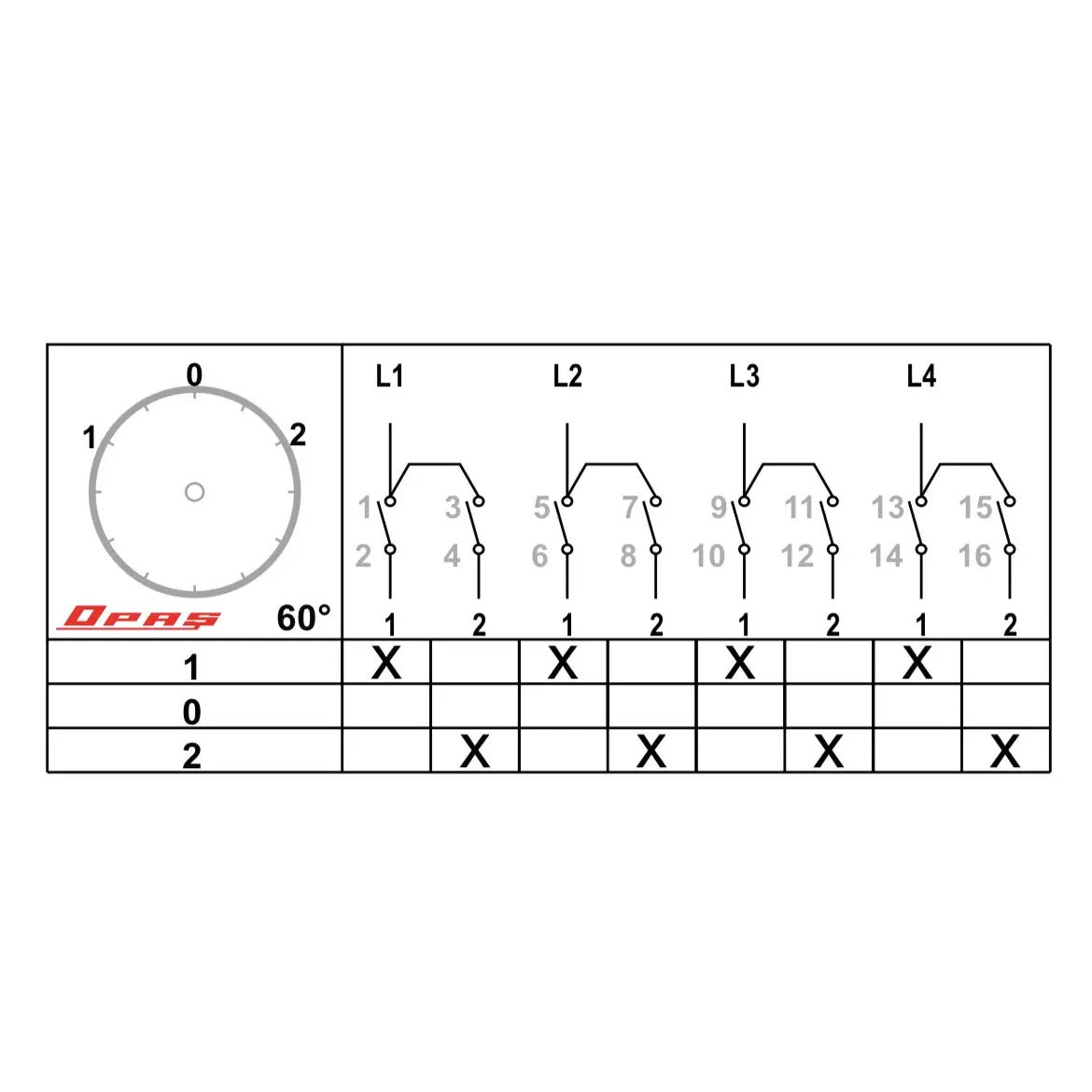

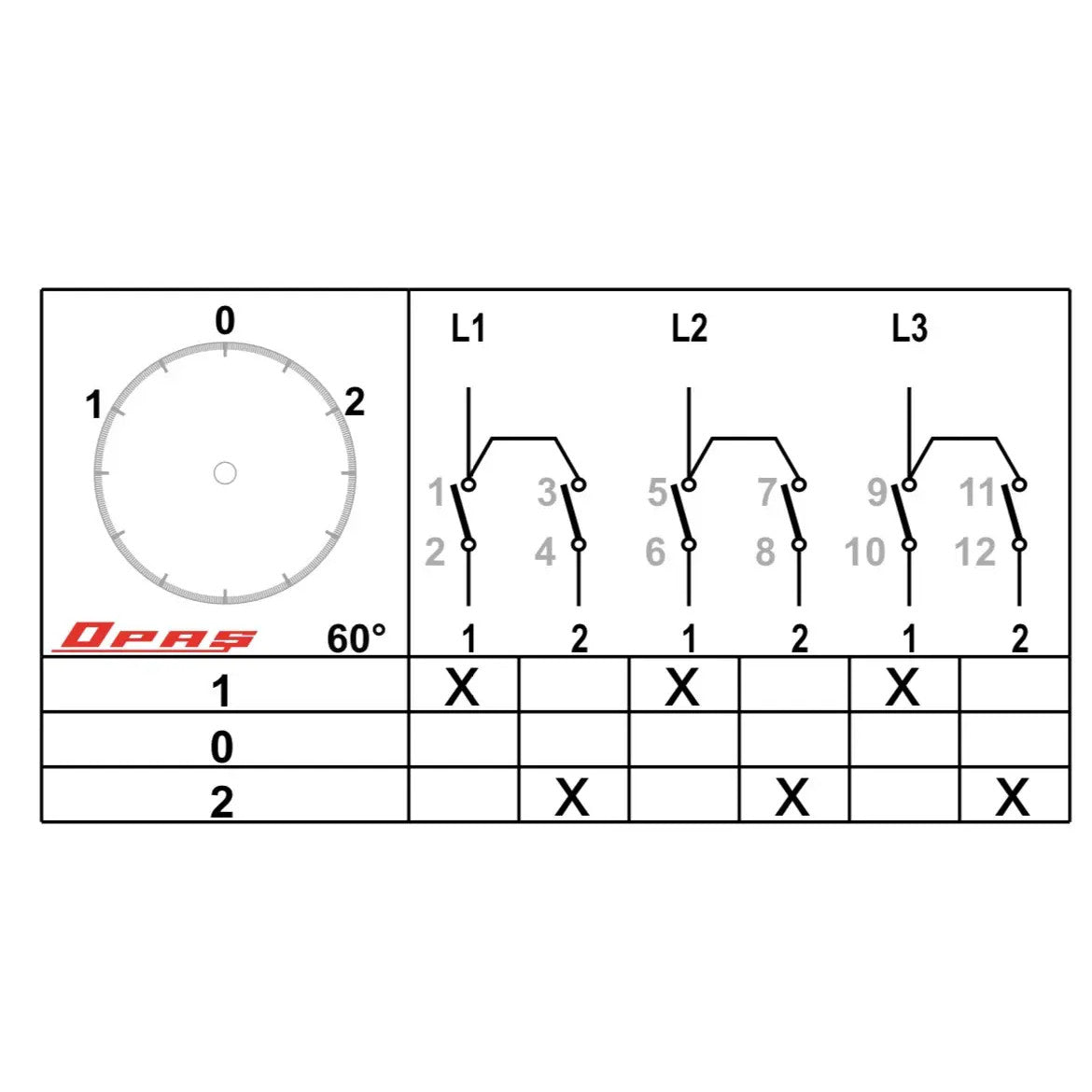

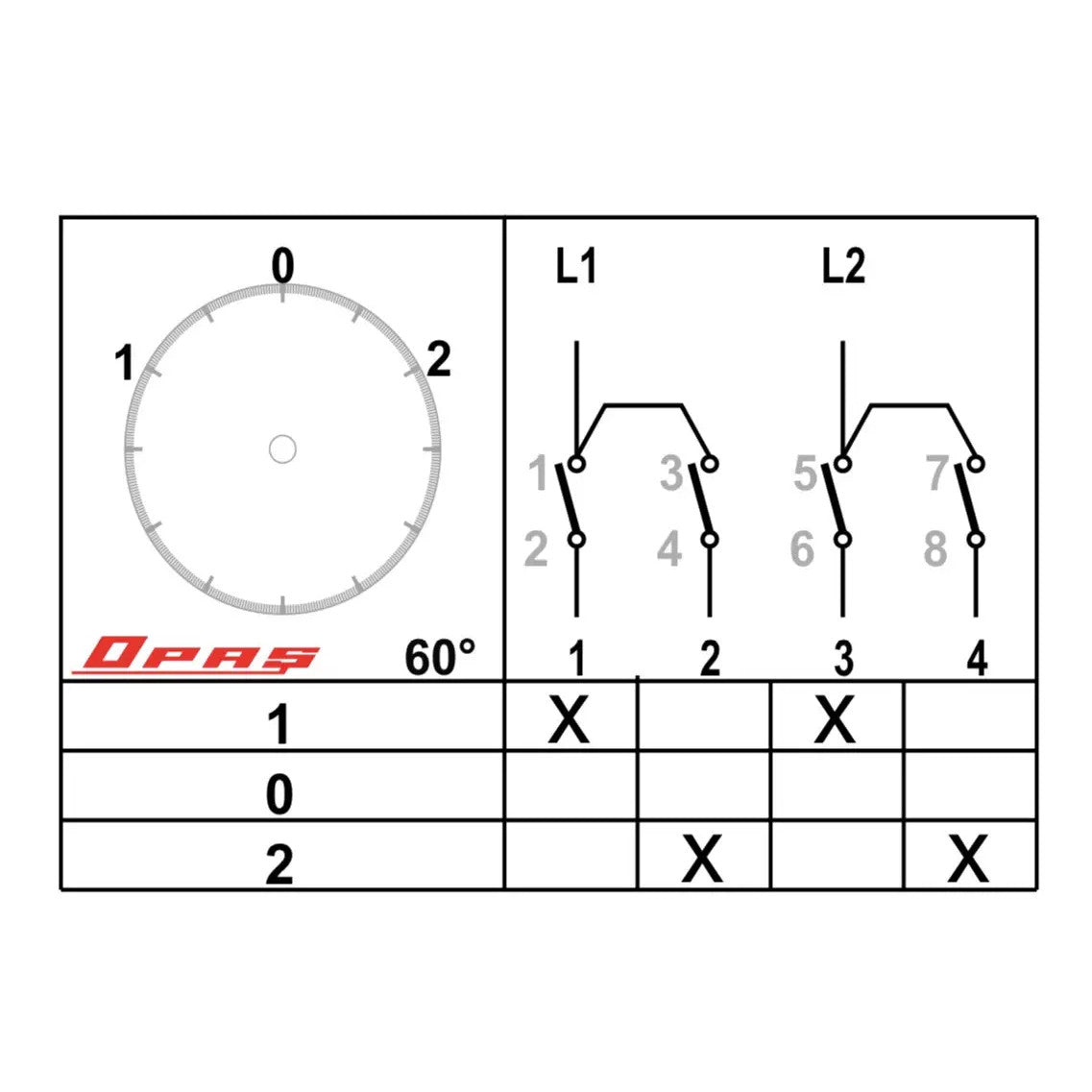

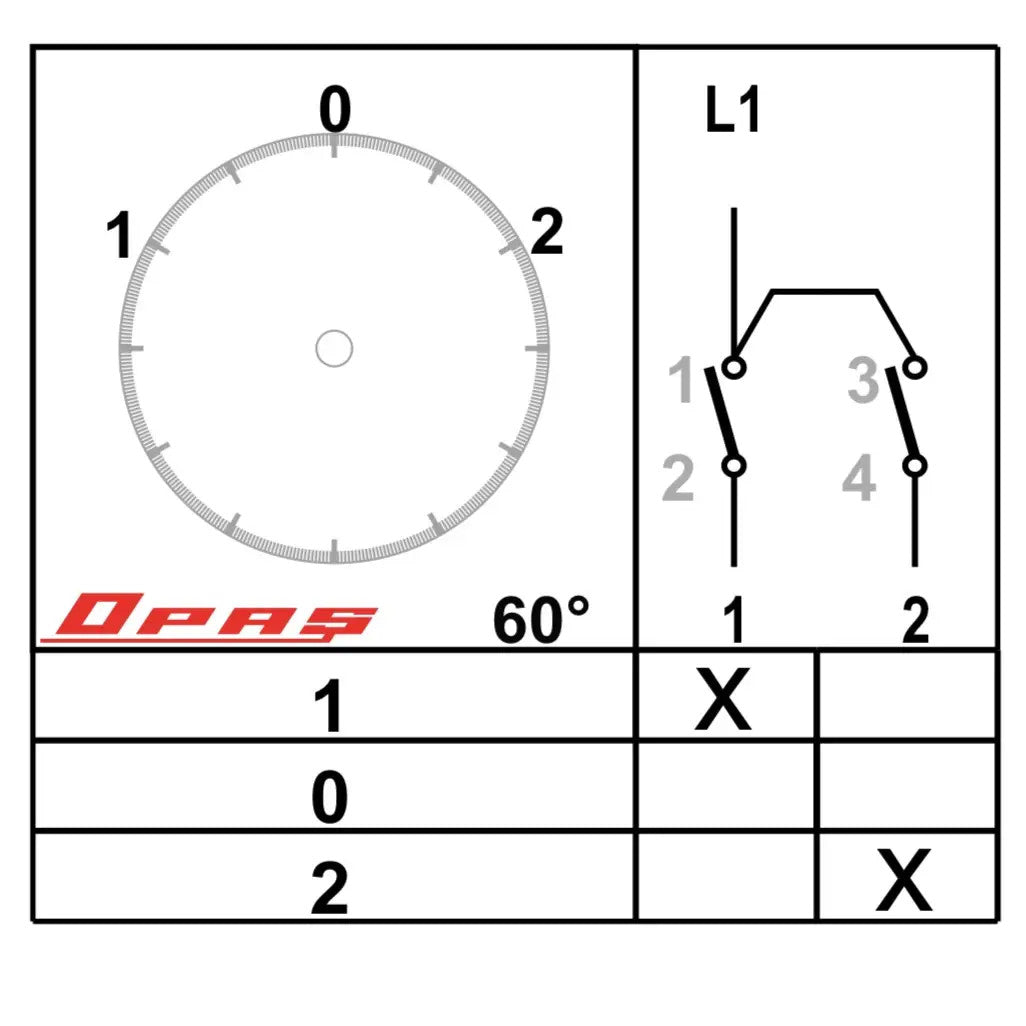

The I-0-II (1-0-2) format means it has an on-off-on position. The switch is suitable for current ranges from 10 A to 400 A and can be supplied in various 1 to 4 pole versions.

The key/lock ensures that mode changes are not made arbitrarily, which increases operational safety. This type of switch is often used in industrial applications, backup systems, generator distribution, and other situations where reliable switching of power sources is required.

Technical parameters

Product advantages

• Safety thanks to lock/key - prevents unwanted switching

• Flexible number of poles - 1 to 4 can be selected as needed

• Wide current range - suitable for various applications

• Compact design - easy to integrate into control cabinets

• Switching function between power sources - e.g., main/backup power source switching

Application

This type of switch is suitable for:

• Backup power systems

• for switching between generator and main network

• Industrial distribution systems

• in situations where mode switching must be safely controlled.
