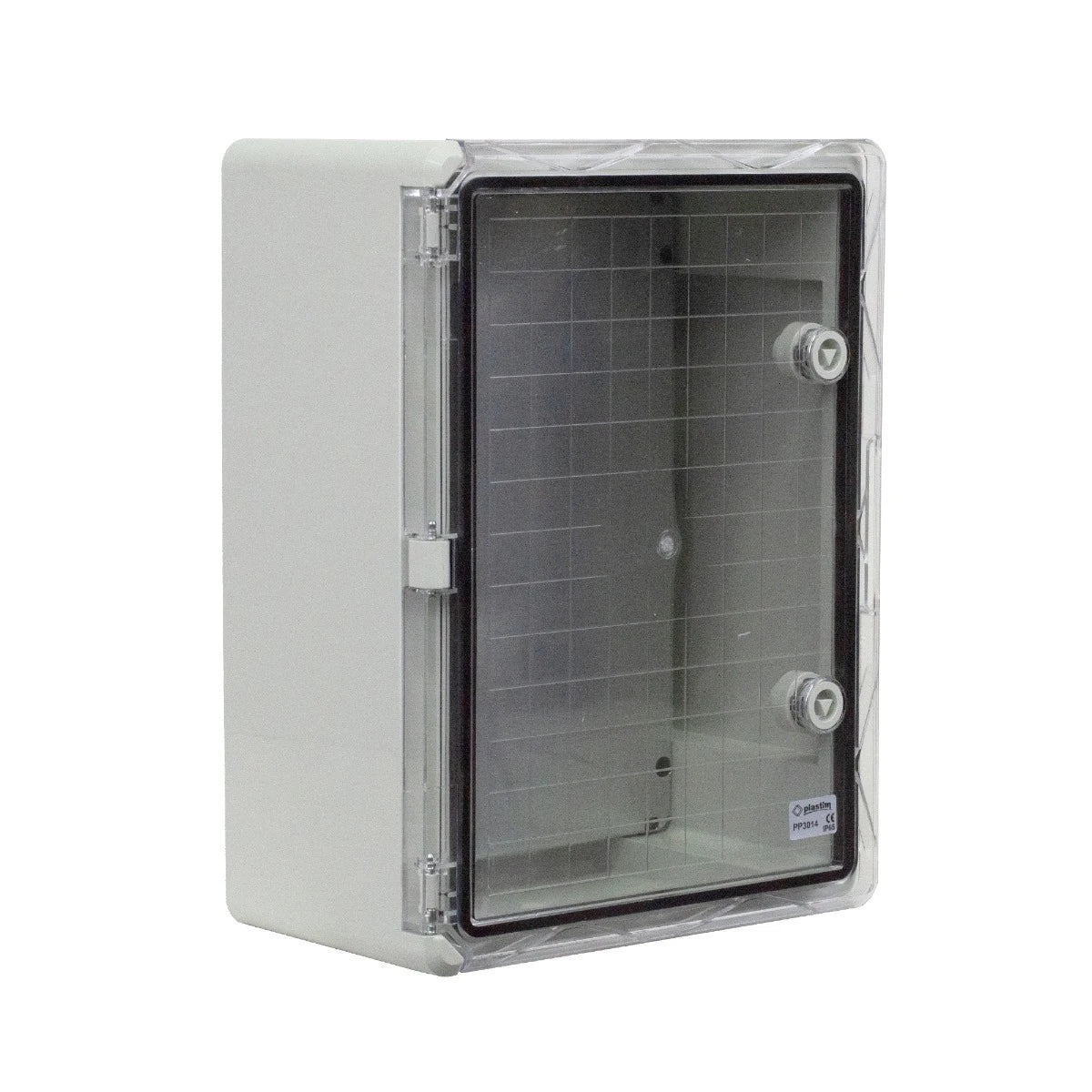

Transparent plastic door for distribution board 300x400x170mm IP65 PP3014

Plastic distribution box, transparent door, seam 300x400x170mm, IP65, PP3014 Plastim

New plastic waterproof enclosures produced by the Turkish company Plastim open a new chapter in the use of plastic protective cabinets for automation and electrical distribution tasks.

• Boxes reinforced with metal studs

• Newly designed cabinet corner fittings and increased thickness of the door and the entire product.

• Extended temperature range in which the protective cover retains all its enhanced properties -25/+60C

• Fully corrosion-resistant lightweight massive galvanized metal mounting panel
• Possible to install transparent doors and DIN rail reinforced metal surface mounts;

MAIN TECHNICAL FEATURES

• Mounting panel: made of 1 mm thick galvanized steel
• Material: HB halogen-free ABS + polycarbonate (door).
• Width: 300 mm
• Height: 400 mm
• Depth: 170 mm
• Color: RAL7035 light gray
• Enclosure: IP65, IK08
• Rated voltage: up to 690 V
• Maximum current: up to 800 A
• Operating temperature: -35°C + 65°C
• Weight: 3.00 kg
