Protective three-phase monitoring relay for phase failure/asymmetry/trace monitoring

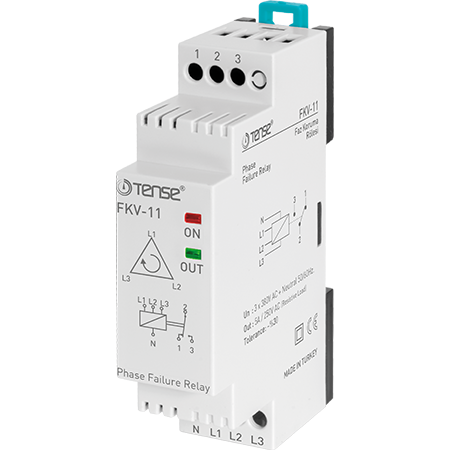

Phase control relay with phase fault, phase loss, asymmetrical phases (fixed 30%) control, single-rail installation FKV-11, TENSE

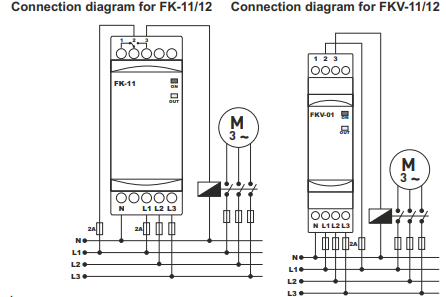

Phase control relay operating algorithm: if all three phases or line voltage are connected in the correct sequence, all phase voltages are within permissible limits - the relay is in operating condition and contacts 2-3 are closed, LED OUT is on. If the voltage of any phase changes by more than 30% (or if the multidirectional total change exceeds this limit), the ASM LED lights up and contacts 2-3 open, contacts 1-2 open and the OUT LED turns off. When the voltage difference returns to the specified range, the contacts switch back.

Technical specifications

Number of phases 3

Rated current 5 A

Rated operating voltage AC 380 V

Minimum operating voltage 200 V

Maximum operating voltage 532 V

Maximum power 3 W

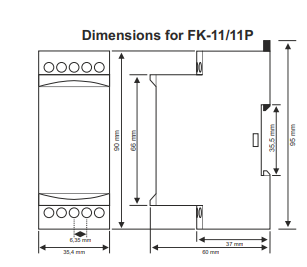

Overall dimensions

Length 85 mm

Height 77.6 mm

Width 22.5 mm
