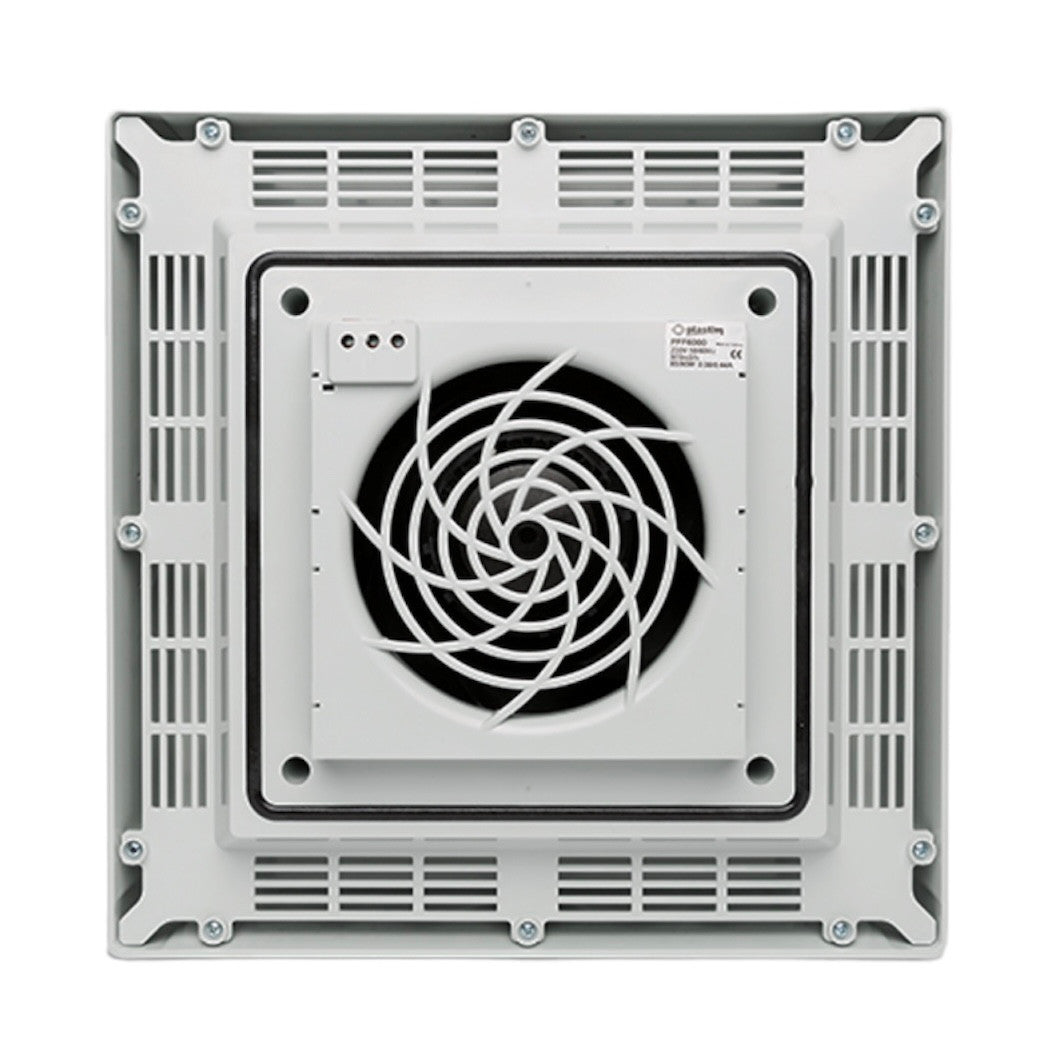

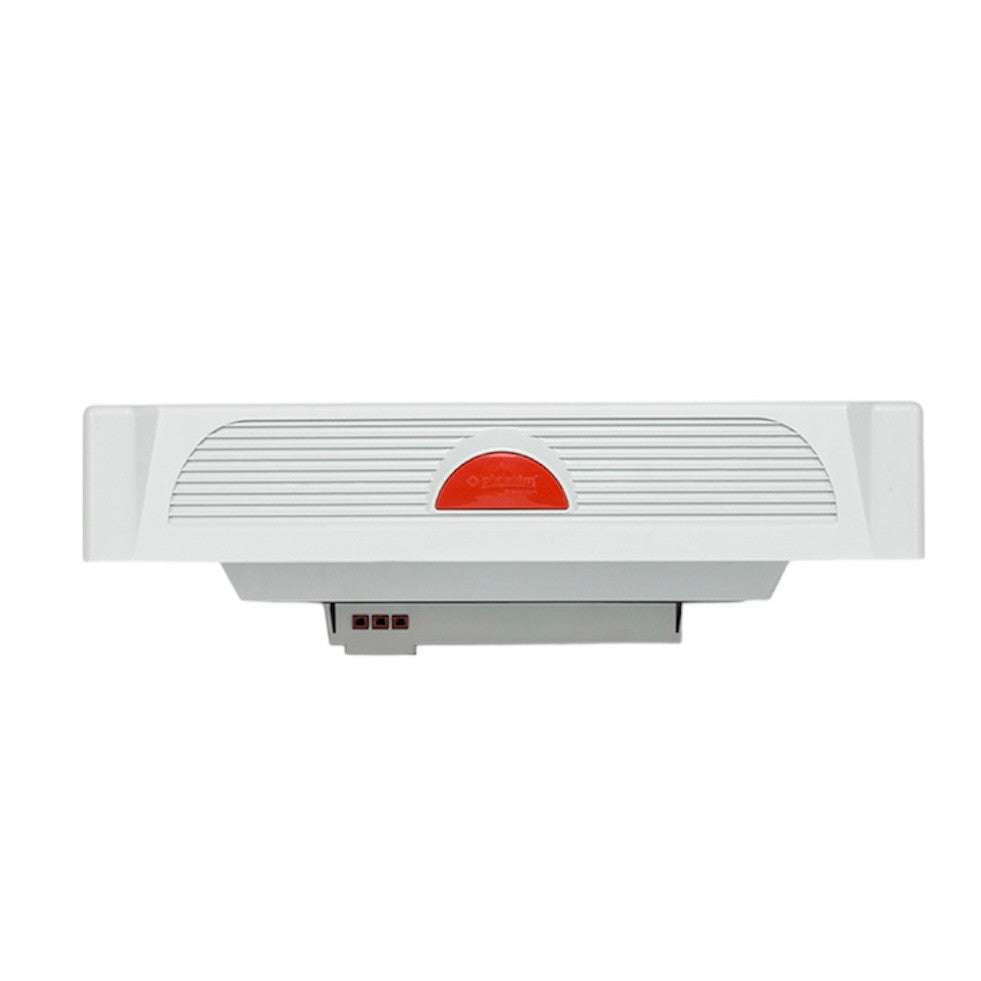

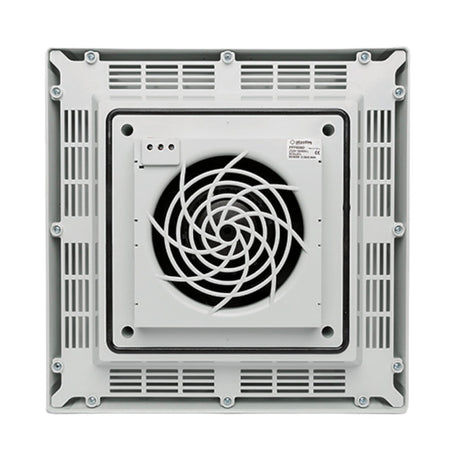

Roof fan, distribution fan, 560m3/h, 230VAC, 364x364x107mm, IP54, PTS5500

Fan in housing for installation on the roof of the switchboard, PTS5500, PLASTIM (Türkiye)

This fan is designed for use in a microclimate system in a switchboard or automation panel and is usually used in conjunction with a PTVT or PTHVT thermostat. It is installed on the roof of the enclosure, which allows excess hot air to be removed from the enclosure volume as efficiently as possible.

Although the overall dimensions of the fans are the same, they differ in the volume of air they expel and the noise level.

• External dimensions: 364x364x107 mm.
• Installation dimensions: 178x178 mm
• Room air flow rate: 560 m3/h
• Noise level: 62 (64) dB(A)
• Bearing: ball bearing
• Lifespan: 50000 hrs
• Operating voltage: 220-230 VAC, 50/60 Hz
• Current consumption: 0.26/0.34 A
• Power: 58/75W
• Electrical connection: 3-pole 2.5 mm2 terminal
• Flow direction: The air flow is directed from the inside of the cabinet to the outside.
• Operating temperature: -10/+70 °C
• Protection level: IP54
• Plastic material: UL94 V0 ABS Flame retardant
• Gasket: Polyurethane gasket
• Color: RAL 7035
• Weight: 3.16 kg
• Installation: Quick attachment

To ensure automatic air exchange and temperature maintenance with this fan, you will need either a simple bimetallic thermostat or a more complex temperature controller, both devices can be purchased on our website.
