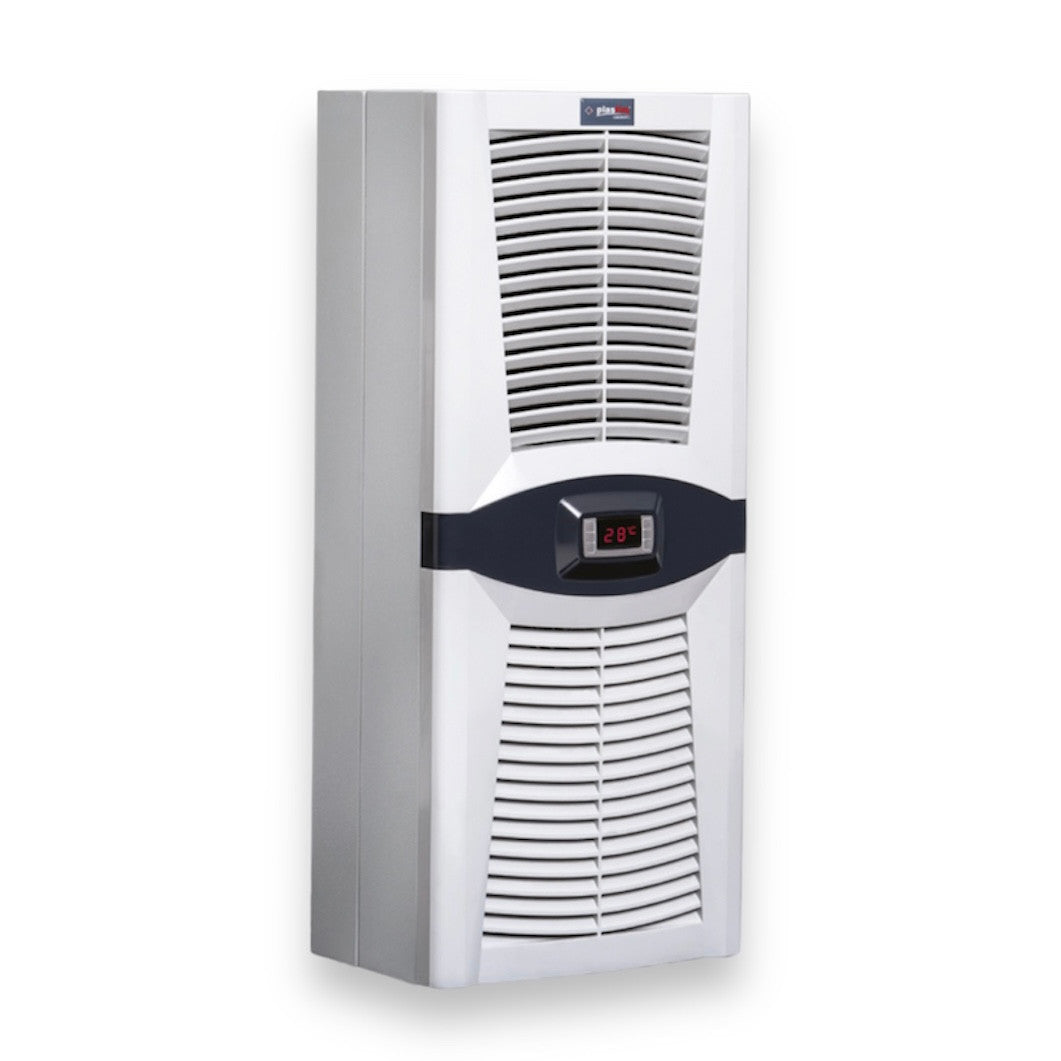

"Design Series" air conditioner for distribution board/cooler 1100 Watt / 3800BTU for side or wall mounting of distribution boards and automation cabinets.
The PAD1100.01 (PLASTIM) air conditioner for distribution boards is equipped with a modern open-type HIGHLY rotary compressor, Dixell thermostat, condensate evaporator, and a limit switch for controlling the opening of the distribution board door.
Everything necessary for installing the cabinet air conditioner is included - gaskets, drainage pipe, mounting screws, power plug.
| TECHNICAL DETAILS | PAD1100.01 |
| Cooling capacity L35 / L35 | 1100W / 3800BTU |
| Operating voltage | 230VAC |
| Frequency | 50/60 Hz |
| Starting current | 7.2A |
| Operating current | 2.5A |
| Circuit breaker | 10A |
| Power consumption | 575W |
| Operating range | 0-55 °C |
| Thermostat factory setting | 35 °C |
| Differential | 4 °C |
| Max. Air volume Internal circulation | 340 m³/h |
| Max. Air volume external circuit | 590 m³/h |
| Refrigerant type | R134a |
| Refrigerant quantity | 310 g |

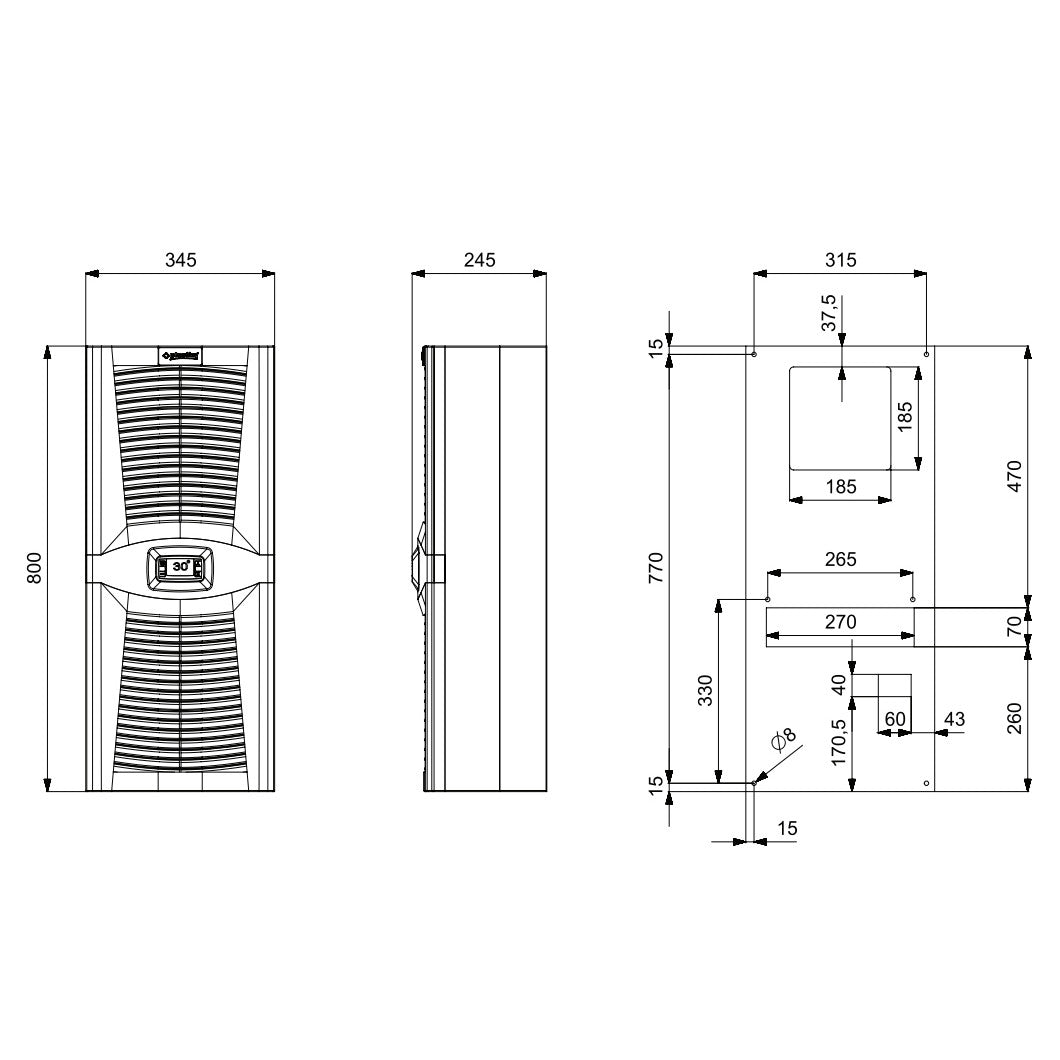

| Dimensions | 800x345x223mm |
| Weight | 32kg |
| Sound level | 76 dB |
| Degree of protection (internal circuit) | IP 54 |
| Protection class (external circuit) | IP 34 |
| Color | RAL7035 |
| Compressor | HIGHLY/HITACHI |
| Compressor type | Rotary |
| Fans | EBMPAPST |
| Installation method | Wall mounting |
