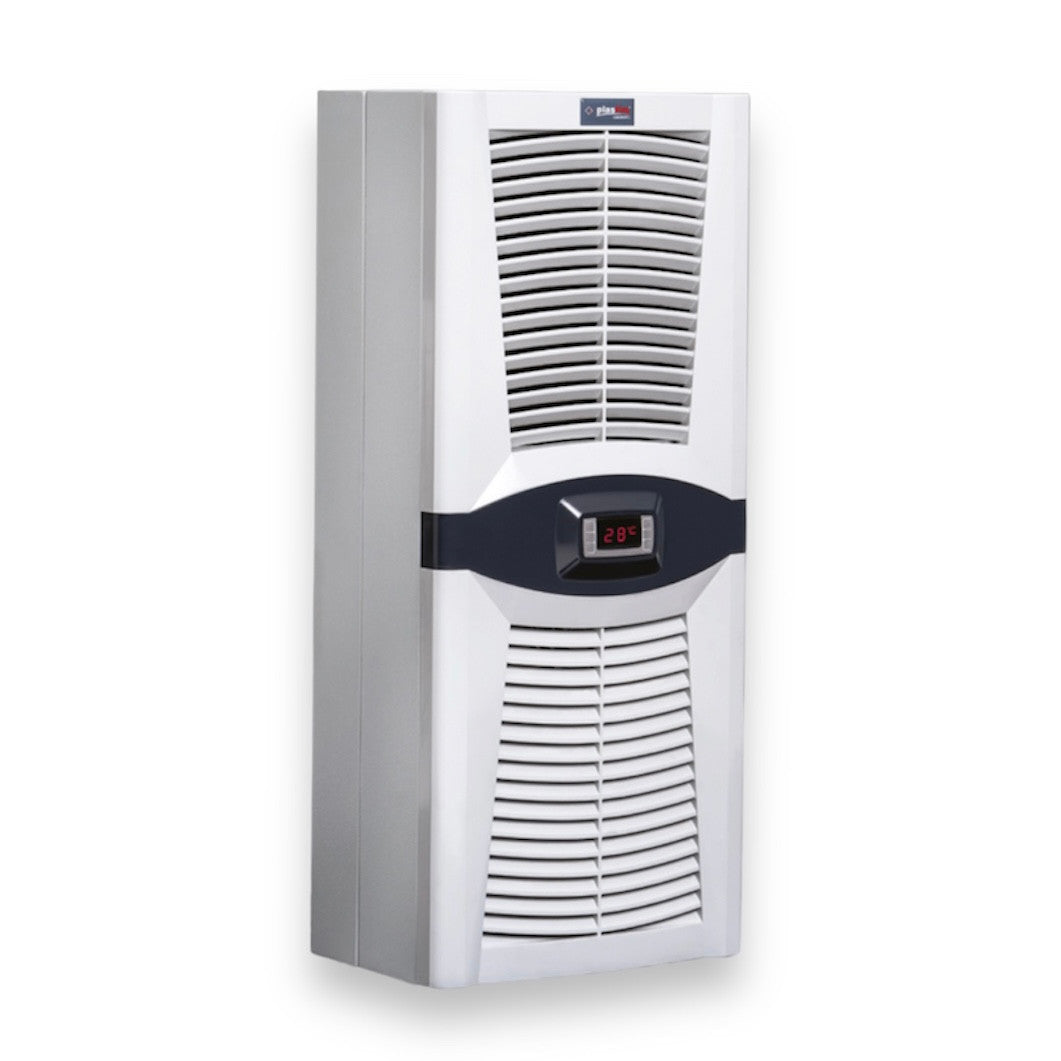

Air conditioning distribution board/cooler 1600 watts (Design series) for side or wall mounting of distribution board and automation board.
The PAD1600.01 (PLASTIM) switchboard air conditioner has a HIGHLY modern open-type rotary compressor, a Dixell thermostat, a condensate evaporator and a limit switch to control the opening of the switchboard door.
Everything needed to install the air conditioner in the cabinet is included - gaskets, drain pipe, mounting screws, power plug.
|
TECHNICAL DETAILS |
PAD1600.01 |
|
Cooling capacity L35 / L35 |
1600W / 5500BTU |
|
Operating voltage |
230VAC |
|
Frequency |
50/60Hz |
|
Starting current |
8A |
|
Working current |
3.2A |
|
Circuit breaker |
10A |
|
Consumability |
725W |
|
Working area |
0-55°C |
|
Thermostat factory setting |
35°C |
|
Differential |
4 °C |
|
Max. Air volume Internal circulation |
510 m³/h |
|
Max. Air volume external circuit |
510 m³/h |
|
Refrigerant type |
R134a |
|
Refrigerant quantity |
600g |
|

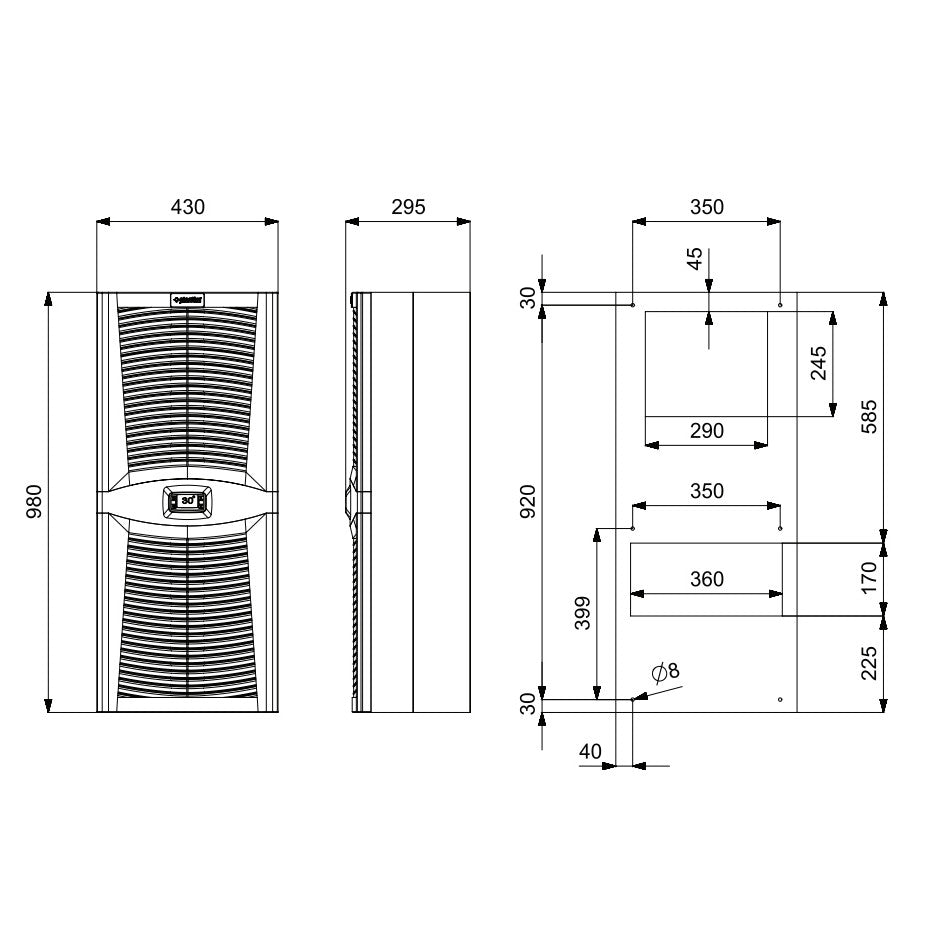

Dimensions |
980x430x270mm |
|
Weight |
45kg |
|
Sound level |
79 dB |
|
Protection level (internal circuit) |
IP54 |
|
Protection class (external circuit) |
IP34 |
|
Color |
RAL7035 |
|
Compressor |
HIGHLY/HITACHI |
|
Compressor type |
Rotating |
|
Fans |
EBMPAPST |
|
Installation method |
Wall mounting |
