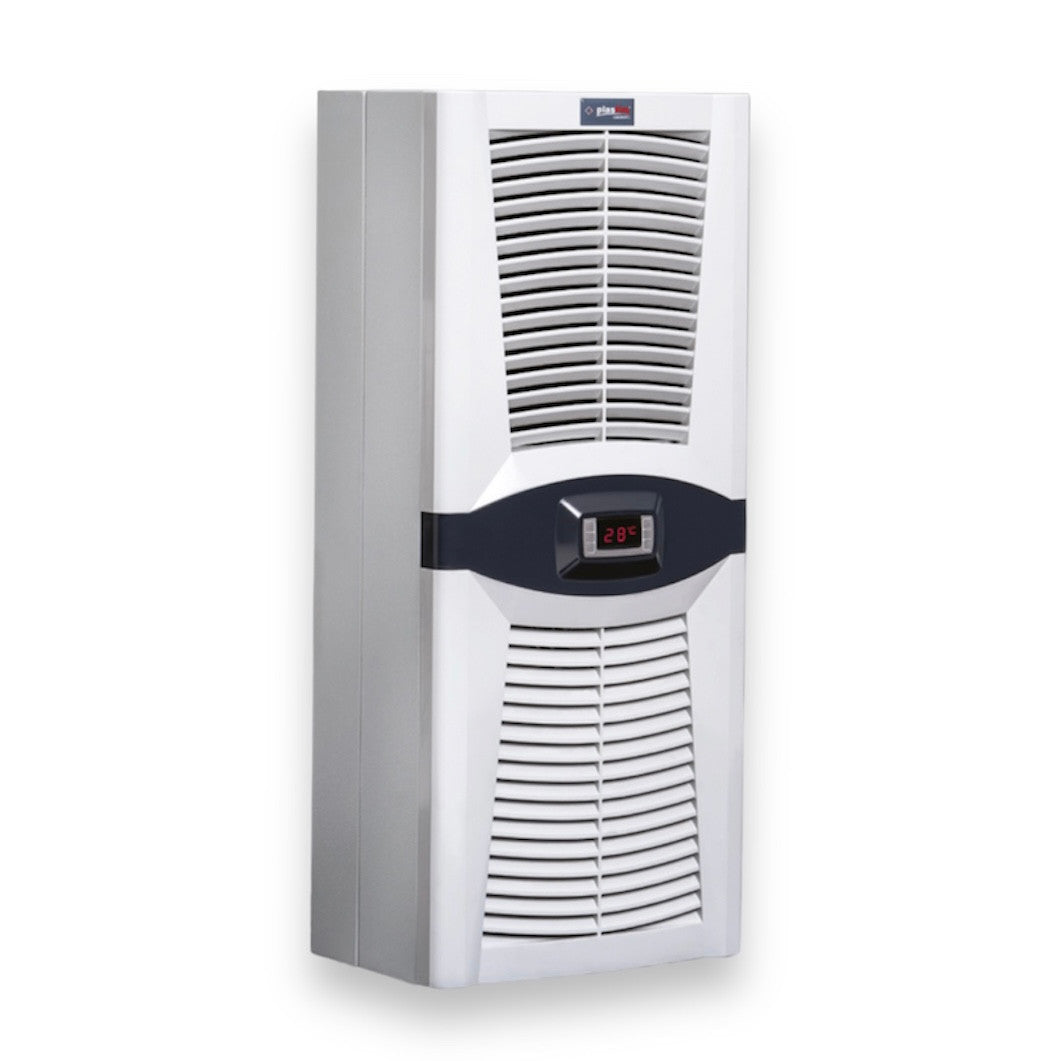

"Design Series" Air Conditioner for Enclosure / Cooler 2500 Watt / 8550BTU for side or wall mounting of electrical and automation enclosures.
The PAD2500.01 (PLASTIM) air conditioner for enclosures is equipped with a modern open-type HIGHLY rotary compressor, a Dixell thermostat, a condensate evaporator, and a limit switch for controlling the opening of the enclosure door.
Everything necessary for installing the cabinet air conditioner is included - gaskets, drain pipe, mounting screws, power plug.
|
TECHNICAL DETAILS |
PAD2500.01 |
|
Cooling capacity L35 / L35 |
2500W / 8550BTU |
|
Operating voltage |
230VAC |
|
Frequency |
50/60 Hz |
|
Starting current |
11A |
|
Operating current |
3.8A |
|
Circuit breaker |
16A |
|
Consumption |
800W |
|
Operating range |
0-55 °C |
|
Thermostat factory setting |
35 °C |
|
Differential |
4 °C |
|
Max. Air volume Internal circulation |
510 m³/h |
|
Max. Air volume external circuit |
625 m³/h |
|
Refrigerant type |
R134a |
|
Refrigerant quantity |
750 g |
|

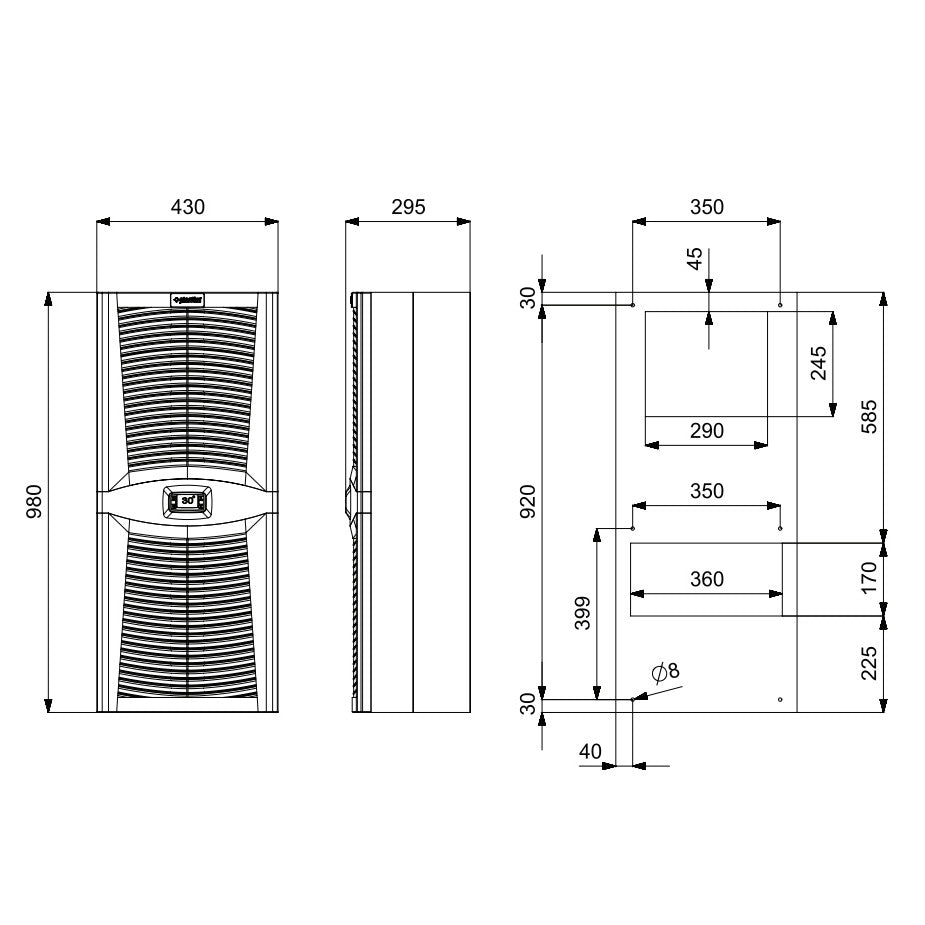

Dimensions |
980x430x270mm |
|
Weight |
47kg |
|
Sound level |
82dB |
|
Protection class (internal circuit) |
IP 54 |
|
Protection class (external circuit) |
IP 34 |
|
Color |
RAL7035 |
|
Compressor |
HIGHLY/HITACHI |
|
Compressor type |
Rotary |
|
Fans |
EBMPAPST |
|
Installation method |
Wall mounting |
