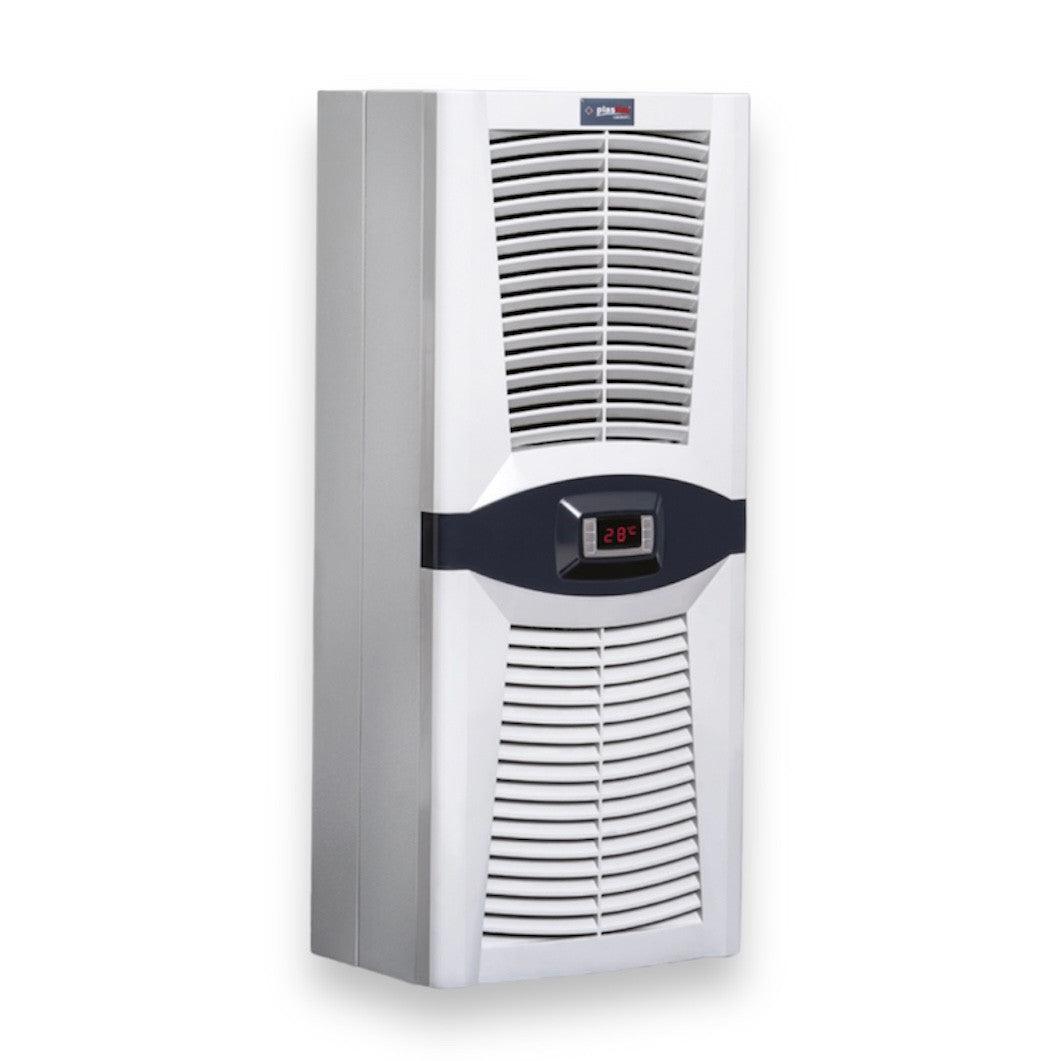

"Design Series" air conditioner for distribution board / cooler 2500 Watt / 8550BTU for side or wall mounting of distribution board and automation board.
The PAD2550.01 (PLASTIM) air conditioner for switchboards is equipped with a HIGHLY modern open-type rotary compressor, a Dixell thermostat, a condensate evaporator and a limit switch to control the opening of the switchboard door.
Everything needed to install the air conditioner in the cabinet is included - gaskets, drain pipe, mounting screws, power plug.
|
TECHNICAL DETAILS |
PAD2550.01 |
|
Cooling capacity L35 / L35 |
2500W / 8550BTU |
|
Operating voltage |
230VAC |
|
Frequency |
50/60Hz |
|
Starting current |
11A |
|
Working current |
3.8A |
|
Circuit breaker |
16A |
|
Consumability |
800W |
|
Working area |
0-55°C |
|
Thermostat factory setting |
35°C |
|
Differential |
4 °C |
|
Max. Air volume Internal circulation |
510 m³/h |
|
Max. Air volume external circuit |
625 m³/h |
|
Refrigerant type |
R134a |
|
Refrigerant quantity |
750g |
|

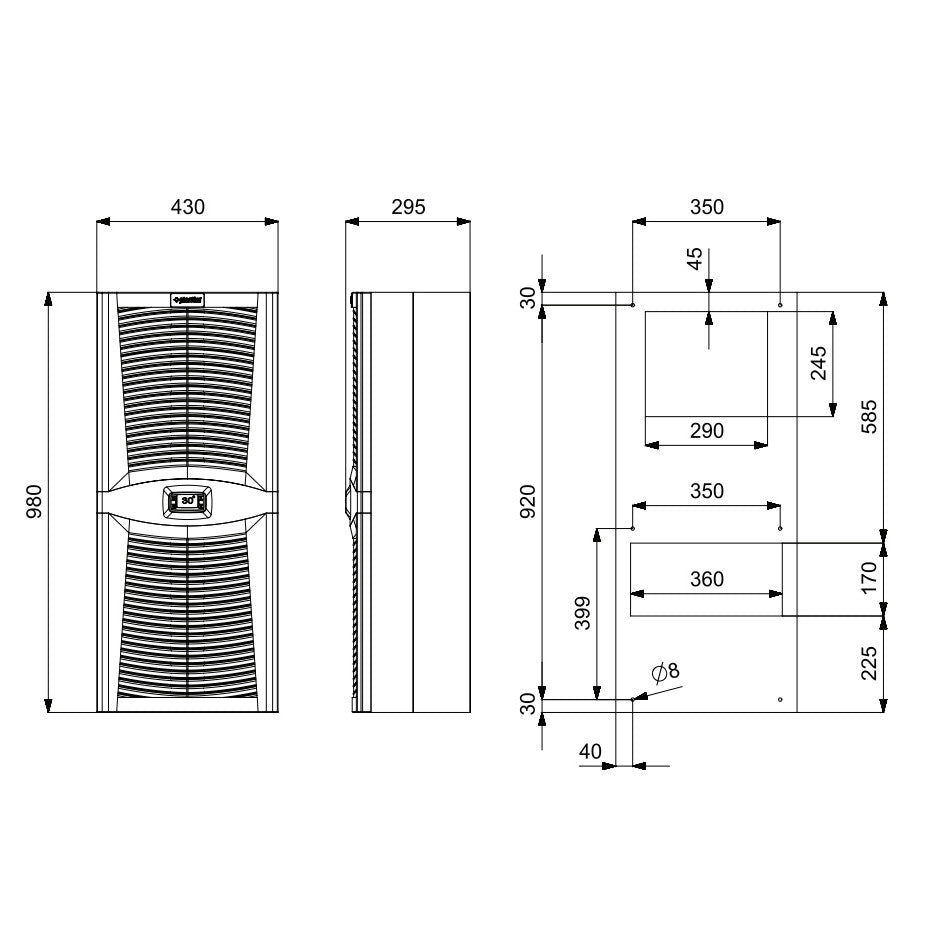

Dimensions |
980x430x270mm |
|
Weight |
47kg |
|
Sound level |
82dB |
|
Degree of protection (internal circuit) |
IP54 |
|
Protection class (external circuit) |
IP34 |
|
Color |
RAL7035 |
|
Compressor |
HIGHLY/HITACHI |
|
Compressor type |
Rotating |
|
Fans |
EBMPAPST |
|
Installation method |
Wall mounting |
