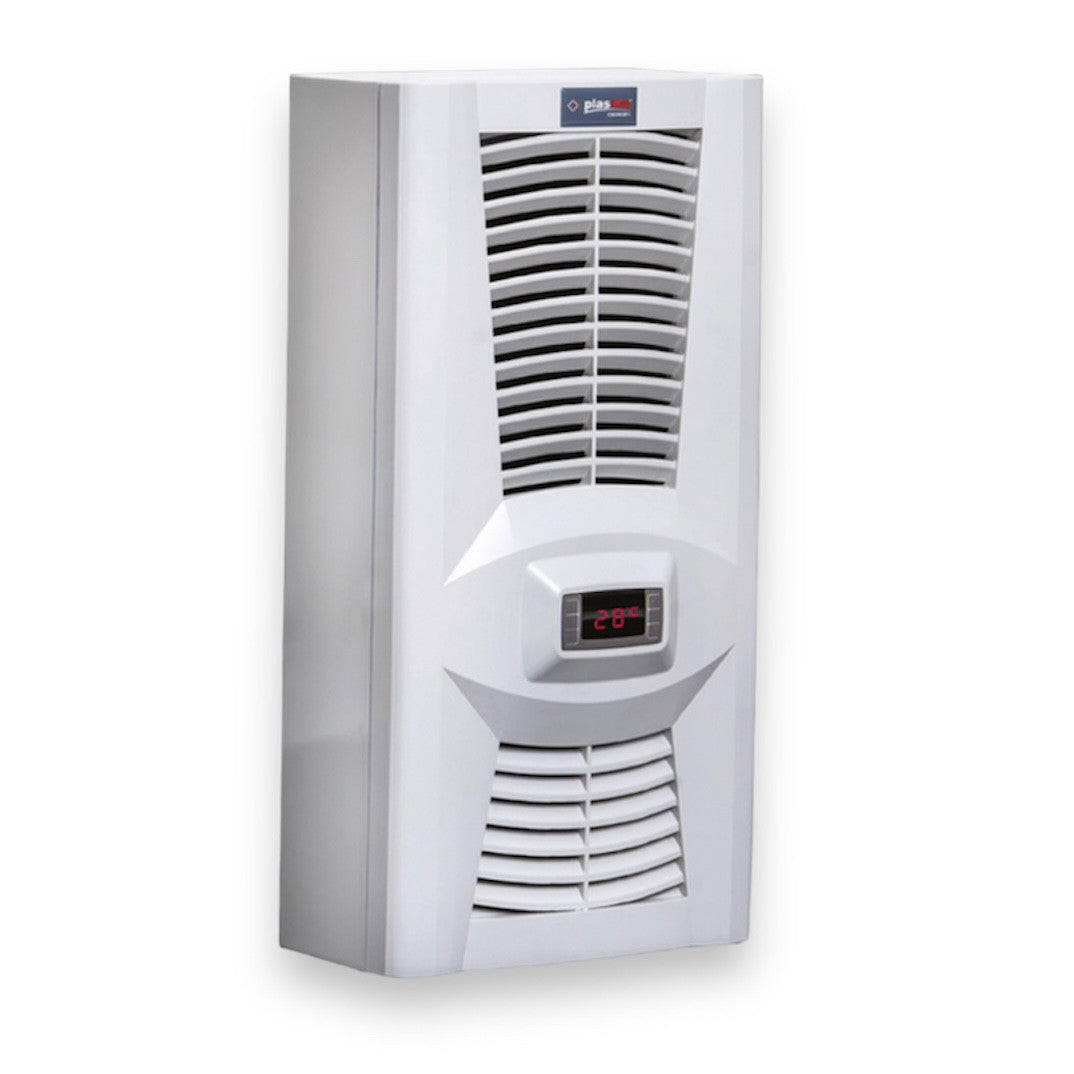

"Design Series" air conditioning unit for distribution board / cooler 380 Watt / 1300 BTU for side or wall mounting of distribution board and automation board.
The PAD0380.01 (PLASTIM) air conditioner for switchboards is equipped with a HIGHLY modern open-type rotary compressor, a Dixell thermostat, a condensate evaporator and a limit switch to control the opening of the switchboard door.
The kit includes everything needed to install the air conditioner in the cabinet - gaskets, drain pipe, mounting screws, power plug.
| TECHNICAL DETAILS | PAD0380.01 |
| Cooling capacity L35 / L35 | 380W / 1300BTU |
| Operating voltage | 230VAC |
| Frequency | 50/60Hz |
| Starting current | 3.7A |
| Working current | 1.1A |
| Circuit breaker | 5A |
| Power consumption | 325W |
| Working area | 0-55°C |
| Thermostat factory setting | 35°C |
| Differential | 4 °C |
| Max. Air volume Internal circulation | 340 m³/h |
| Max. Air volume external circuit | 340 m³/h |
| Refrigerant type | R134a |
| Refrigerant quantity | 120g |
| Dimensions | 560x285x150mm |
| Weight | 15kg |
| Sound level | 75dB |
| Protection level (internal circuit) | IP54 |
| Protection class (external circuit) | IP34 |
| Color | RAL7035 |
| Compressor | HIGHLY/HITACHI |
| Compressor type | Rotating |
| Fans | EBMPAPST |
| Installation method | Wall mounting |
