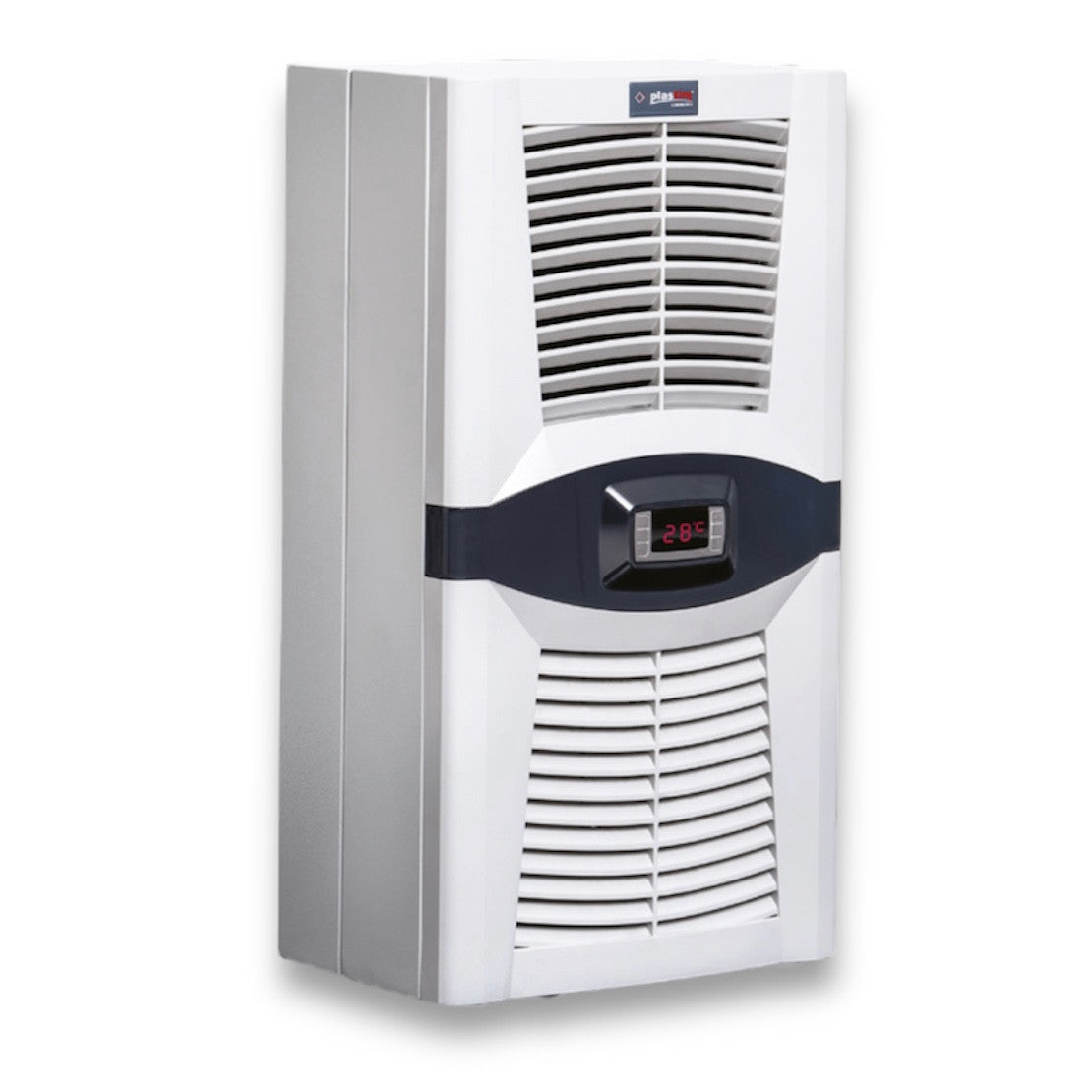

"Design Series" Enclosure / cabinet cooler 550 Watt / 1900BTU for side or wall mounting of the enclosure and automation board.
The PAD0550.01 (PLASTIM) air conditioner for electrical enclosures is equipped with a modern HIGHLY open-type rotary compressor, a Dixell thermostat, a condensate evaporator and a limit switch for controlling the opening of the enclosure door.
The set includes everything necessary for installing the air conditioner in the cabinet - gaskets, drain pipe, mounting screws, power plug.
| TECHNICAL DETAILS | PAD0550.01 |
| Cooling Capacity L35 / L35 | 550W / 1900BTU |
| Operating Voltage | 230VAC |
| Frequency | 50/60 Hz |
| Starting Current | 1.2A |
| Operating Current Value | 1.1A |
| Circuit Breaker | 6A |
| Power Consumption | 330W |
| Operating Range | 0-55 ° |
| Thermostat Factory Setting | 35 ° |
| Differential | 4 ° |
| Max. Air Volume Internal Circulation | 340 m³/h |
| Max. Air Volume External Circulation | 505 m³/h |
| Refrigerant Type | R134a |
| Refrigerant Amount | 245 g |

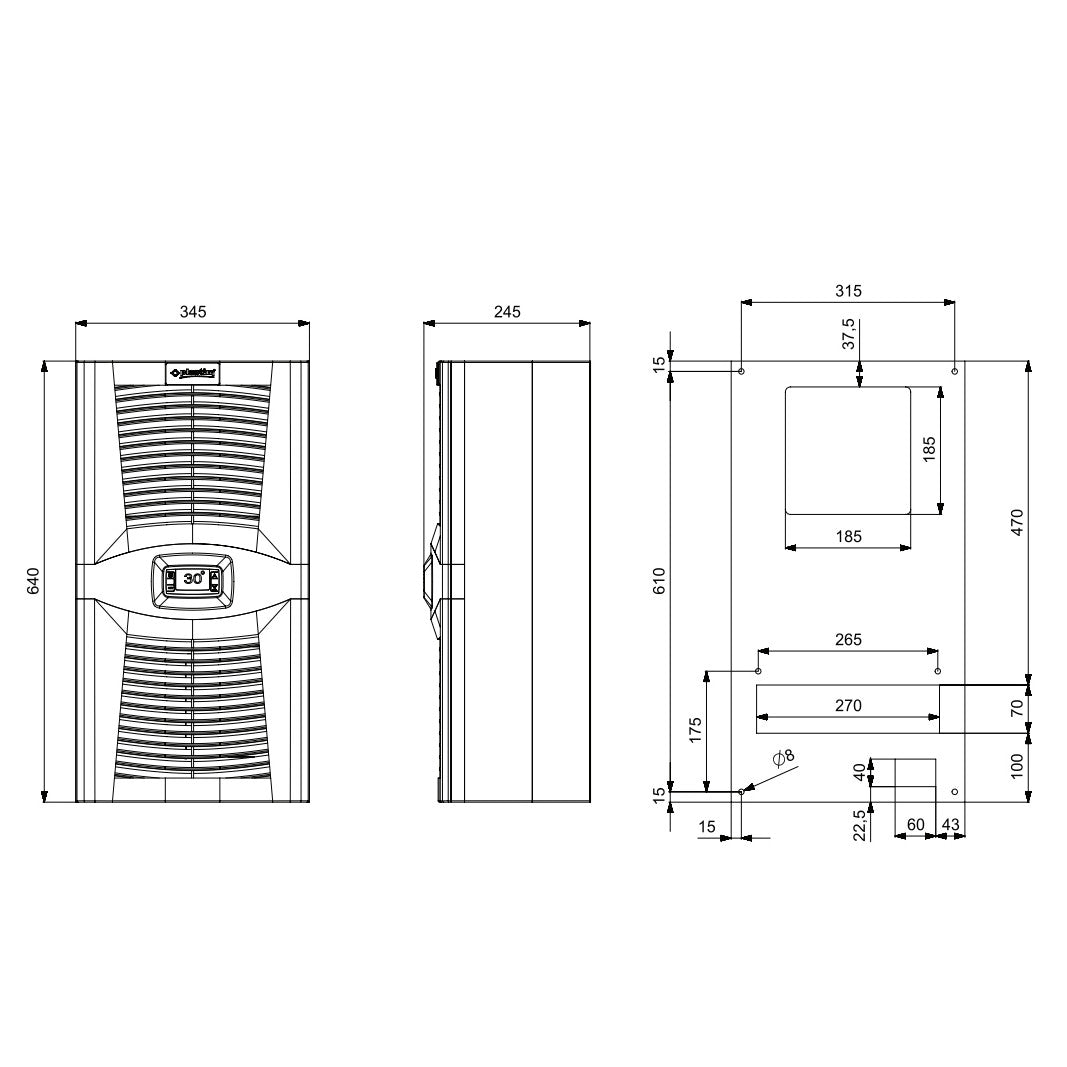

| Dimensions | 640x345x223mm |
| Weight | 27kg |
| Noise Level | 76 dB |
| Protection Class (internal circuit) | IP 54 |
| Protection Class (external circuit) | IP 34 |
| Color | RAL7035 |
| Compressor | HIGHLY/HITACHI |
| Compressor Type | Rotary |
| Fans | EBMPAPST |
| Mounting Method | Wall Mounting |
