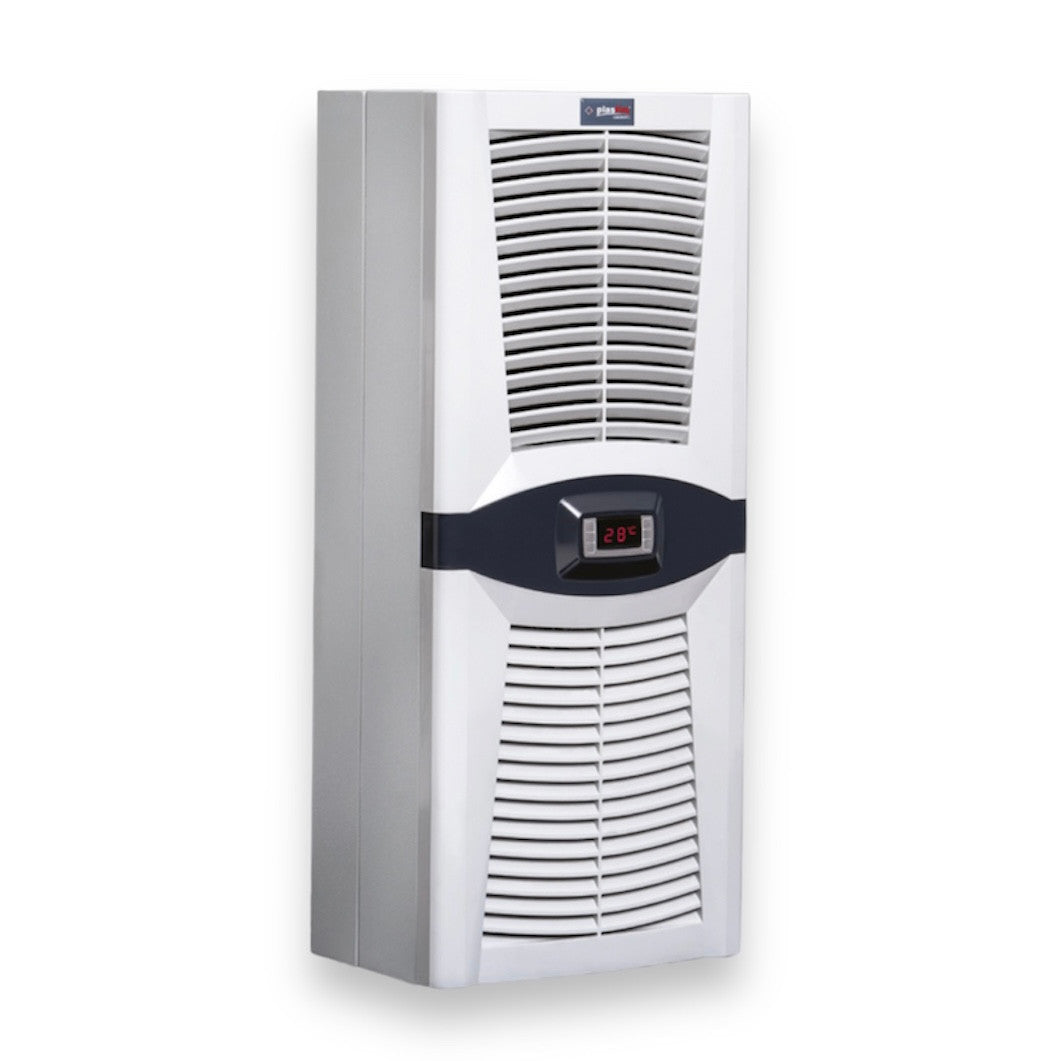

"Design Series" Air Conditioner for Enclosure / Chiller 850 Watt / 2990BTU for side or wall mounting of the switchgear cabinet and automation board.
The air conditioner for switchgear cabinets PAD08500.01 (PLASTIM) is equipped with a modern open-type HIGHLY rotary compressor, a Dixell thermostat, a condensate evaporator and a limit switch to monitor the opening of the switchgear cabinet door.
Everything necessary for installing the air conditioner on the cabinet is included - gaskets, drain pipe, mounting screws, power plug.
| TECHNICAL DETAILS | PAD0850.01 |
| Cooling capacity L35 / L35 | 850W / 2900BTU |
| Operating voltage | 230VAC |
| Frequency | 50/60 Hz |
| Starting current | 6A |
| Operating current value | 1.7A |
| Circuit breaker | 10A |
| Power consumption | 394W |
| Operating range | 0-55 °C |
| Thermostat factory setting | 35 °C |
| Differential | 4 °C |
| Max. Air volume Internal circulation | 340 m³/h |
| Max. Air volume external circuit | 505 m³/h |
| Refrigerant type | R134a |
| Refrigerant quantity | 290 g |
| Dimensions | 800x345x223mm |
| Weight | 30kg |
| Sound level | 76 dB |
| Protection class (internal circuit) | IP 54 |
| Protection class (external circuit) | IP 34 |
| Color | RAL7035 |
| Compressor | HIGHLY/HITACHI |
| Compressor type | Rotary |
| Fans | EBMPAPST |
| Installation method | Wall mounting |
