Commutator group 0-1-2-3-4-5-6-7 step cam switch

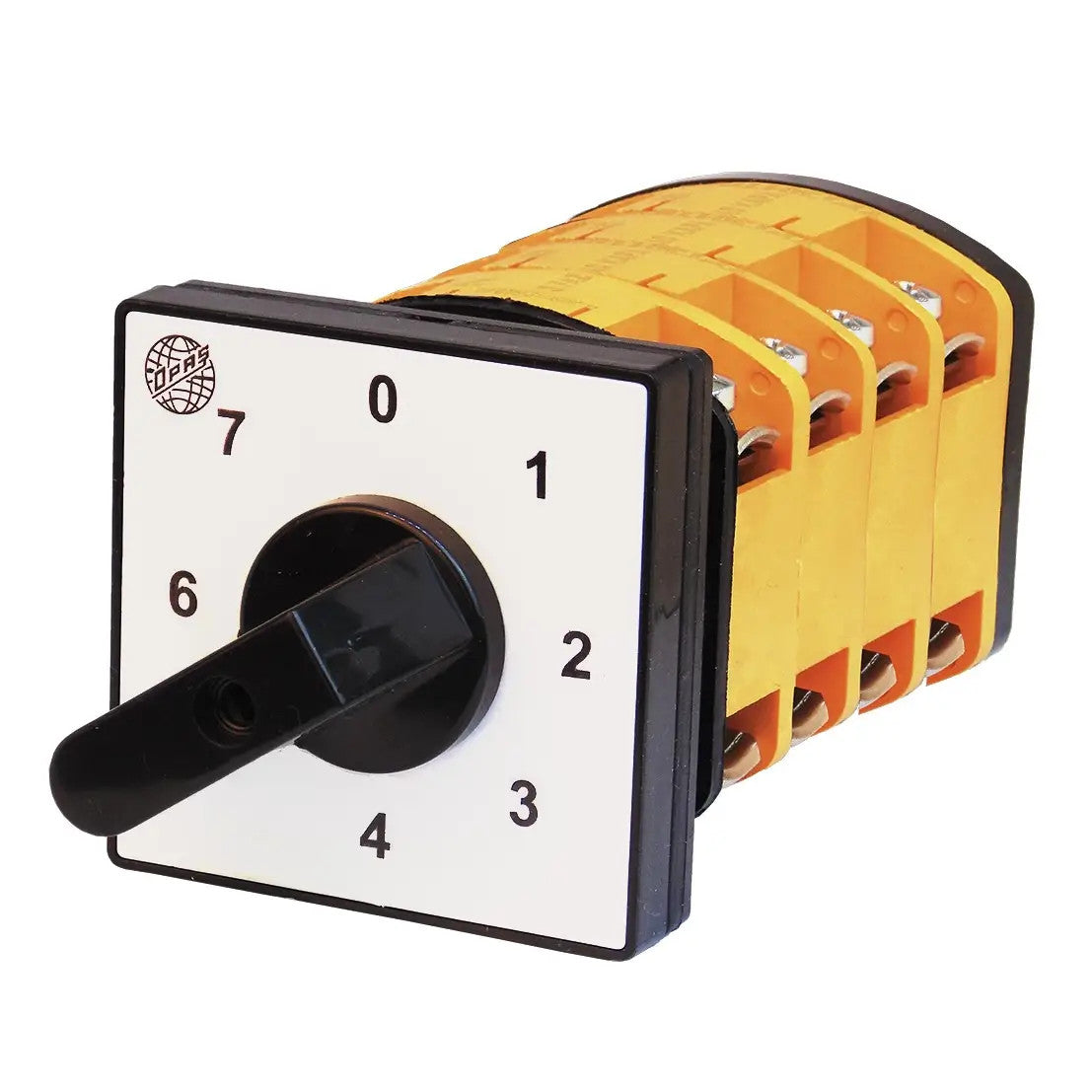

Rotary cam package group 0-1-2-3-3-4-5-6-7 step/sequential commutator switch, YPT117K, manufacturer OPAŞ (Turkey)

Batch (group) switches are designed for manual switching of low voltage circuits. They are used for making main and control circuits, switching electric motors and other low-power devices on and off. This series of switches is characterized by compact size, high electrical and mechanical durability.

The group switch allows gradual switching of individual steps, while maintaining previously switched steps. Suitable, for example, for connecting three 1 kW heating devices - sequential switching allows creating heating power of 1 kW, 2 kW, 3 kW ... up to 7 kW.

Main features

• Rotary cam switch for low voltage circuits

• Multi-position scheme 0-1-2-3-4-5-6-7

• Sequential switching of power levels

• Built-in design

• Suitable for single-phase applications

Technical parameters

• Construction: cam-operated switch

• Device type: rotary switch

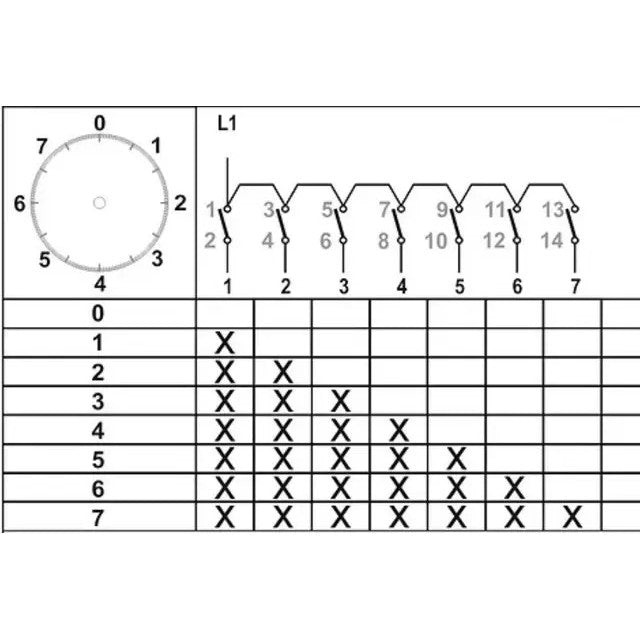

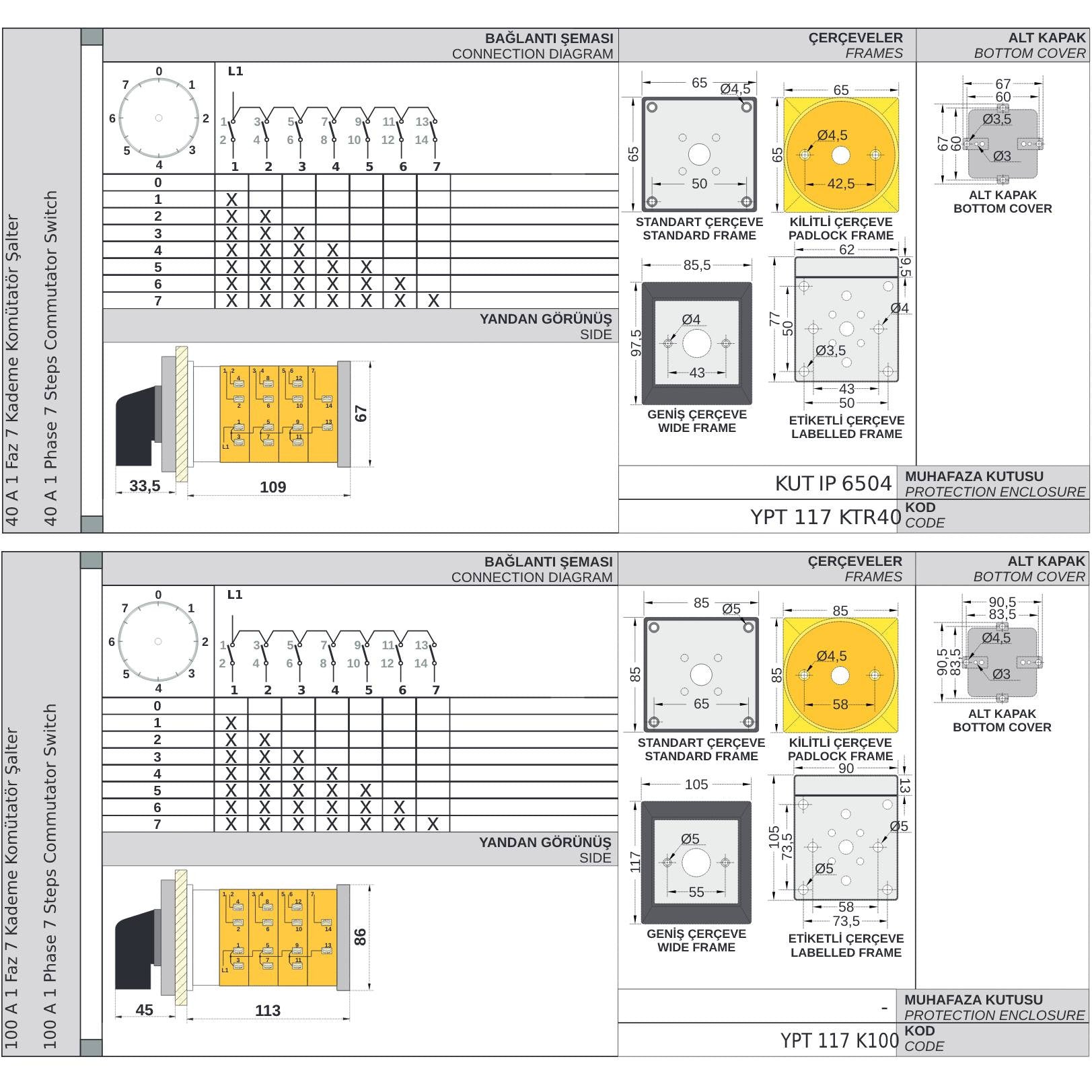

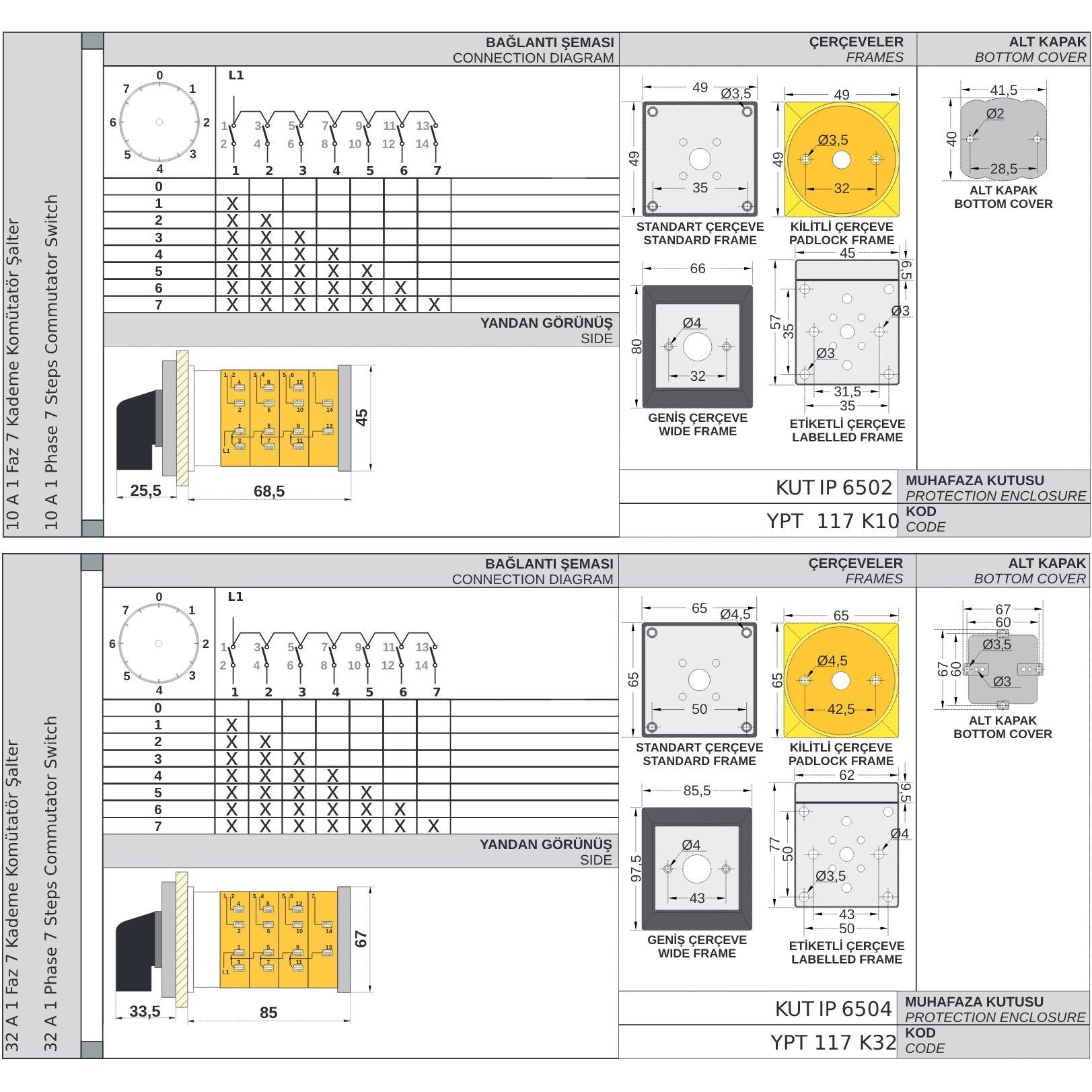

• Wiring diagram: 0-1-2-3-4-5-6-7

• Number of poles: 1

• Number of phases: 1

• Locking: none

• Protection rating: IP20

• Operating temperature: -30 to +55 °C

• Rated currents: 10 A, 16 A, 25 A, 32 A, 40 A, 63 A

Usage

• Sequential switching of heating elements

• Switching device between multiple operating modes

• Heating power regulation

• Single-phase low voltage control circuits
