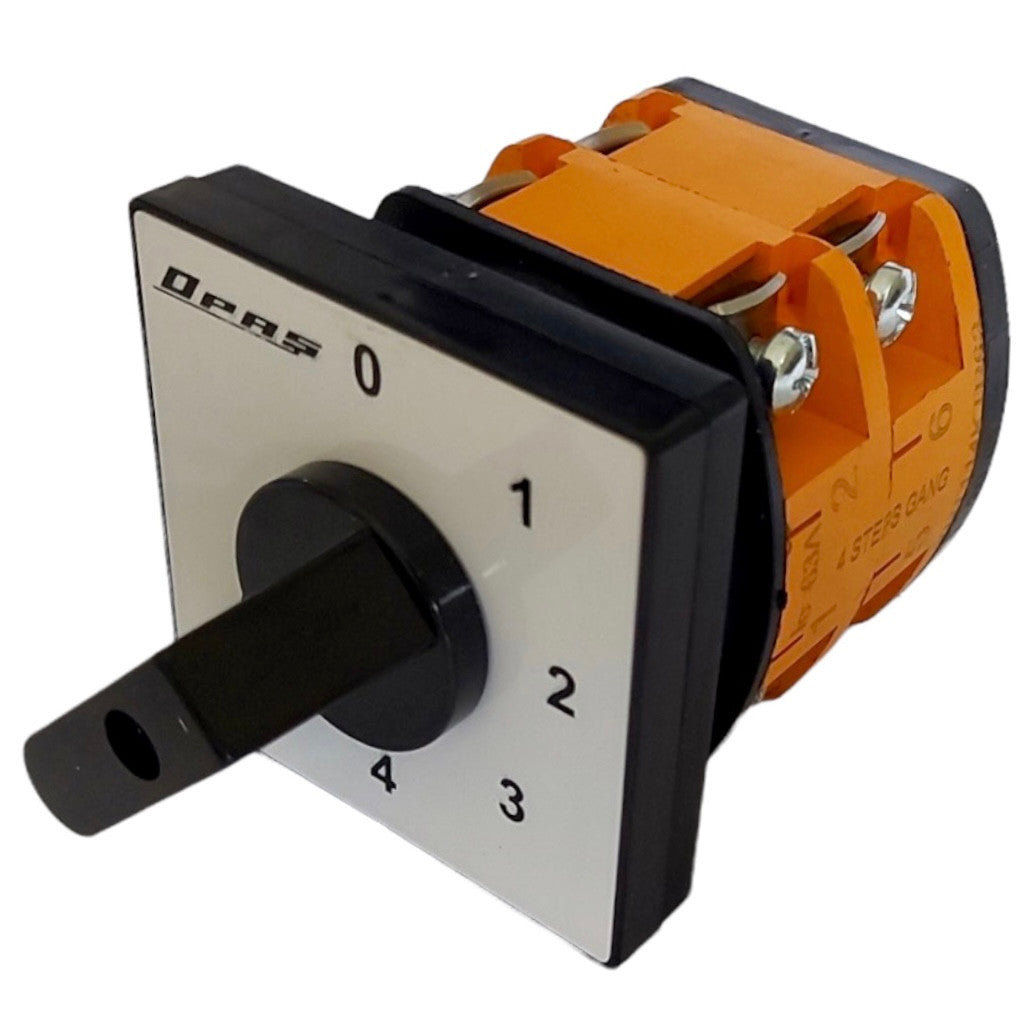

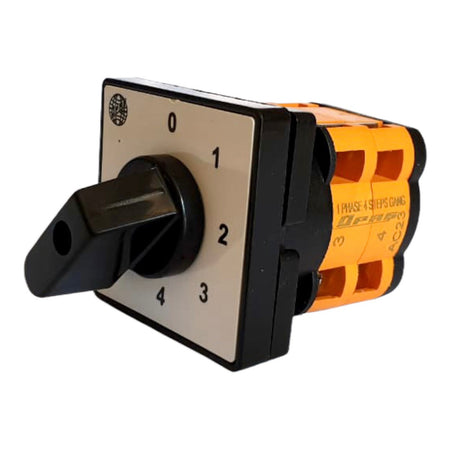

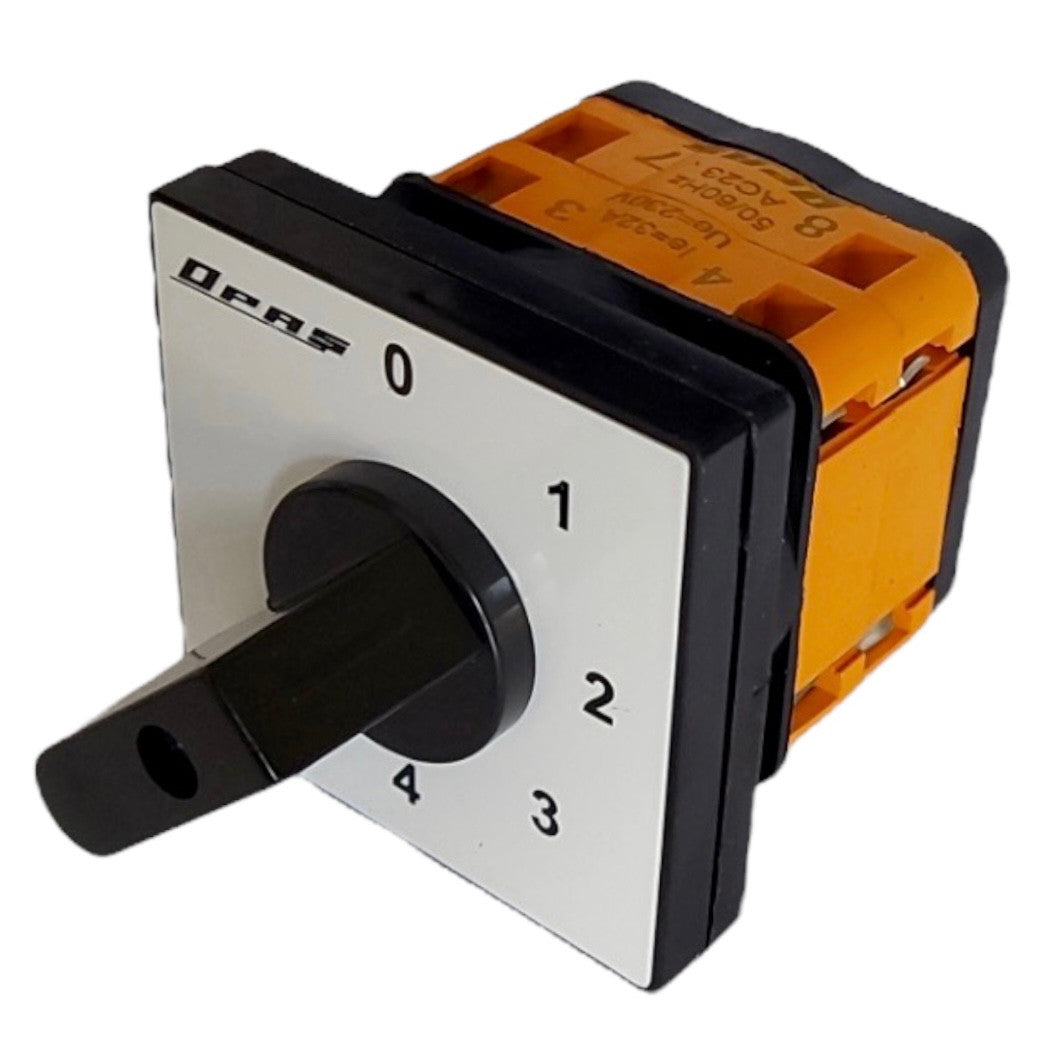

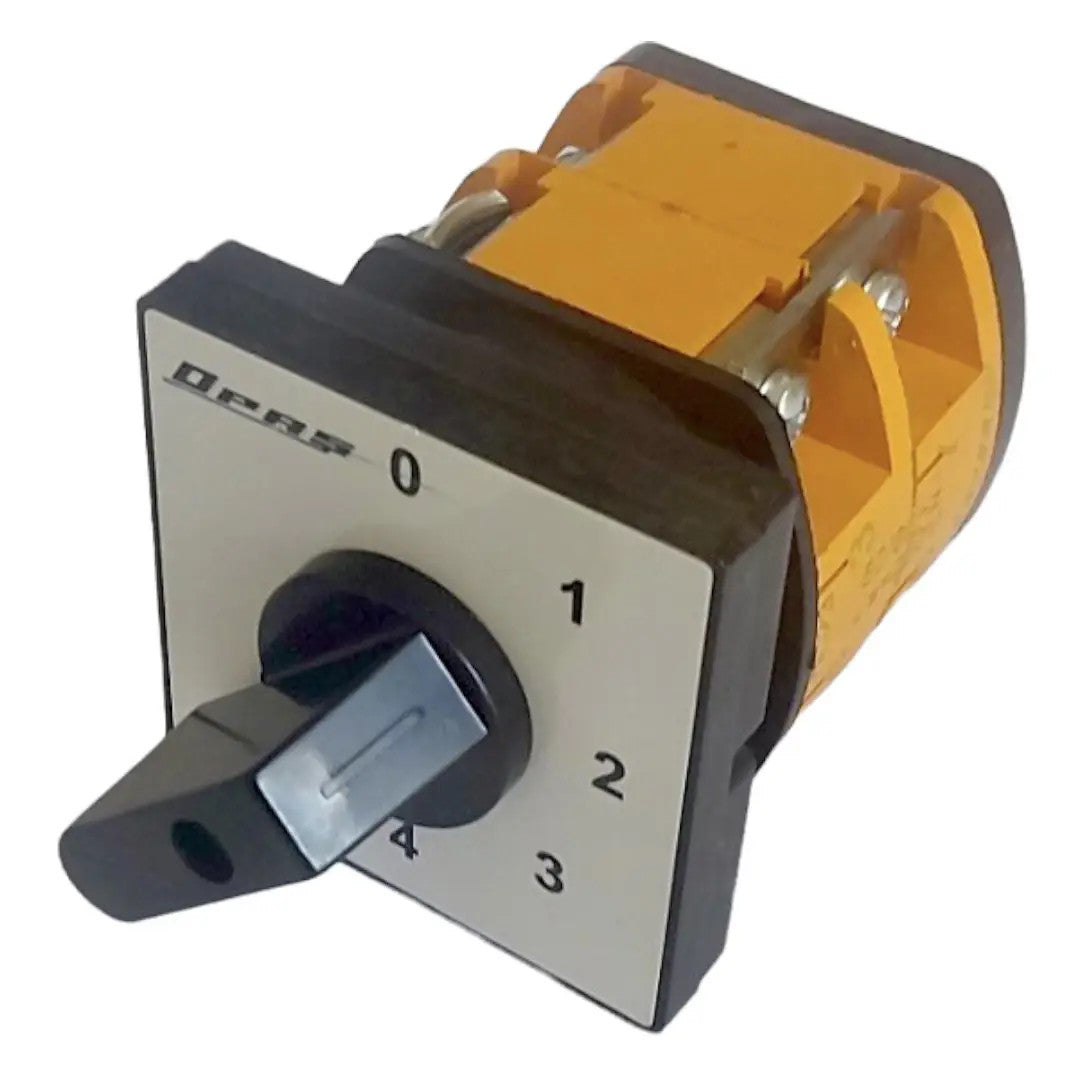

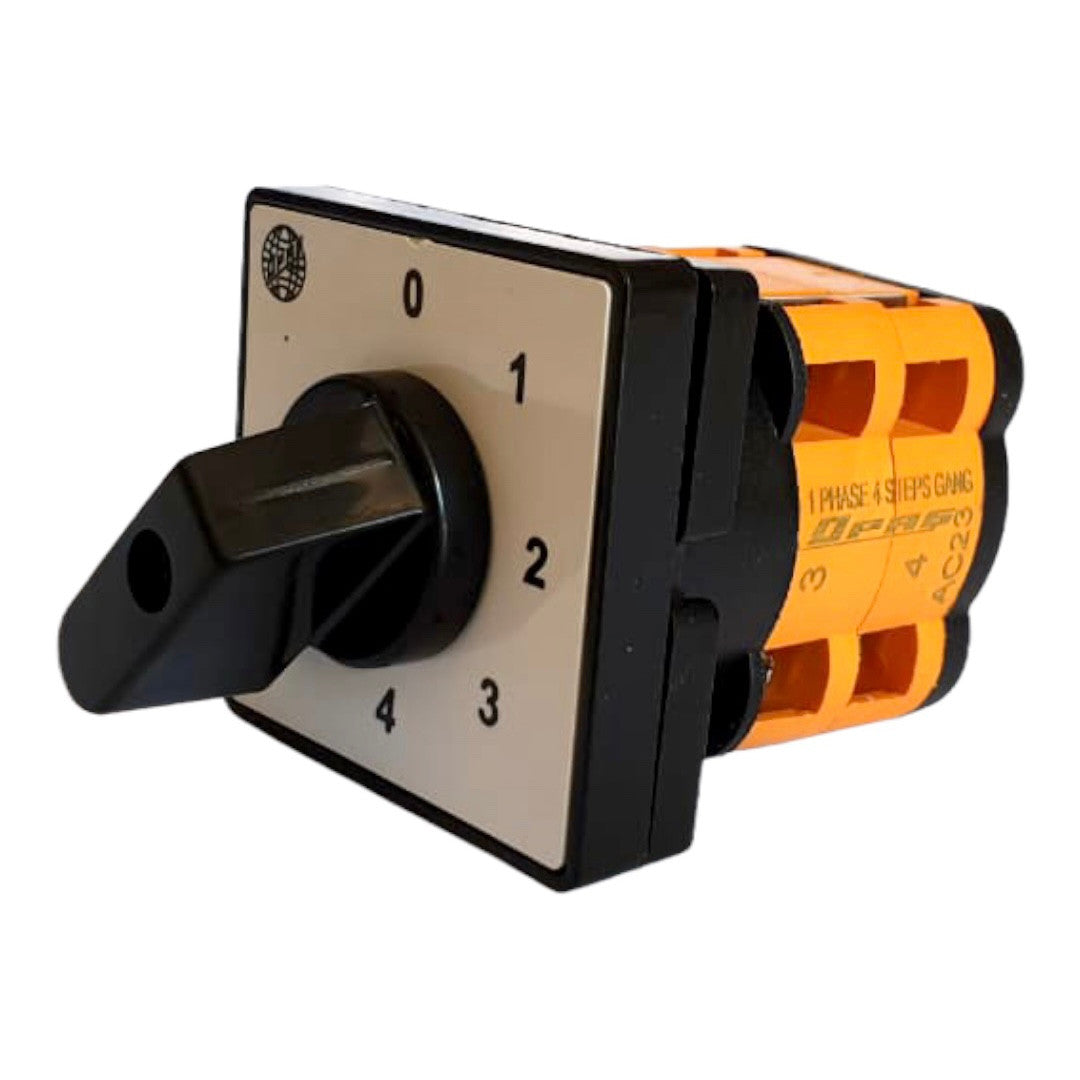

0-1-2-3-4 batch cam switch - OPAŞ

Product description

Batch switches are designed for manual switching of low-voltage circuits.
They are used to create main and control circuits, for switching electric motors and other low-power electrical devices on and off.

Switch advantages:

• Compact size

• High electrical and mechanical durability.

• Multi-position control for different operating modes

Use of multi-position switch:

• The 0-1-2-3-4 scheme allows switching between different device modes (e.g., speed, temperature).

• Ideal for sequential connection of three or four heating devices, each 1 kW, 1 kW, 2 kW, 3 kW, or 4 kW power can be created

Technical specifications

• Construction: cam

• Device type: rotary switch

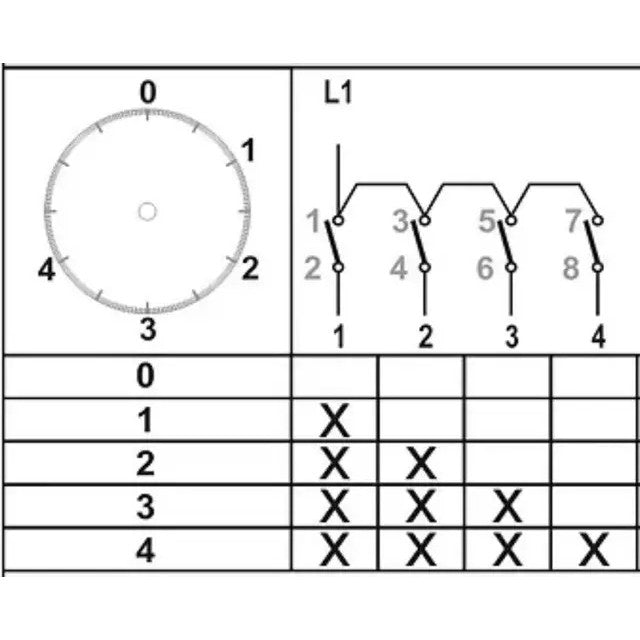

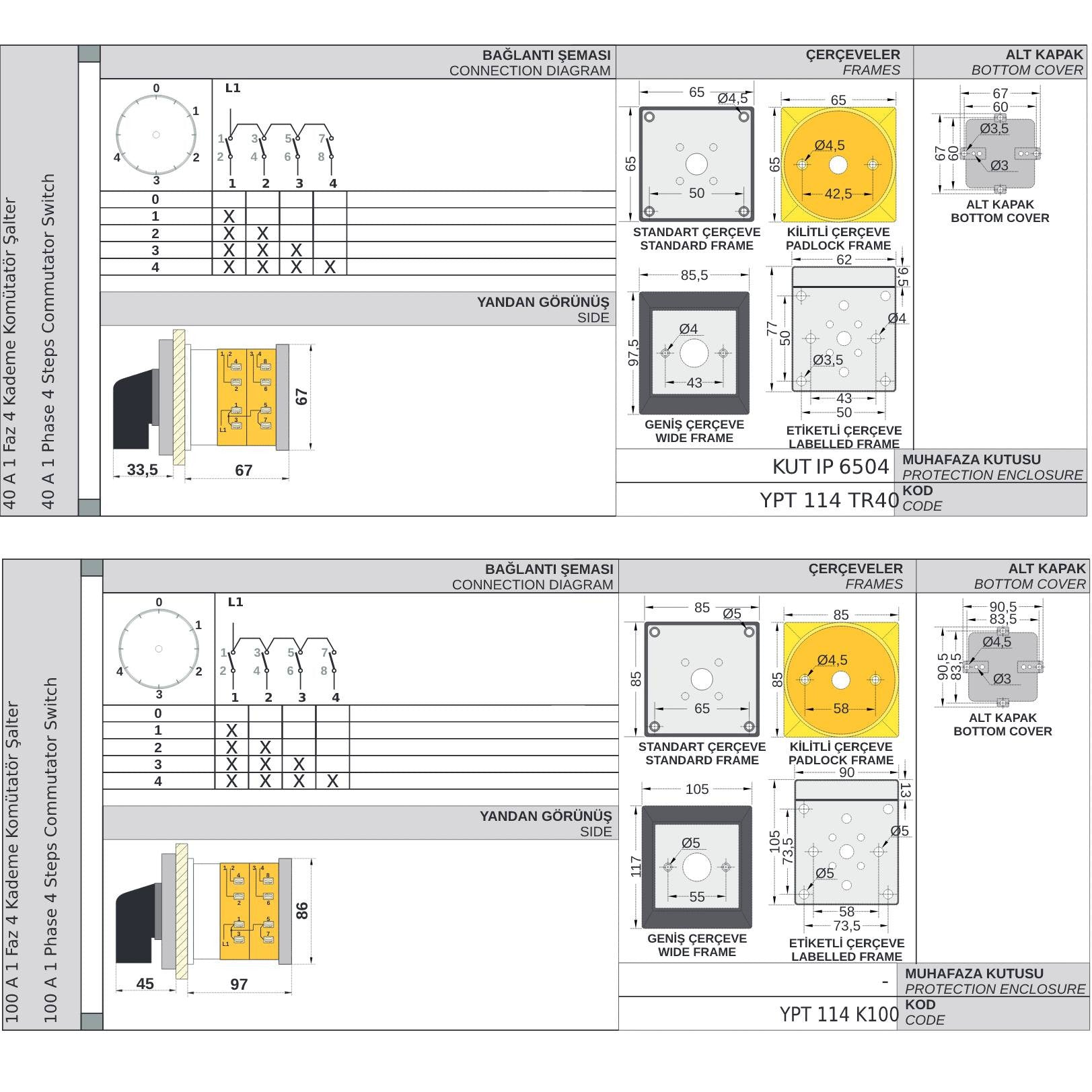

• Wiring diagram: 0-1-2-3-4

• Number of poles: 1

• Number of phases: single-phase

• Locking presence: No

• Protection rating: IP20

• Operating temperature range: -30 to +55 °C

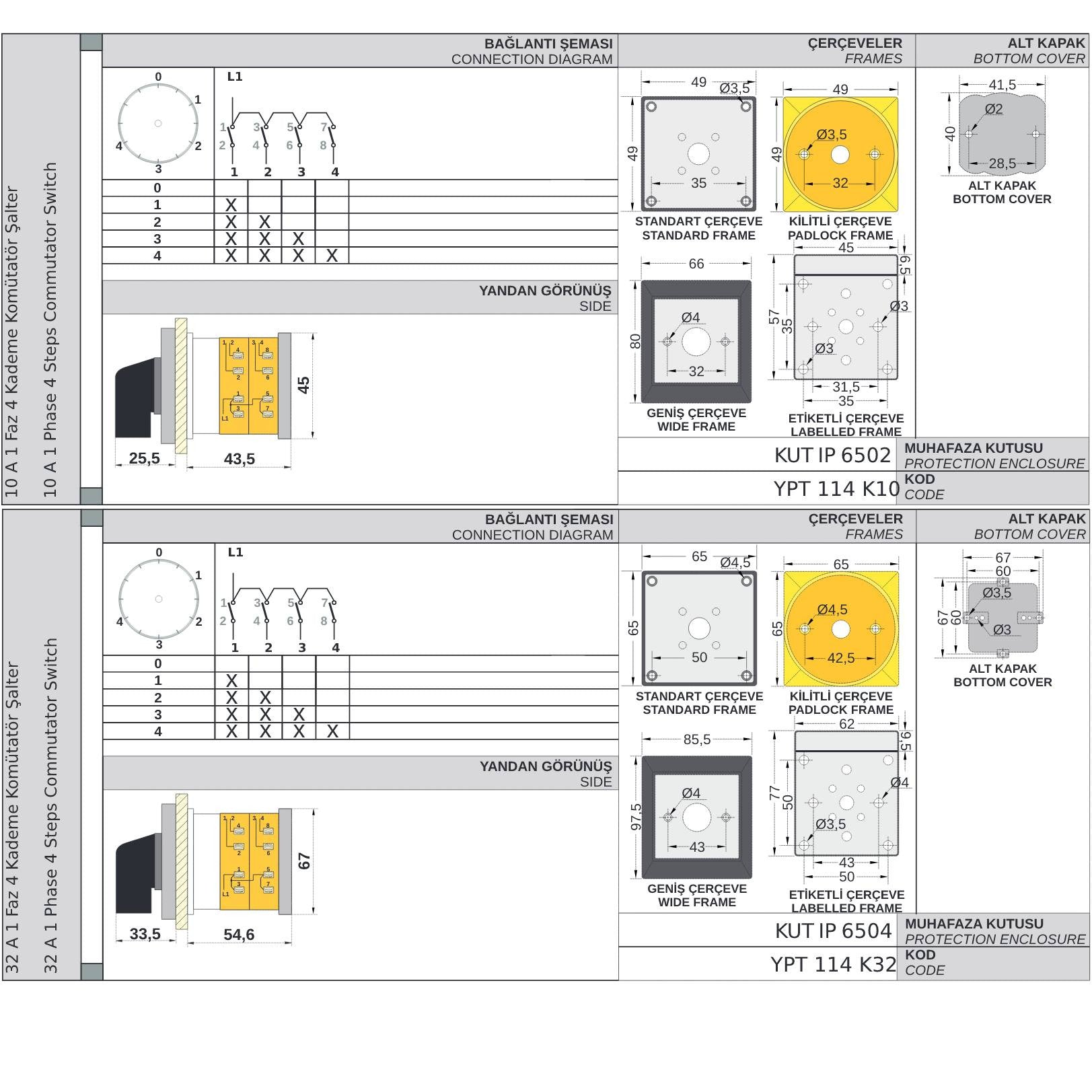

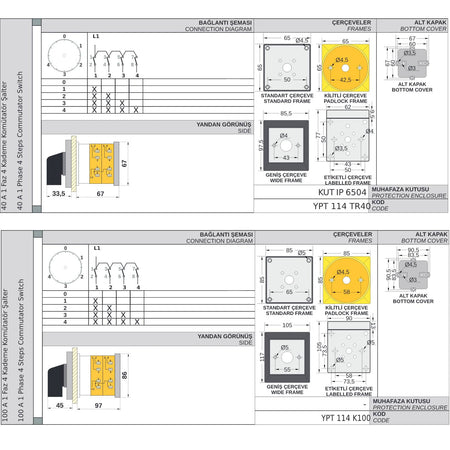

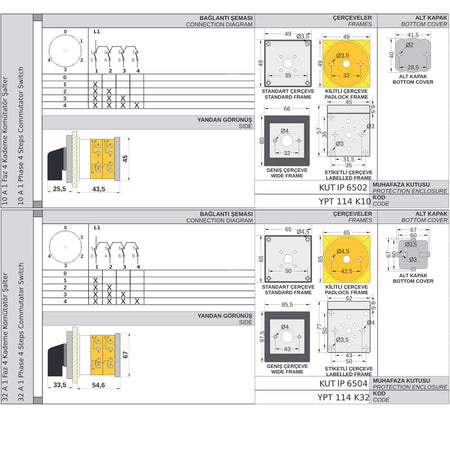

Variants by nominal current
