Product description

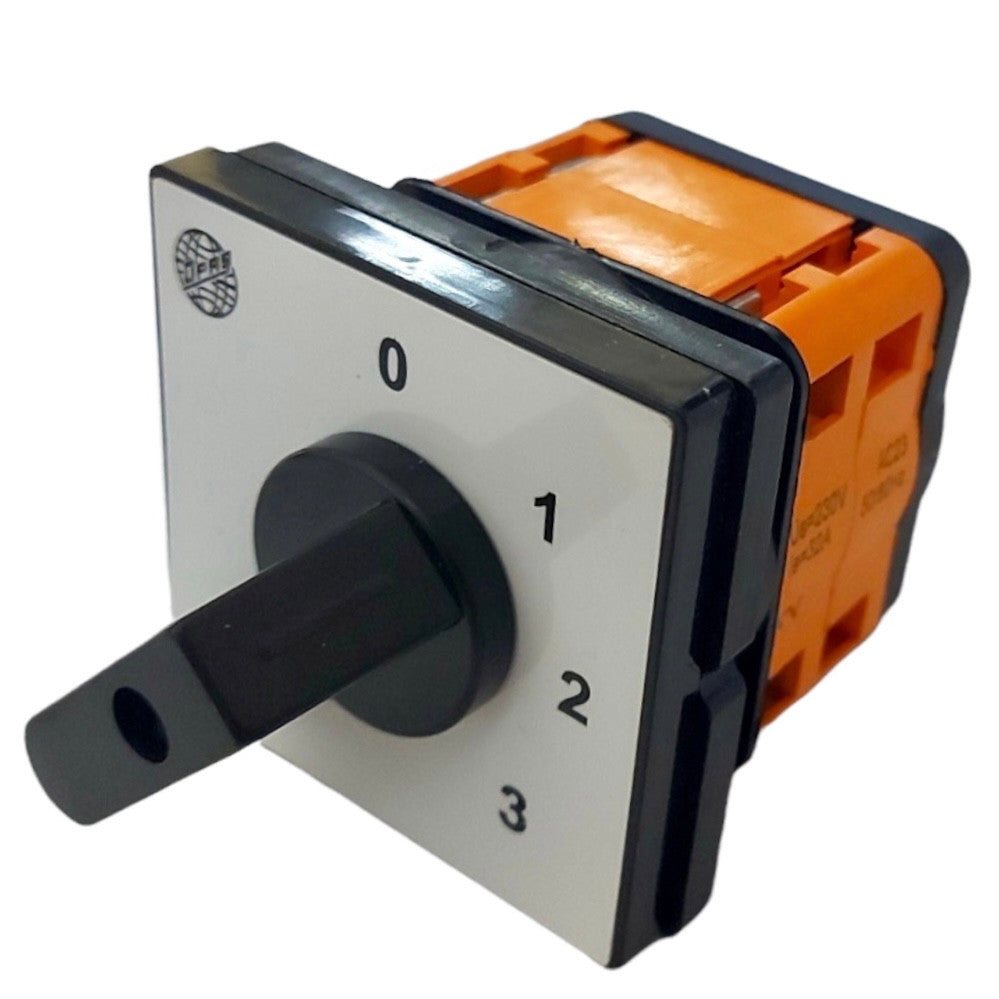

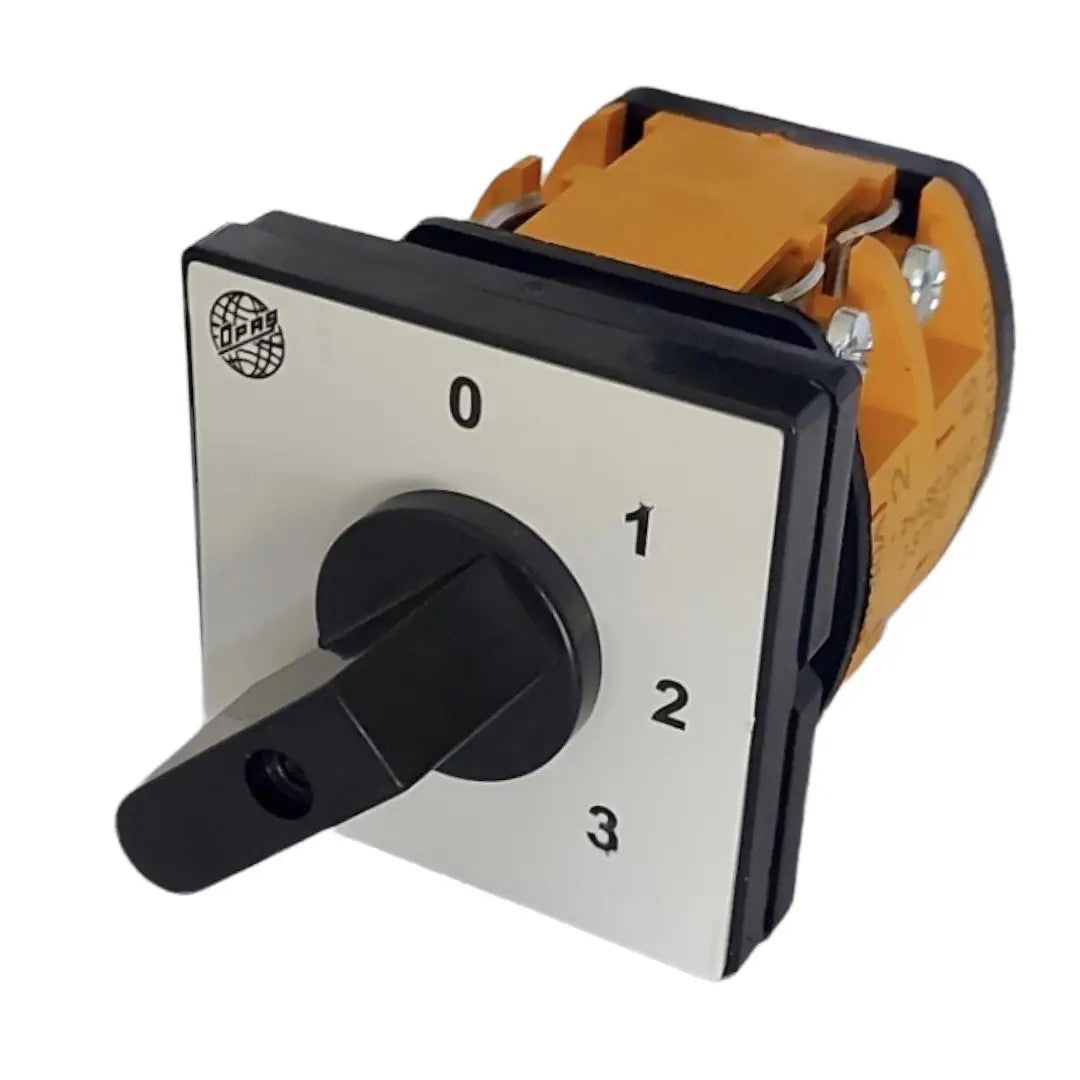

The cam switch is designed for manual control of low-voltage circuits. It is used in main and control circuits to switch electric motors or other low-power devices on and off.
OPAS switches are characterized by compact design, high electrical and mechanical durability, and reliable operation.

The multi-position 0-1-2-3-circuit model allows switching the device between multiple operating modes, such as different power, speed, or temperature levels.

Application example

The switch is suitable, for example, for sequential control of three heating devices (each 1 kW), allowing power regulation:

• 1 kW,

• 2 kW,

• 3 kW.

Technical specifications

• Construction.

• Device type.

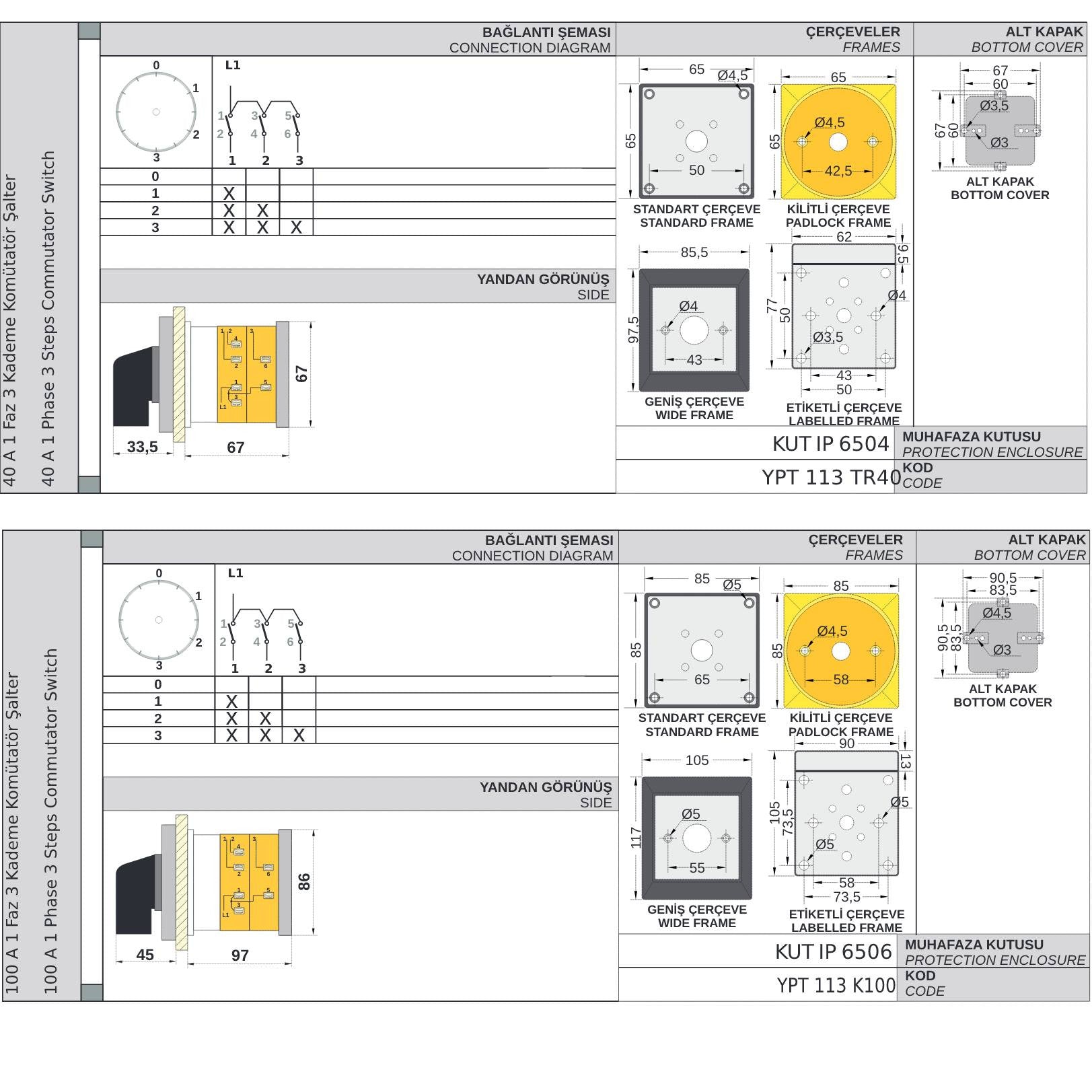

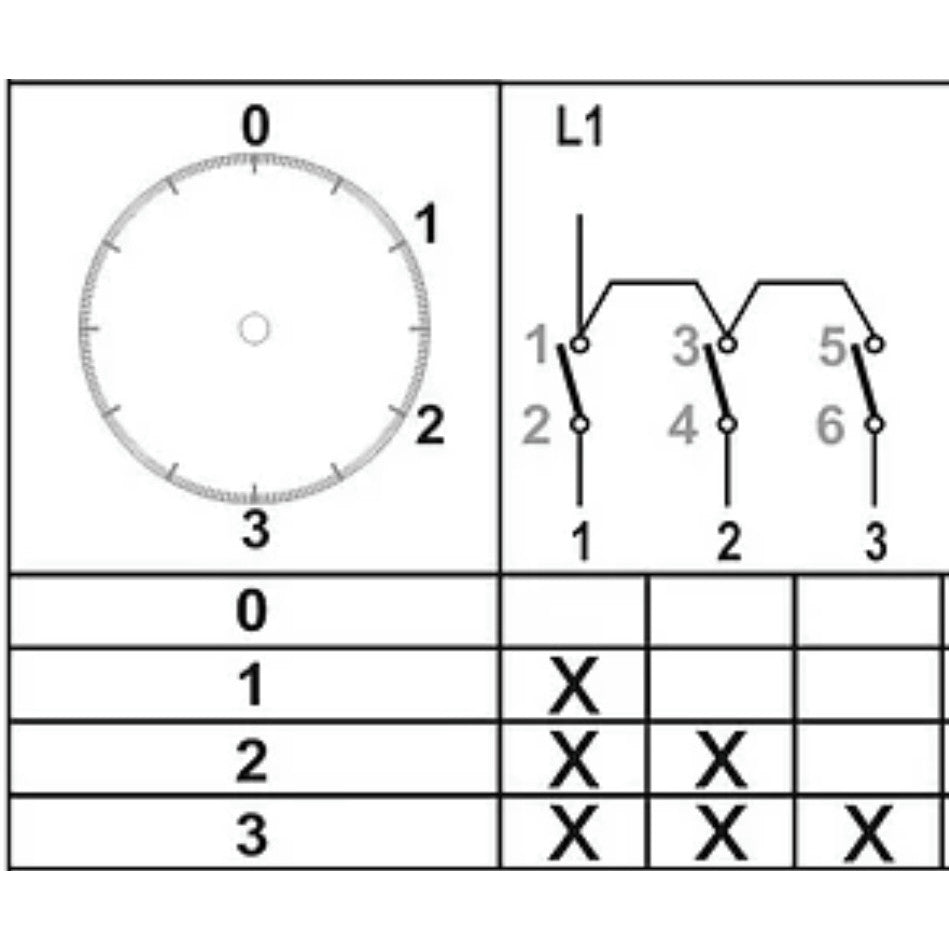

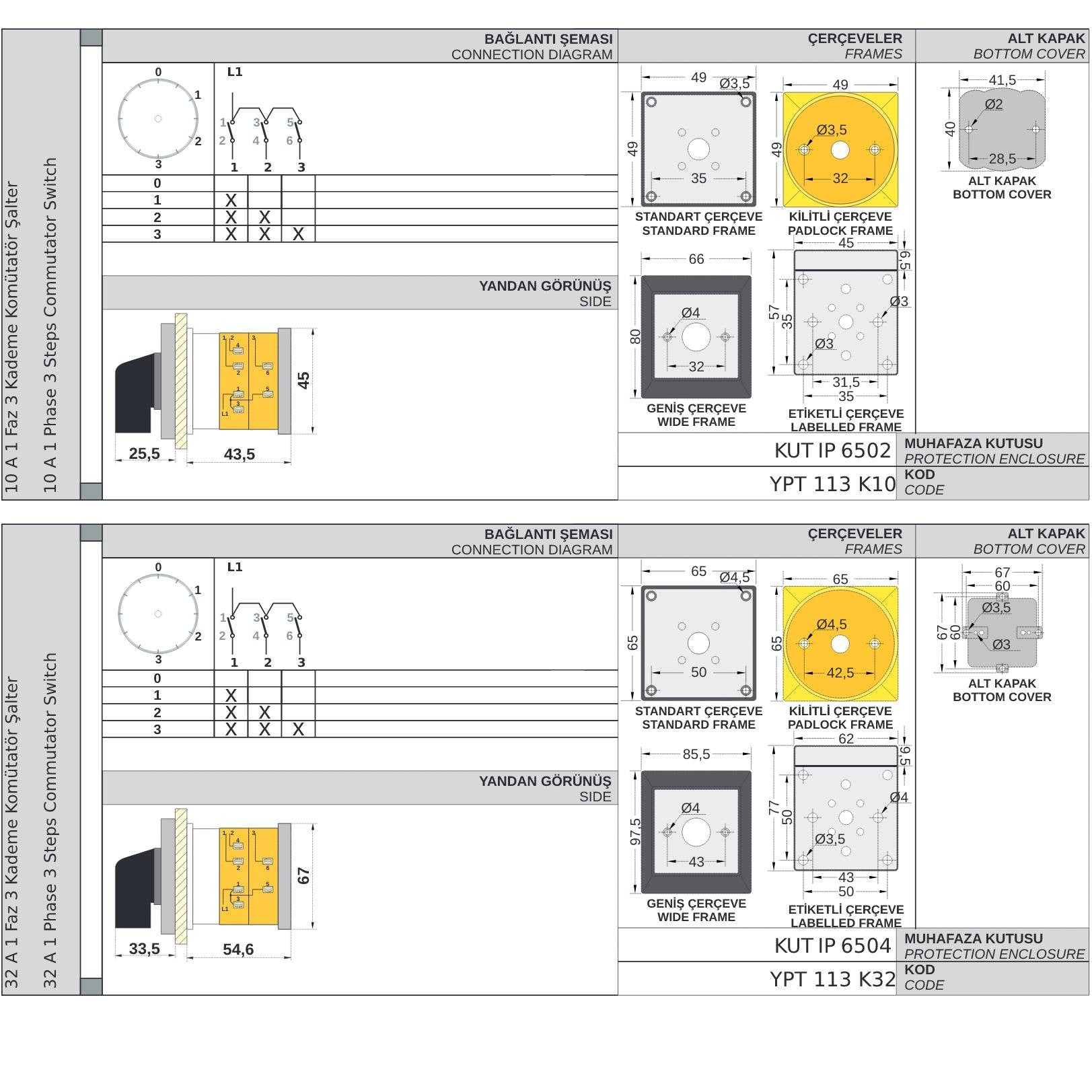

• Wiring diagram: 0 - 1 - 2 - 3

• Number of poles: 1

• Installation type: built-in

• Number of phases: single-phase

• Locking (blocking): No

• Protection rating: IP20

• Operating temperature: -30 to +55 °C

Available current options

• 10 A

• 16 A

• 25 A

• 32 A

• 40 A

• 63 A
