Lae PIR sensor 360°, 9m

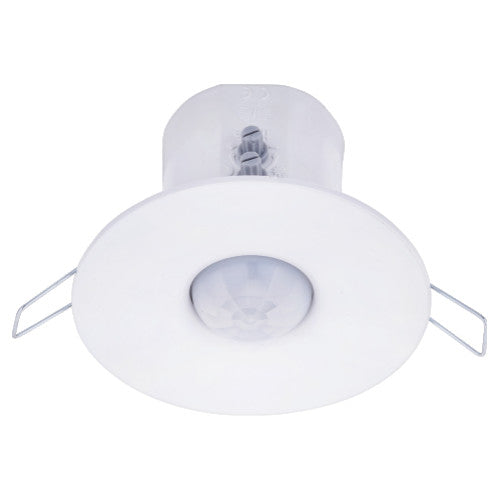

PIR motion sensor on the ceiling, BAFRA, made in Turkey

This motion sensor is used to control lighting using infrared waves, the circuit closes upon detecting movement and lasts for a specified time that we configure in the device. The lighting level at which the sensor activates is also set. A quality product - a great purchase.

The motion sensor is designed for installation in ceilings or skirting boards, where a recess with a diameter of 60 mm and a depth of 100 mm can be made, and it fits perfectly into the general interior.

Specifications:

Power voltage: 230V.

Compatibility with LED sources: yes

Color: white

Protection class: IP20

Maximum power: 1200W

Detection field: 360°

Detection range: up to 9m (depending on working conditions)

Power consumption: 0.5W

Detection type: infrared

Working area: adjustment, 2-240lux

Delay time: adjustment, 1 sec / 5min + -1 sec.

Dimensions: Ø80mm x 50mm

Installation opening size: 60mm
