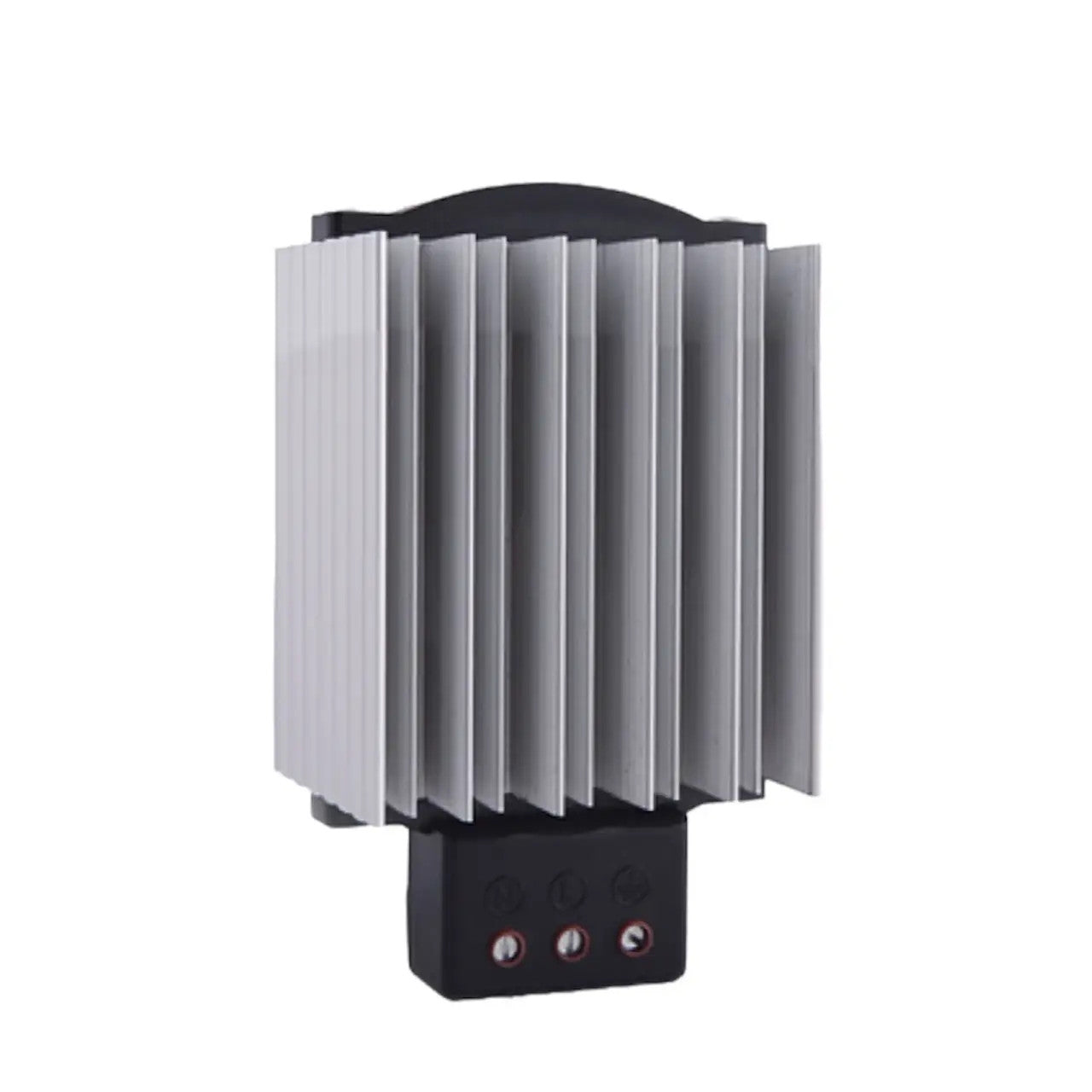

Switchboard heater PTC 30W, PHT030, Plastim

Electric (PTC Body Heater, residual voltage heater) distribution panel heater with anodized aluminum heatsink and overcurrent protection, for DIN rail mounting, 30 watts, 110-220 volts AC or DC, PHT030, Plastim - Made in Turkey.

• Heating power: 30W
• Operating voltage: 100-250 V AC/DC
• Maximum current: 2A
• Self-regulating PTC resistor
• Overcurrent protection: electronic thermal overload relay
• Electrical connection: 3-pole N-L-E terminal
• IEC protection class: Class II
• Degree of protection: IP20
• Operating temperature: -45 / +70 °C

• Storage temperature: -45 / +70 °C

• Heatsink: aluminum profile, anodized

• Mounting: 35 mm DIN rail

• Mounting position: Best efficiency in vertical position

• External dimensions: 128x70x59mm

• Weight: 0.41 kg

Heating elements are used to maintain temperature and reduce humidity in electrical cabinets, automation cabinets, ATMs, payment terminals, and other electronic devices. Previously, incandescent lamps were used for these purposes - but it is clear that this method does not meet modern stringent requirements for electrical equipment and electronics. Today, almost all manufacturers are switching to PTC heaters, which not only provide heating but also ensure safety and reliability.

All heaters are equipped with electronic surface overheat protection, which provides an additional guarantee for safe operation.

Due to the high demands on heating cabinets, Plastim has paid great attention to the selection of component suppliers. For example, the supplier of PTC heaters is the same as for Schneider Electric, and the terminal block for electrical connection of all components is custom-made by the Italian company KORNER. The plastic from which this block is made has a very important characteristic: when heated, it not only retains its shape and does not deform, but also emits no odors and thus releases no harmful carcinogenic substances into the atmosphere. Agree that such an approach to supplier selection favorably distinguishes high-quality Plastim heaters from inexpensive Chinese analogs.

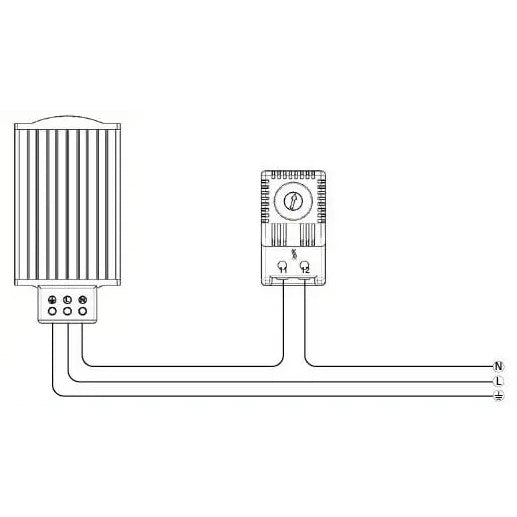

To ensure automatic temperature maintenance with this heater, you will need either a simple bimetal thermostat or a more complex thermostat. Both devices can be purchased on our website:
