Switchboard heater PTC 75W, PHT075, Plastim

Online payment by card - after completing your order, you will be redirected to the payment gateway, payment confirmation will be sent to you by email

Arrival - payment according to the payment order, you pay the driver of the transport company

By transfer - a prepayment invoice will be sent to your email address no later than the next business day, with the bank account number that you enter when making the payment.

By invoice - this payment option is used by partners who have a framework agreement with our company.

If you want to use the last 2 methods, call our manager and he will give you instructions on how to receive an invoice with or without VAT.

The electrical appliances we offer meet high quality standards, have a 24-month warranty, and meet all EU requirements.

In the case of advertising, no fees are charged for returning the goods.

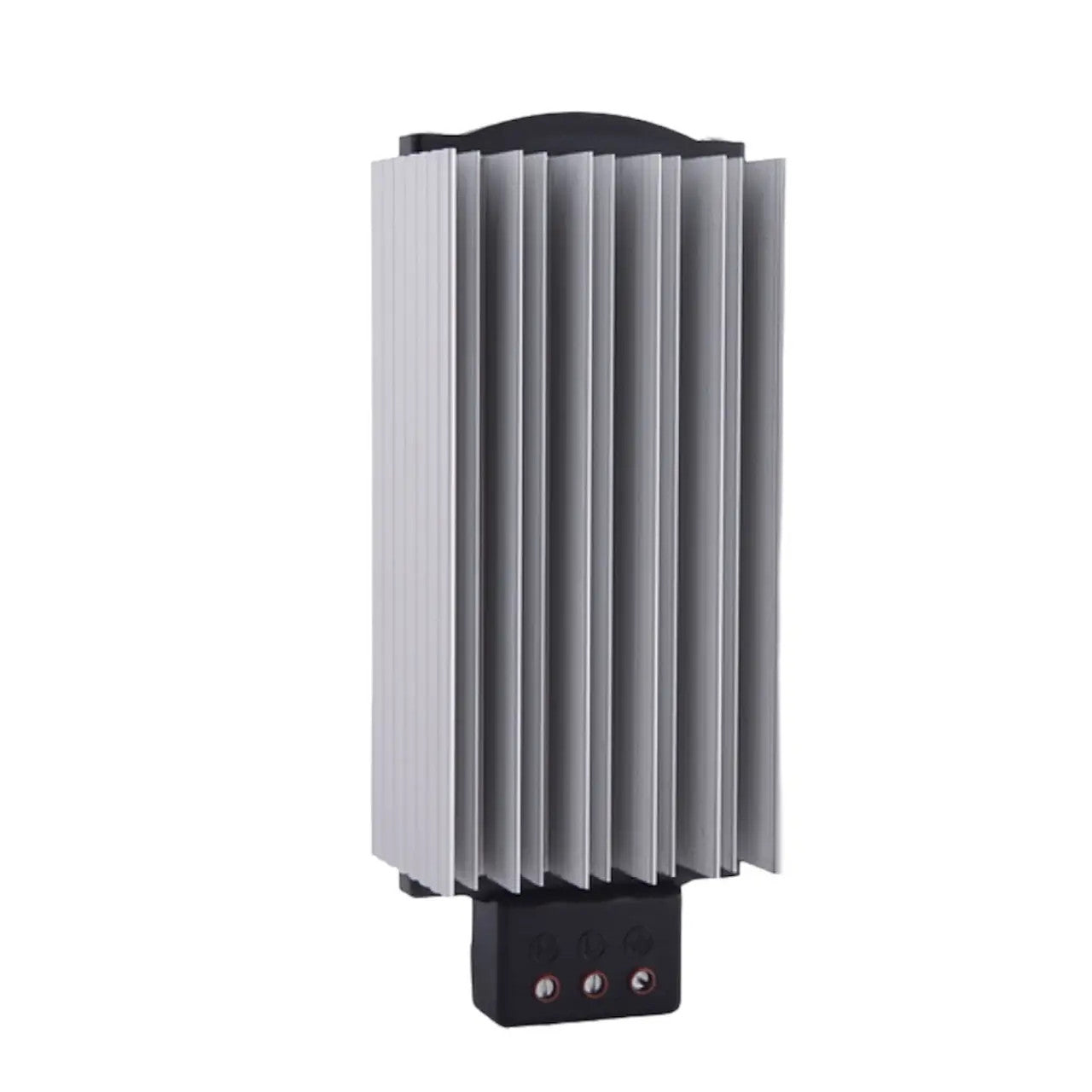

Electric (PTC Body Heater, post-test heater) switchboard heater with anodized aluminum cooling base and overcurrent protection, for DIN rail mounting, 75 watts, 110-220 volts AC or DC, PHT075, Plastim - made in Turkey.

• Heating power: 75W
• Operating voltage: 100-250 V AC/DC
• Maximum current: 4A
• Heating element type: self-regulating PTC resistor
• Overcurrent protection: electronic thermal overload relay
• Electrical connection: 3-pole NLE terminal
• IEC protection class: Class II
• Protection level: IP20
• Operating temperature: -45 / +70 °C

• Storage temperature: -45 / +70 °C

• Heat sink: aluminum profile, anodized

• Installation: 35 mm DIN rail

• Installation position: Best efficiency in vertical position

• External dimensions: 178x70x59mm

• Weight: 0.54 kg

Heating elements are used to maintain temperature and reduce humidity in electrical panels, automation cabinets, ATMs, payment terminals and other electronic devices. Previously, incandescent lamps were used for these purposes - but it is clear that this method does not guarantee compliance with modern stringent requirements for electrical equipment and electronics. Today, almost all manufacturers are switching to PTC heaters, which not only provide heating, but also ensure safety and reliability.

All heaters are equipped with electronic surface overheating protection, which provides an additional guarantee of safe operation.

Due to the high demands placed on heating cabinets, Plastim has paid great attention to the selection of component suppliers. For example, the supplier of PTC heaters is the same as Schneider Electric, and the terminal block for electrical connection of all components is custom-made by the Italian company KORNER. The plastic from which this block is made has a very important property: when heated, it not only retains its shape and does not deform, but also does not emit any odors and, therefore, does not emit any harmful carcinogenic substances into the atmosphere. Agree that this approach to the selection of suppliers favorably distinguishes high-quality Plastim heaters from cheap Chinese analogues.

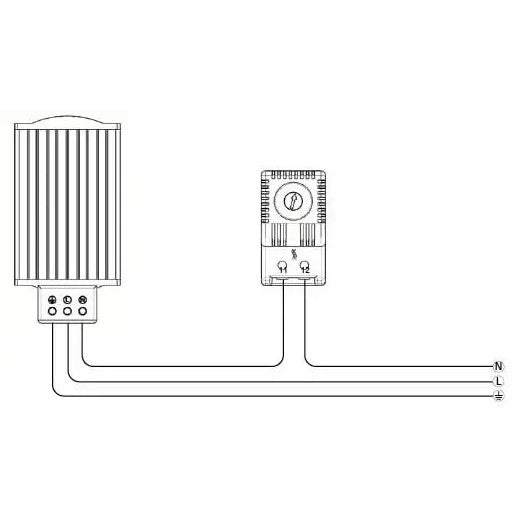

To ensure that this heater maintains its temperature automatically, you will need either a simple bimetallic thermostat or a more sophisticated temperature controller. Both devices can be purchased on our website.
