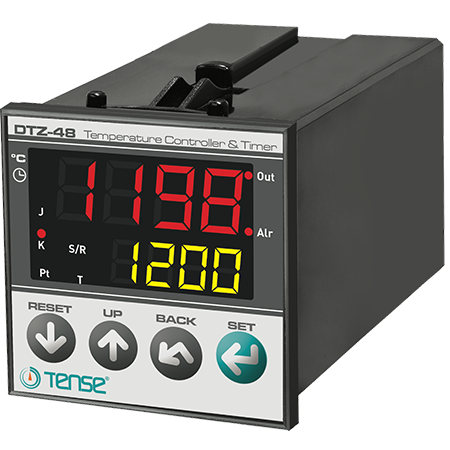

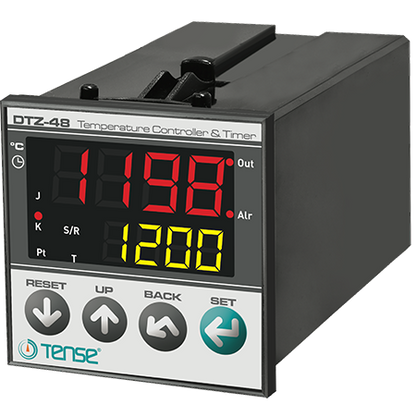

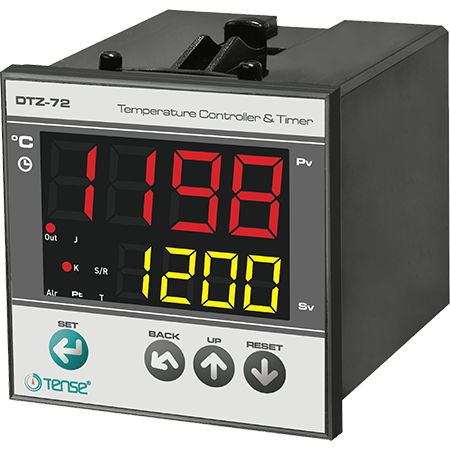

Microprocessor PID temperature controller with timer for panel mounting 1750°C

PID temperature controller for panel mounting with built-in timer, measuring range -100°C ... +1750°C, resolution / step 0.1ºC (made in Turkey, TENSE)

Control and monitoring of heating, air conditioning and ventilation systems, building automation, and thermal processes in industrial plants.

The temperature controller is implemented with on/off or PID control. The controller provides self-optimization, which prevents the process values from being exceeded.

• Automatic tuning of PID parameters

• Sensor type: T/C (J,K,T,S,R), Pt100
• Selectable control type: P, PI, PD, PID or ON-OFF

• Automatic "skip" removal in PID mode

• Anti-windup

• Cooling mode OUT switch-on delay

• Password protection

• EEPROM memory for storing settings

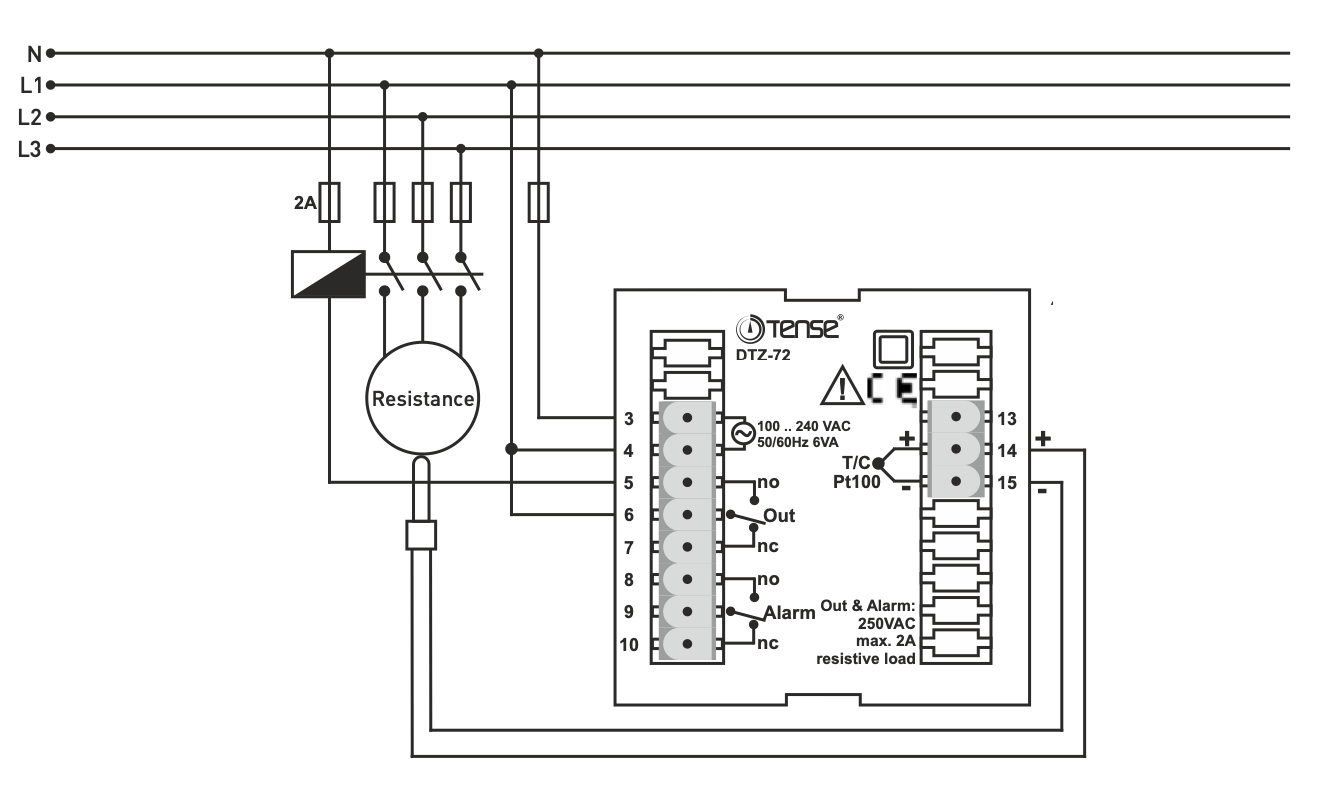

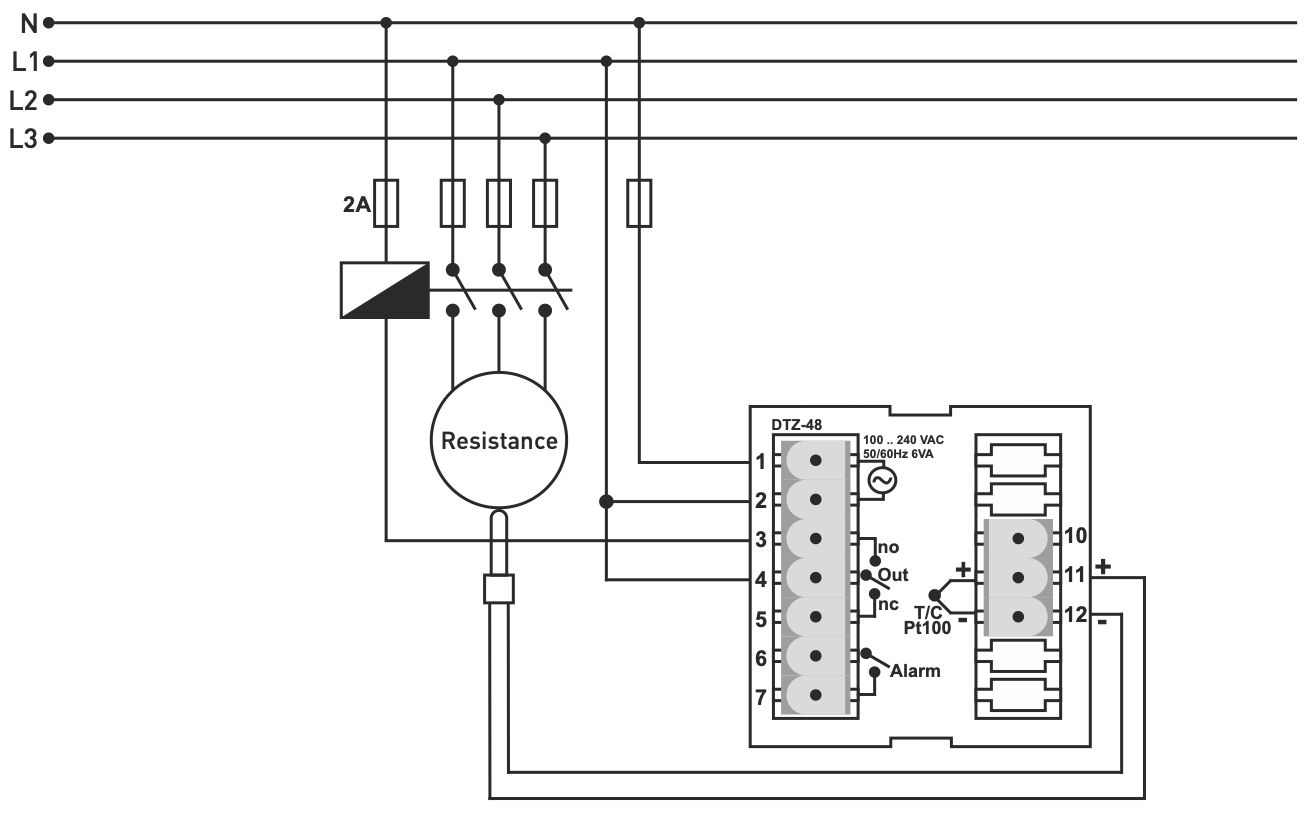

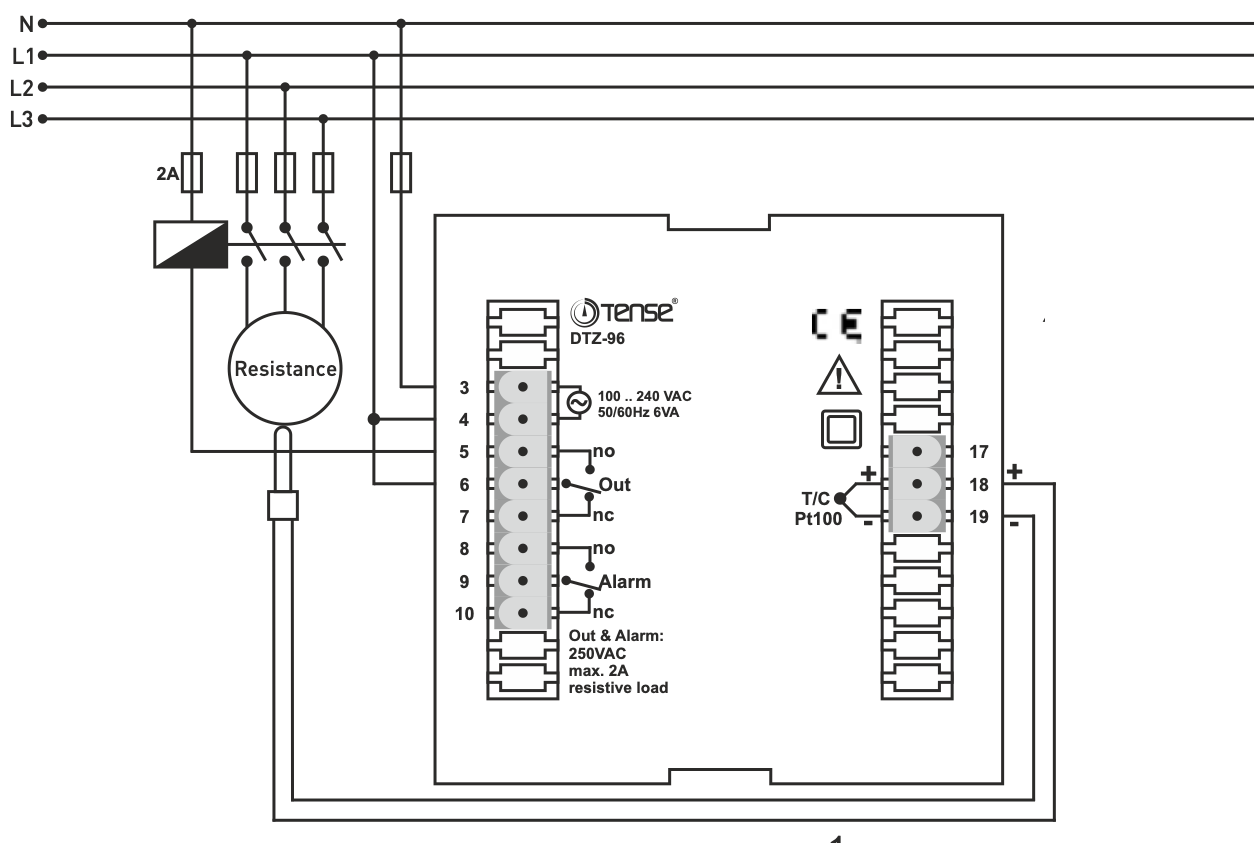

• Relay OUT and ALARM (NO+NC) outputs 250VAC, 2A (ALARM ON only for DTZ-48)

The measuring range depends on the sensor and can be set using the buttons on the temperature controller.

The temperature controller display is a high-contrast display that can only be read accurately in poor conditions. In addition to the control output, the temperature controller has an additional alarm signal that closes a potential-free contact if the value is exceeded or not reached.

Don't forget to order our temperature sensors - thermocouple type J Fe-Const (metric 6/8) with temperature measurement scale: -100 °C - +600 °C. Available with 1 m, 1.5 m, 2 m, 2.5 m, 3 m, 4 m and 5 m cable lengths.
