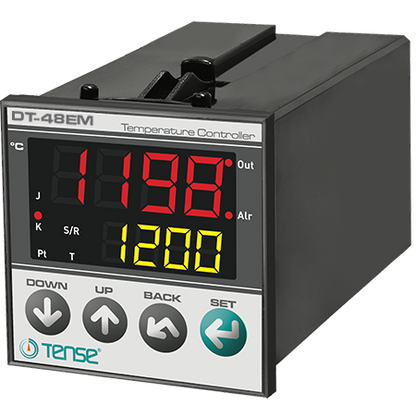

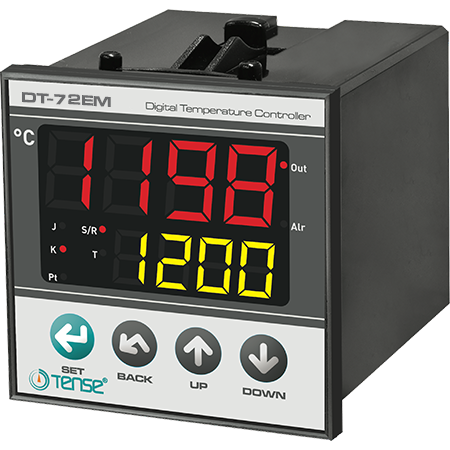

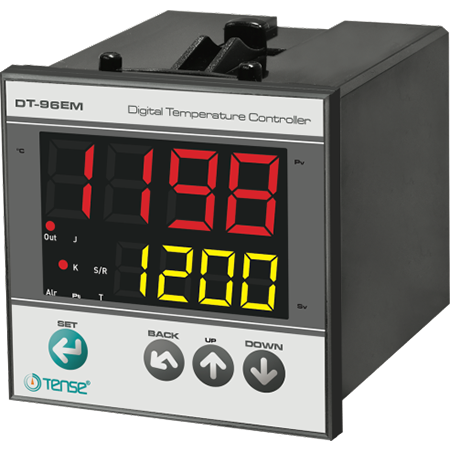

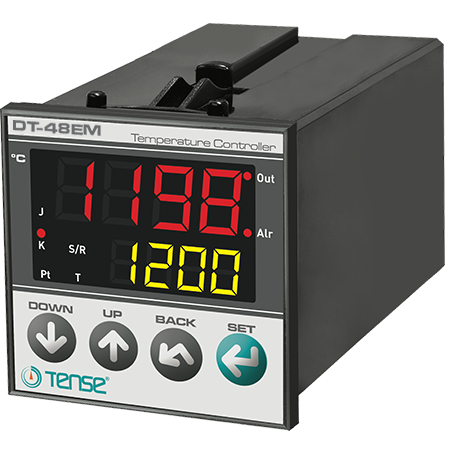

Microprocessor PID temperature controller for relay panel + SSR output up to 1750 °C

PID temperature controller for panel mounting, relay + SSR outputs, measuring range -100°C ... +1750°C, resolution / step 0.1ºC (made in Turkey, TENSE)

Control and monitoring of thermal processes in heating, air conditioning and ventilation systems, building automation, and industrial equipment.

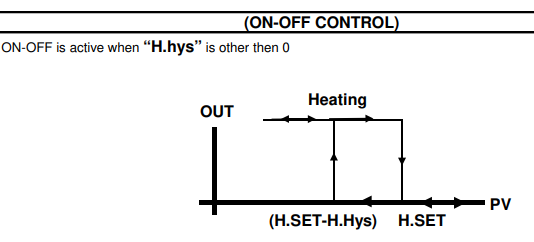

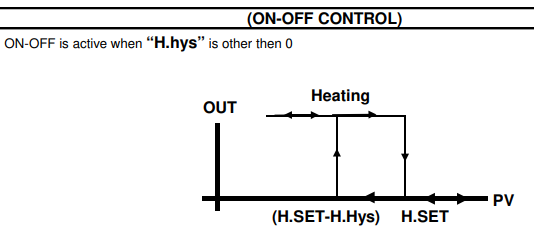

The temperature controller is implemented with on/off or PID control. The controller provides self-optimization to prevent the process from overshooting.

• Automatic tuning of PID parameters

• Sensor type: T/C (J,K,T,S,R), Pt100
• Selectable control type: P, PI, PD, PID or ON-OFF.

• Automatic "skip" removal in PID mode.

• Anti-windup

• OUT switch-on delay in cooling mode

• Password protection

• EEPROM memory for storing settings

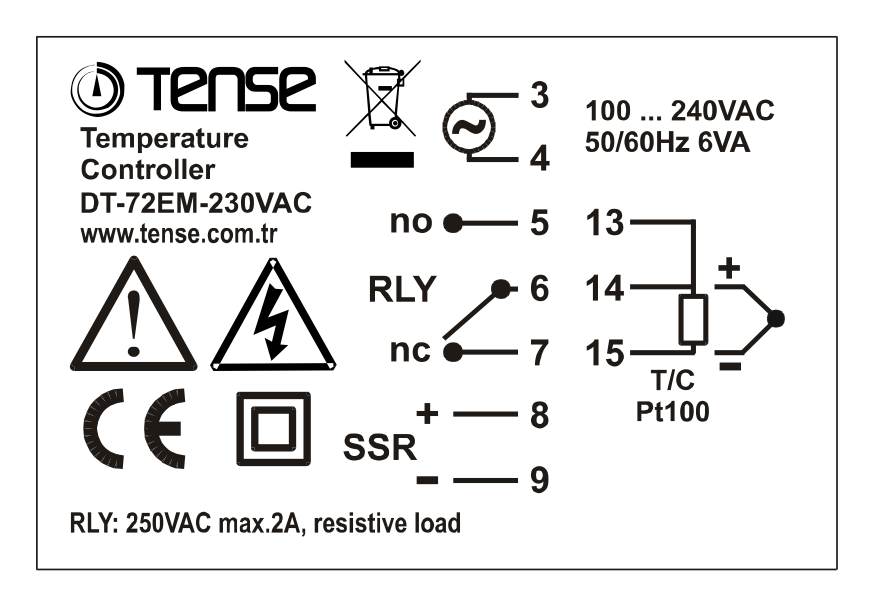

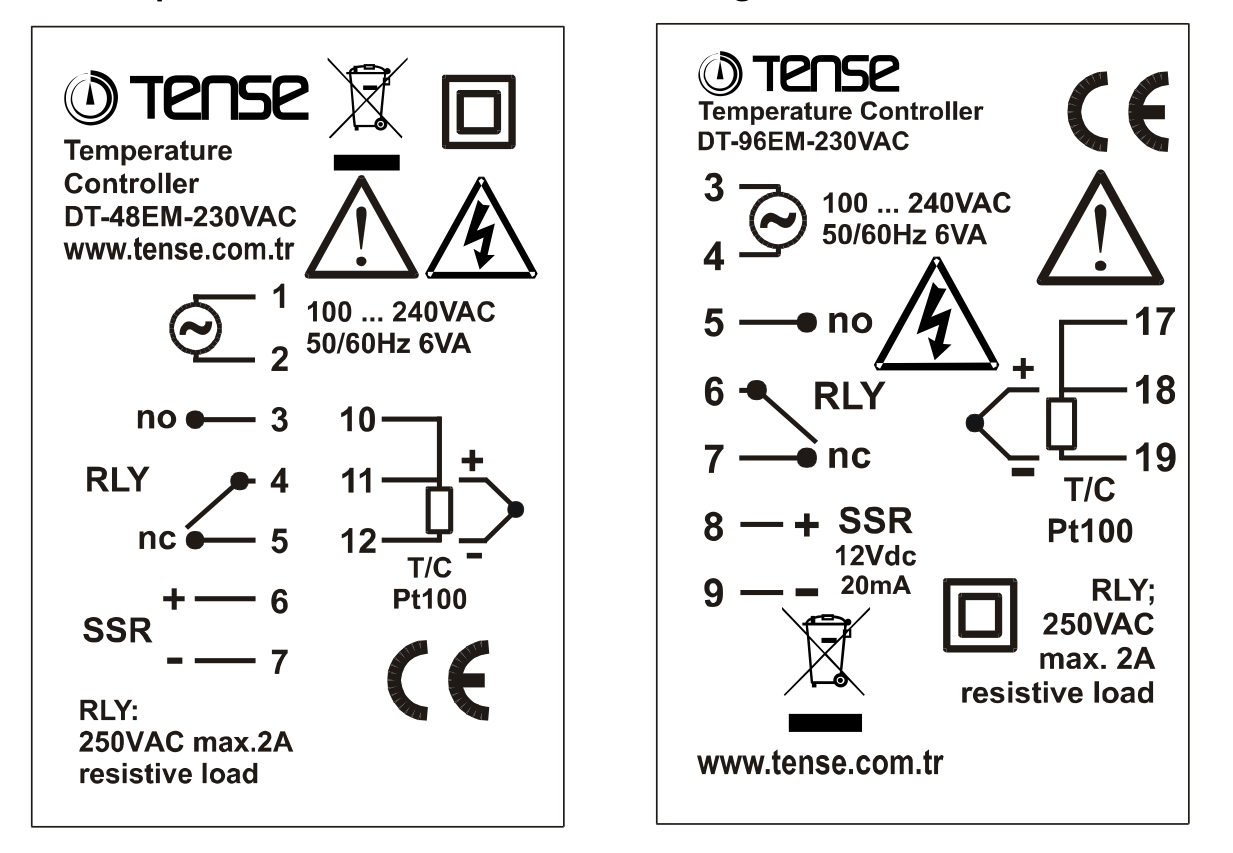

• Relay outputs OUT (NO+NC) 250VAC, 2A/ SSR max 12Vdc, 20mA

The measuring range depends on the sensor and can be set using the buttons on the temperature controller.

The temperature controller display is a high-contrast display that can only be read accurately in poor conditions.

Don't forget to order our temperature sensors - J-type Fe-Const thermocouples (metric 6/8) with a temperature measurement range of -100 °C - +600 °C. Available with 1 m, 1.5 m, 2 m, 2.5 m, 3 m, 4 m and 5 m cable lengths.
