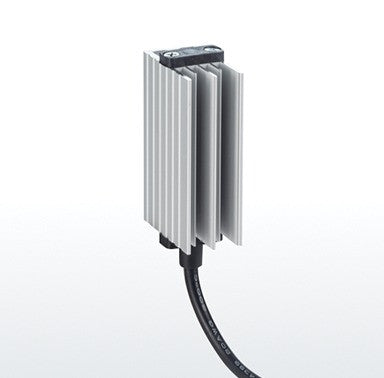

Mini switchboard heater PTC 15W, MPHT15, Plastim

Mini Electric (PTC Body heater, post-tension heater) Distribution Box Heater with Anodized Aluminum Heat Storage and Overcurrent Protection, for DIN Rail Mounting, 15 Watts, 110-220 Volts AC or DC, MPHT15, Plastim - Made in Turkey.

• Heating power: 15W

• Operating voltage: 100-250V AC/DC

• Max current: 2A

• Heating element type: self-regulating PTC resistor

• Overcurrent protection: electronic thermal overload relay.

• Electrical connection: 30 cm long wire lead, N-L-E

• IEC protection class: Class II

• Protection degree: IP20

• Operating temperature: -45 / +70 °C

• Storage temperature: -45 / +70 °C

• Heat sink: aluminum profile, anodized

• Installation: 35 mm DIN rail

• Installation position: Best efficiency in vertical position

• External dimensions: 60x50x27mm

• Weight: 0.11 kg

Heating elements are used to maintain temperature and reduce humidity in electrical cabinets, automation cabinets, ATMs, payment terminals, and other electronic devices. Previously, incandescent lamps were used for these purposes - but it is clear that this method does not meet modern stringent requirements for electrical equipment and electronics. Today, almost all manufacturers are switching to PTC heaters, which not only provide heating but also ensure safety and reliability.

All heaters are equipped with electronic surface overheating protection, which provides an additional guarantee for safe operation.

Due to high demands on cabinet heaters, Plastim has paid great attention to the selection of component suppliers. For example, the PTC heater supplier is the same as for Schneider Electric.

Agree, such an approach to supplier selection distinguishes Plastim's quality heaters from cheap Chinese analogs.

To ensure automatic temperature maintenance with this heater, a simple bimetallic thermostat or a more complex temperature controller is required. Both devices can be purchased on our website.
