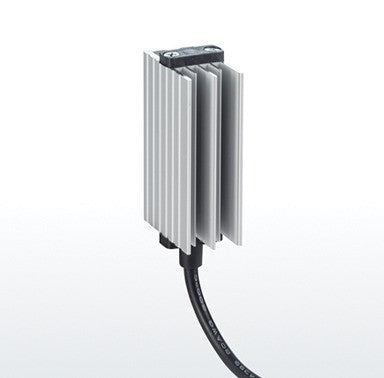

Mini switchboard heater PTC 25W, MPHT25, Plastim

Mini electric (PTC Body heater, post-tension heater) switchboard heater made of anodized aluminum with heat storage and overcurrent protection, for DIN rail mounting, 25 watts, 110-220 volts AC or DC, MPHT25, Plastim - made in Turkey.

• Heating power: 25 W

• Operating voltage: 100-250V AC/DC

• Maximum current: 2A

• Heating element type: self-regulating PTC resistor

• Overcurrent protection: electronic thermal overload relay.

• Electrical connection: 30 cm long power cord, NLE

• IEC protection class: Class II

• Protection level: IP20

• Operating temperature: -45 / +70 °C

• Storage temperature: -45 / +70 °C

• Heat sink: aluminum profile, anodized

• Installation: 35 mm DIN rail

• Installation position: Best efficiency in vertical position

• External dimensions: 70x50x27mm

• Weight: 0.12 kg

Heating elements are used to maintain temperature and reduce humidity in electrical panels, automation cabinets, ATMs, payment terminals and other electronic devices. Previously, incandescent lamps were used for these purposes - but it is clear that this method does not guarantee compliance with modern stringent requirements for electrical equipment and electronics. Today, almost all manufacturers are switching to PTC heaters, which not only provide heating, but also ensure safety and reliability.

All heaters are equipped with electronic surface overheating protection, which provides an additional guarantee of safe operation.

Due to the high demands placed on heating cabinets, Plastim has paid great attention to the selection of component suppliers. For example, the supplier of PTC heaters is the same as Schneider Electric.

Agree that this approach to the selection of suppliers distinguishes Plastim's high-quality heaters from cheap Chinese analogues.

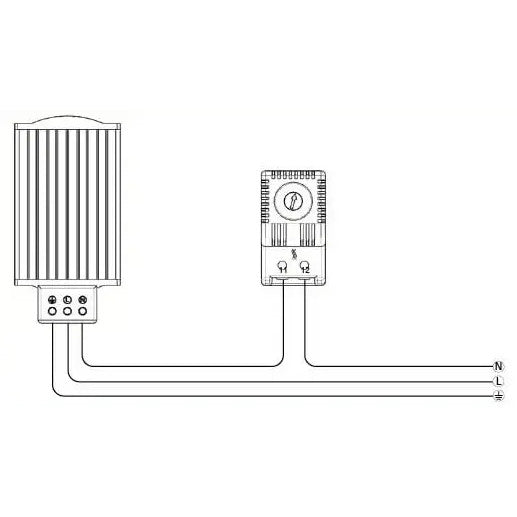

To ensure automatic temperature maintenance with this heater, you will need either a simple bimetallic thermostat or a more complex temperature controller... Both devices can be purchased on our website.
