Modbus Gateway RS485 TCP/IP 230V interface converter

RS485 TCP IP/ ETHERNET / WAN / LAN protocol converter. Gateway protocol converter for connecting RS (MODBUS) port devices to a computer via a local network or internet connection. ETH-MOD-T. TENSE Turkey

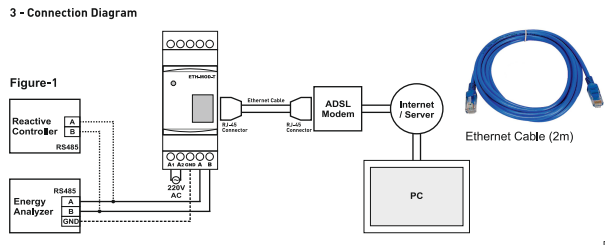

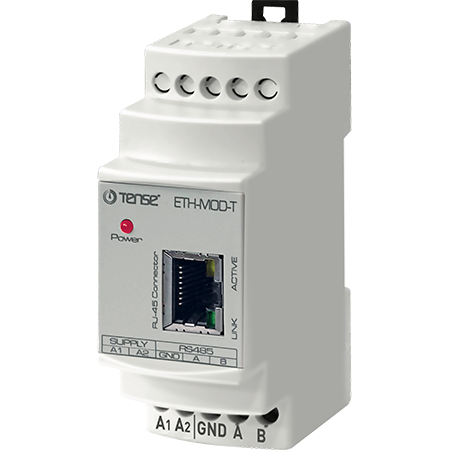

The ETH-MOD-T protocol converter manufactured by TENSE Turkey is a compact gateway for connecting any devices with an RS-485 port to a local network, SCADA systems, OPC internet servers via modem.

The RS-485/Ethernet gateway has several features that allow it to be used in most analogues (e.g., ET-485, VTR-E, ET-485):

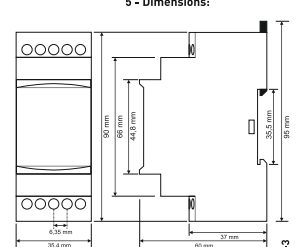

Compact protocol converter size - only 2 modules wide - 35 mm;

fast gateway installation on standard DIN rail;

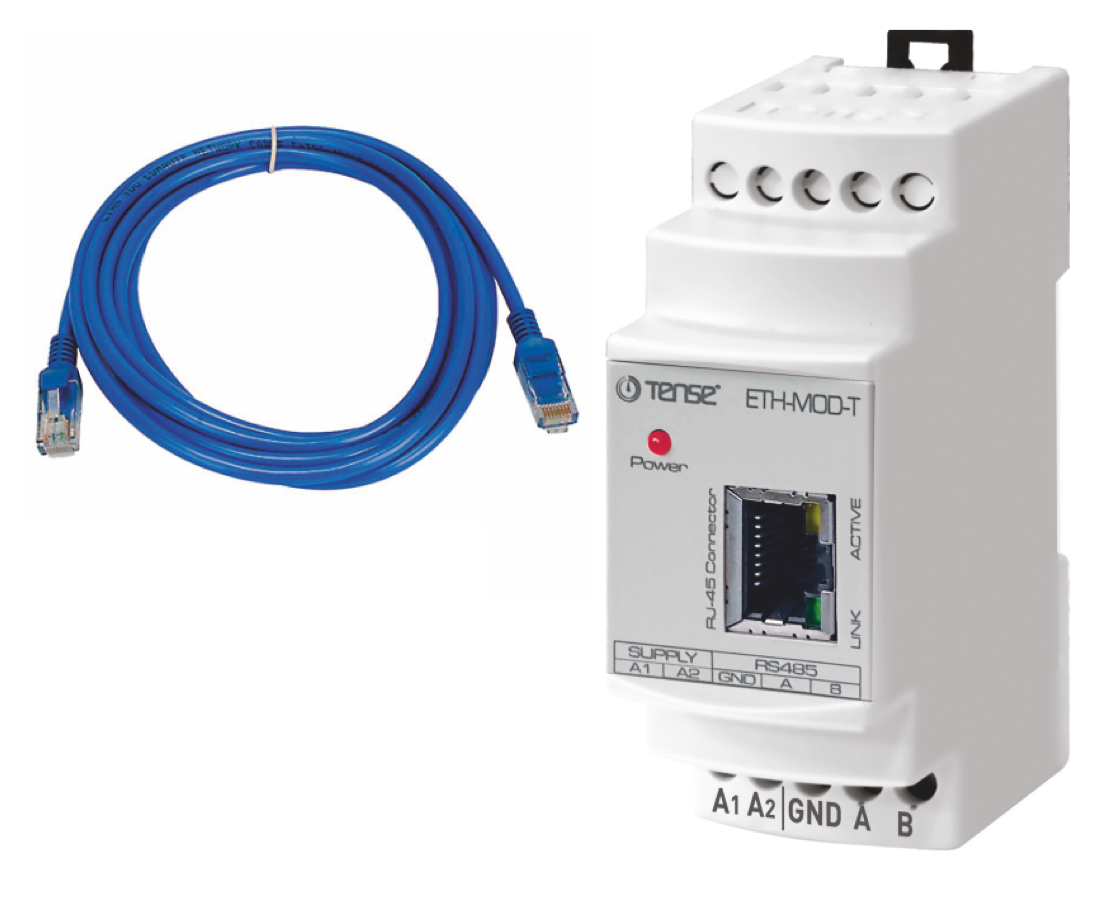

converter comes with an Ethernet cable (2 m);

220 V supply voltage;

resistance to supply voltage fluctuations in a wide range - 85 V ... 300 V

connection of up to 32 devices via RS485 / ModBus;

illuminated indication of power supply / network connection / communication activity;

high data transfer rate - up to 115,200 bps;

10/100BASE Ethernet network;

wide ambient temperature range: -20 °C ... +55 °C (in most cases does not require additional heating or cooling);

free software for gateway installation.
