Modbus interface converter RS485 to RS232 computer via USB

RS485/RS232 to USB protocol converter. Protocol converter/gateway for connecting devices with RS (MODBUS) port to a computer via USB port (USB socket). USB-CON. TENSE Turkey

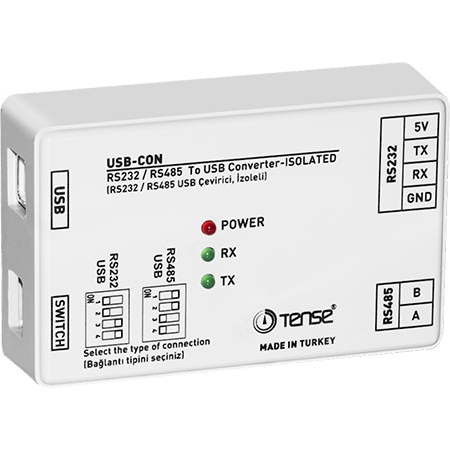

The USB-CON protocol converter, manufactured by TENSE Turkey, is a compact gateway for connecting any device with an RS485/RS232 (MODBUS) port to a computer via the USB port. You can connect devices such as power meters, multimeters, network analyzers, and other equipment.

The RS485/RS232/USB gateway does not require a separate power supply (the converter is powered via the USB port) and has the following parameters:

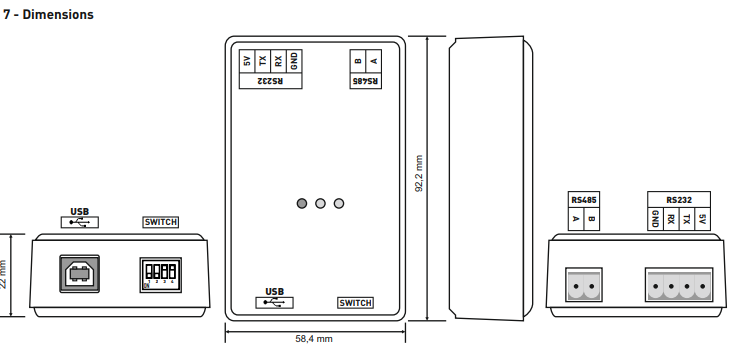

small dimensions of the protocol converter - 9 cm x 6 cm x 3 cm;

fast connection via terminal blocks;

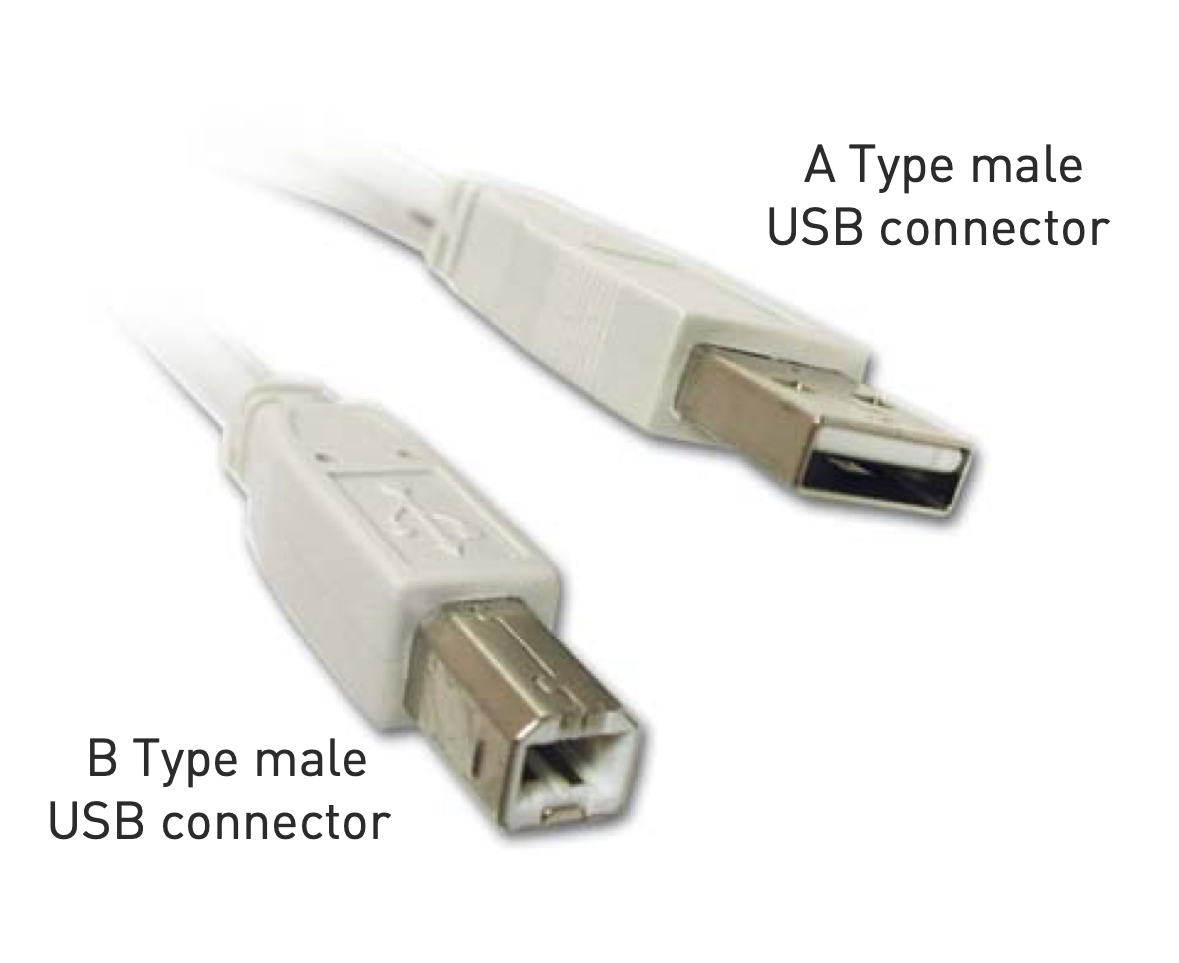

the converter kit includes a USB cable (1.2 m);

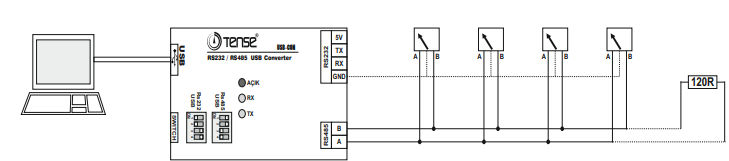

connection to 256 RS485/ModBus devices;

illuminated indication of power/data exchange;

high data exchange speed - up to 203400 bit/s;

galvanically isolated inputs/outputs.

Wide operating temperature range: -20°C...+55°C (mostly does not require additional heating or cooling);
