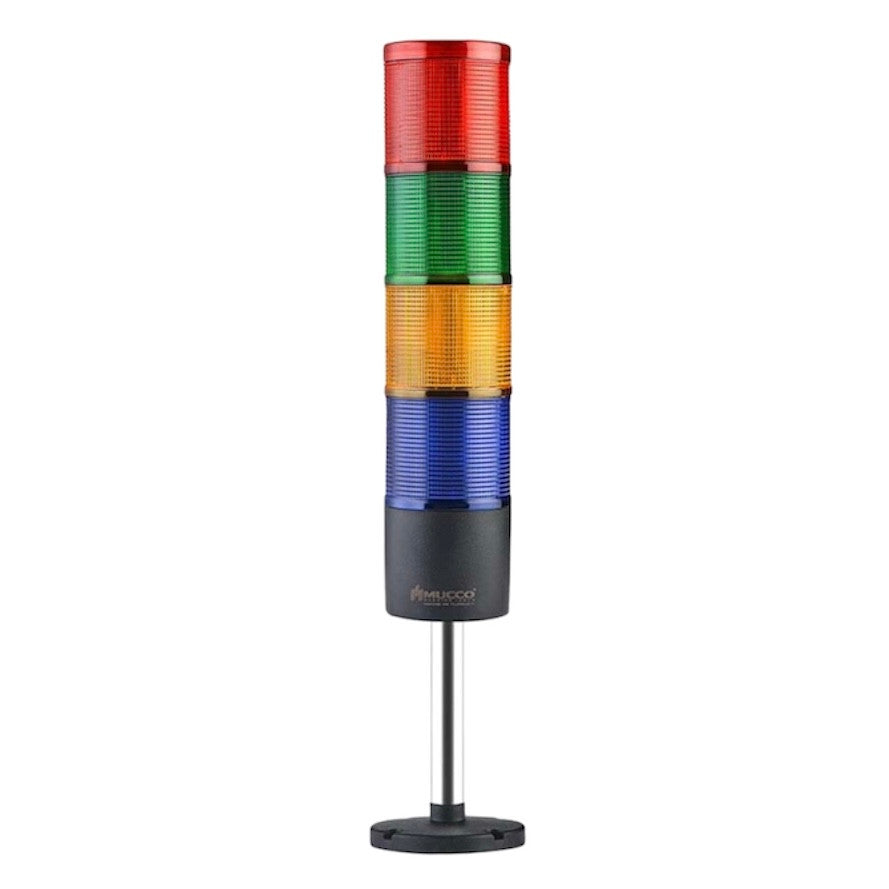

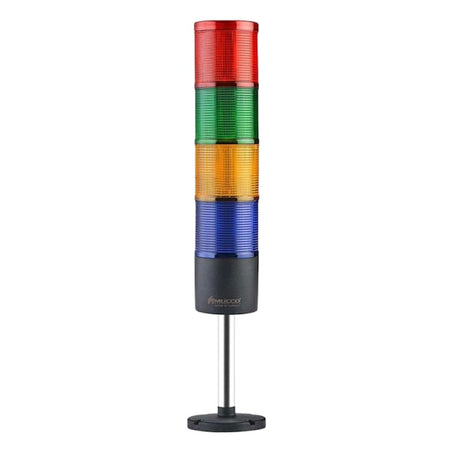

Four-story signal column with surface mounting and 10 cm tube

Four-story signal post with surface mounting and 10cm tube, 12-24, 40-250V AC/DC, SNT-7013 / SNT-7022, manufacturer MUCCO (Turkey).

Sound signal options no

Beacon type flashing

TECHNICAL DATA

• Category.
• Current:

12~24V AC/DC: 166mA ±10%.
40~250V AC/DC: 30mA ±10% 50-60 Hz

• Housing material: material: ABS (housing) + polycarbonate (lens)
• Lens colors: (customizable colors): red, green, yellow, blue (customizable colors).

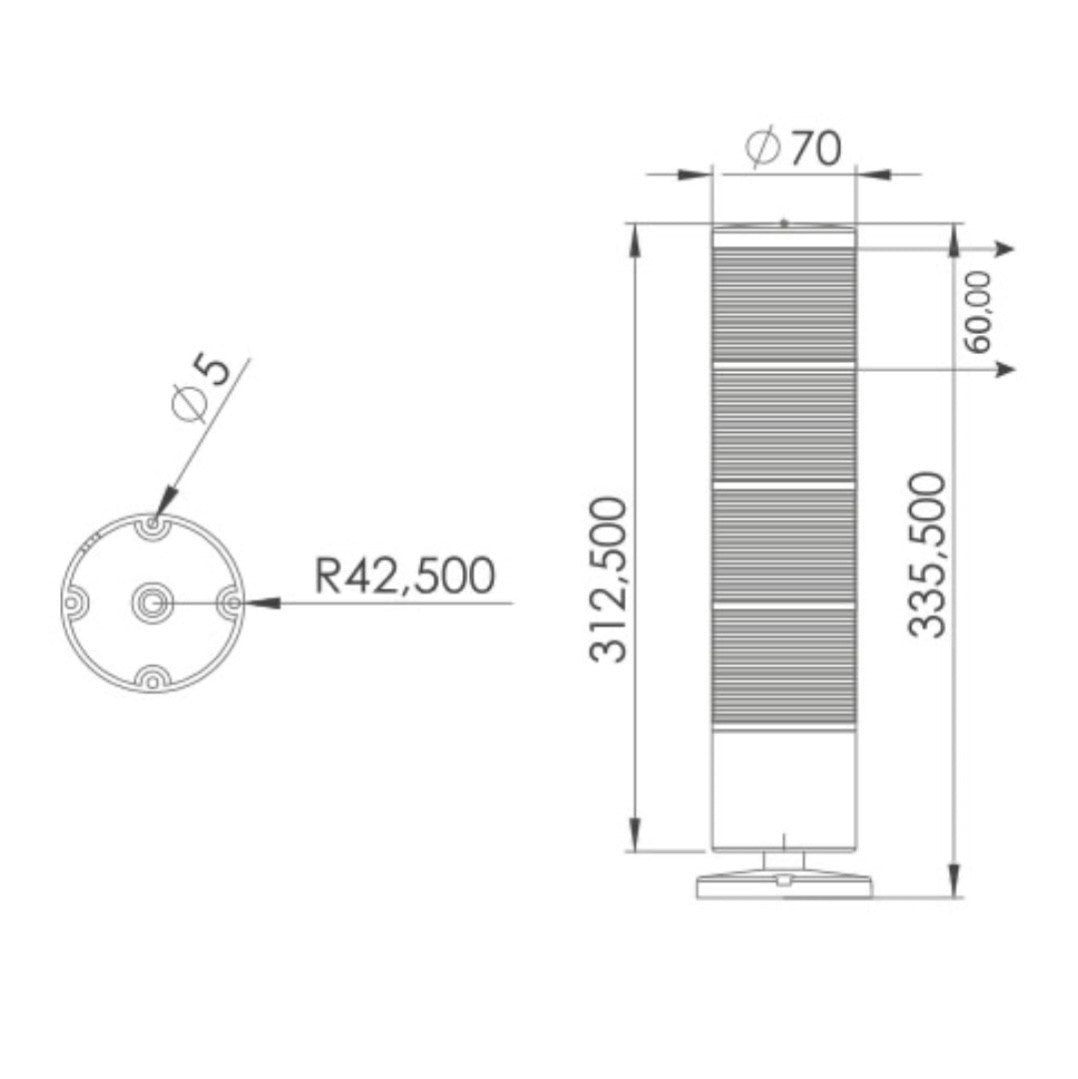

• Lens diameter: ø70 mm
• Light source: SMD LED
• Light mode: Light mode: steady, flashing, strobe, rotating.
• Input response time: on/off: maximum 10 ms.
• Tone: (wired control): 1 tone
• Alarm: 103~116 dB at 1 m distance (3.3 ft).
• Connection: wired connection:
• Mounting type: Foldable base and external tube options.
• Operating conditions: -20°C to +50°C (-4°F to +122°F)
• Expected lifespan: Additional questions must be noted as needed. 50,000 hours
• Protection class: IP65
• Water, dust, heat, and UV resistance.
• ISO-9001, CE, RoHS2, and EAC
