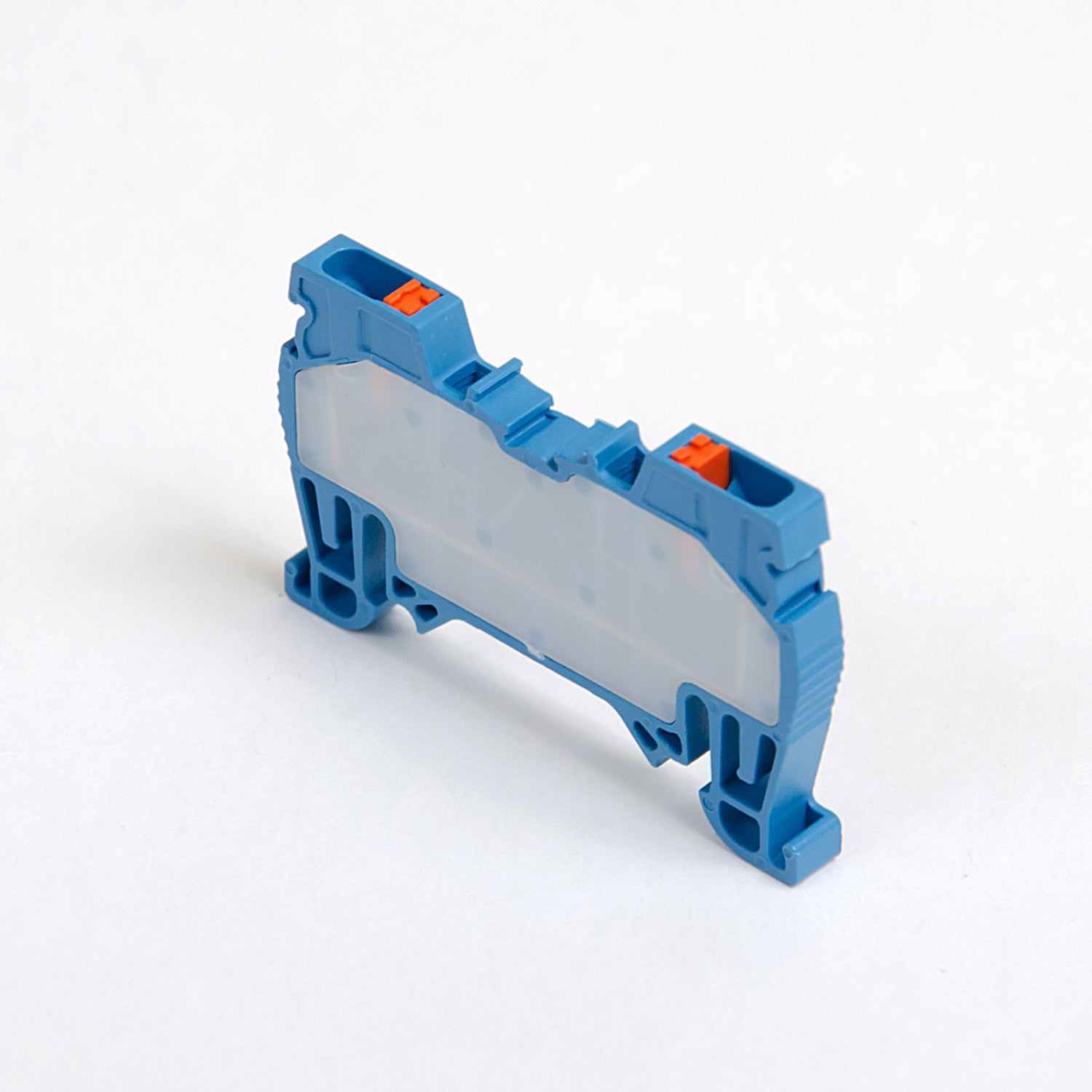

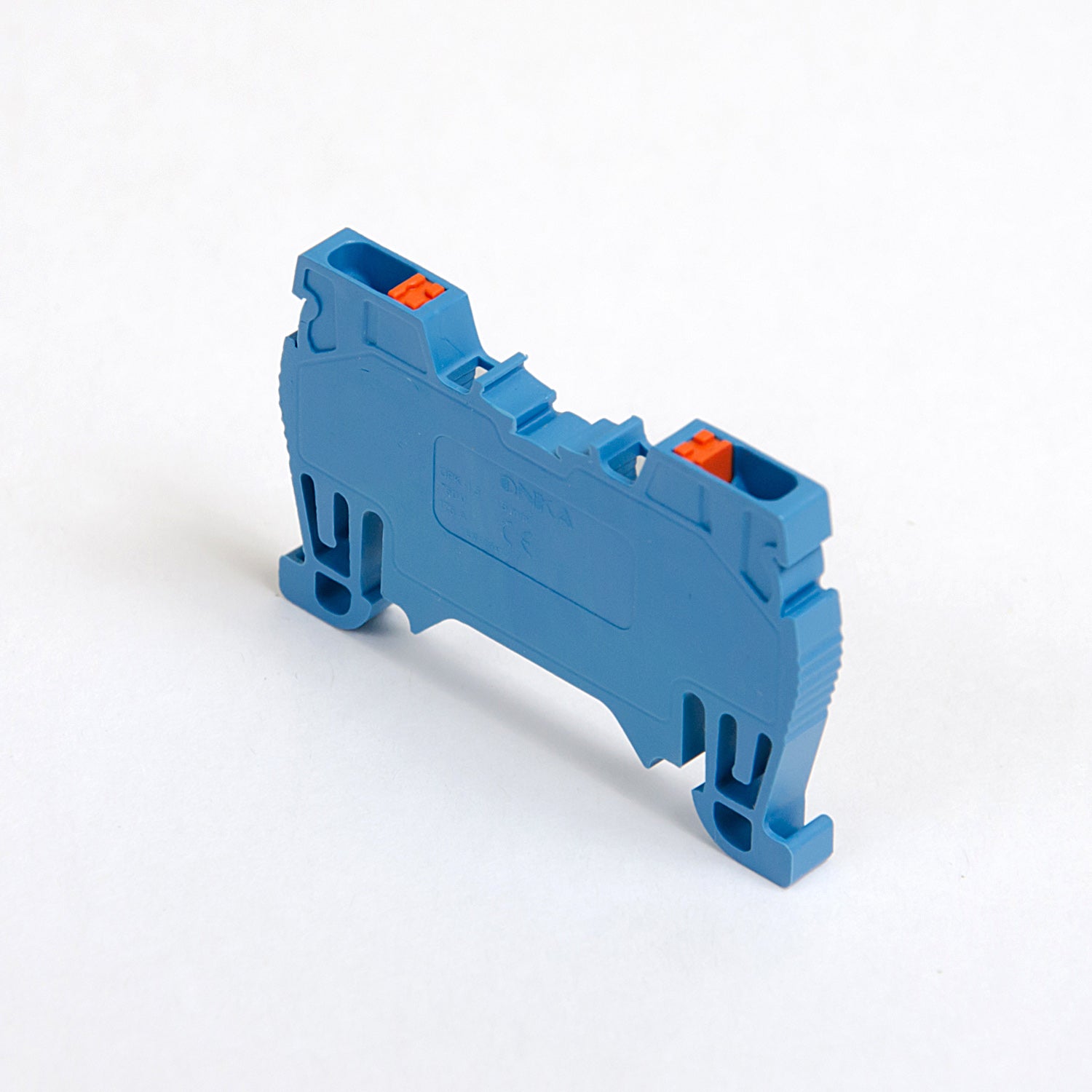

ONKA 1.5mm2 suspension terminal block for DIN rail 2-wire blue, 1020005

Spring-loaded terminal block / DIN terminal connection 2-wire, retractable contact, blue, ONKA, made in Turkey.

The ONKA connector/terminal is a reliable solution for anyone looking for functional and durable elements in electrical installations.
Made of high-quality materials, the connector ensures long-term use and resistance to mechanical damage.

Technical parameters

Cross-section of connectable single conductor up to: 1.5 mm2
Color: blue
Insulation material of the main body: polyamide (PA6.6)
Contact/bridge material: stainless steel/copper
Torque: 0.4 Nm
Connection position: Upper / top
Cable strip length: 9 mm
Type of electrical connection: spring clamp / retractable contact
Rated voltage: 750 V
Rated current: 17.5A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Installation method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
