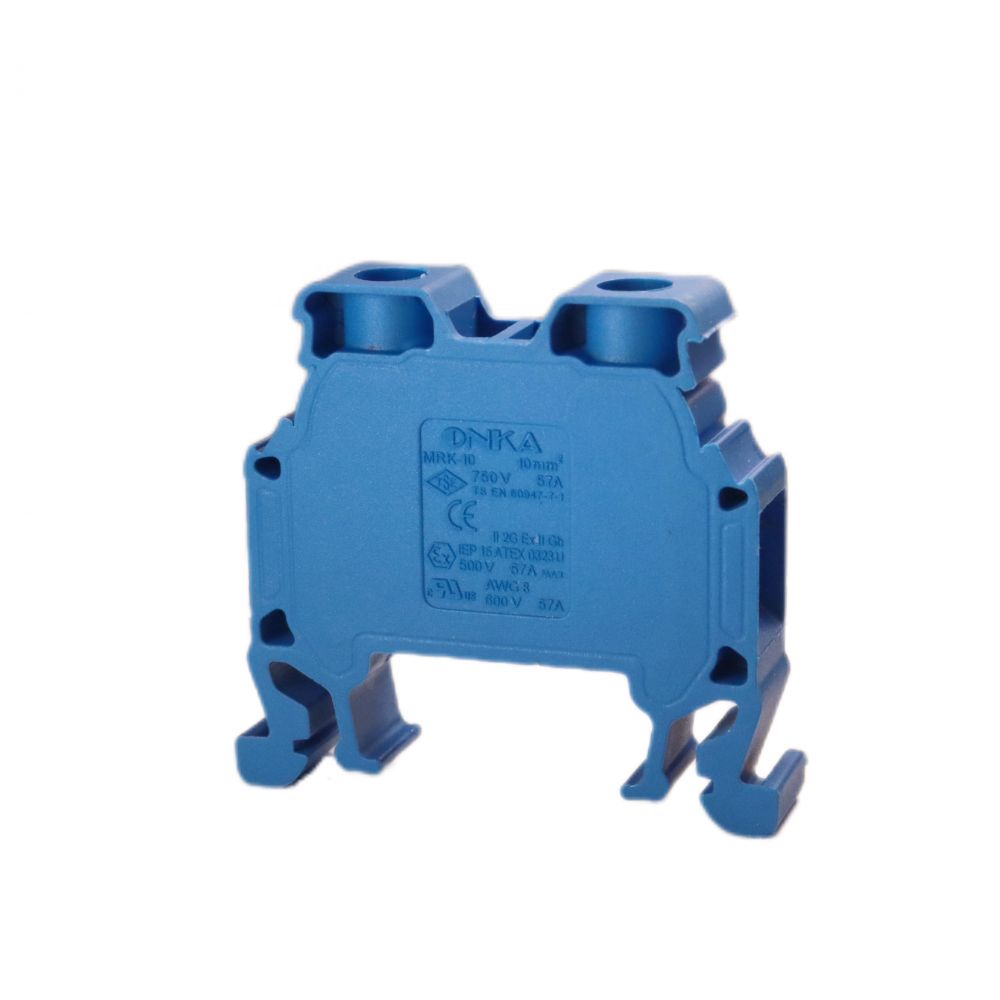

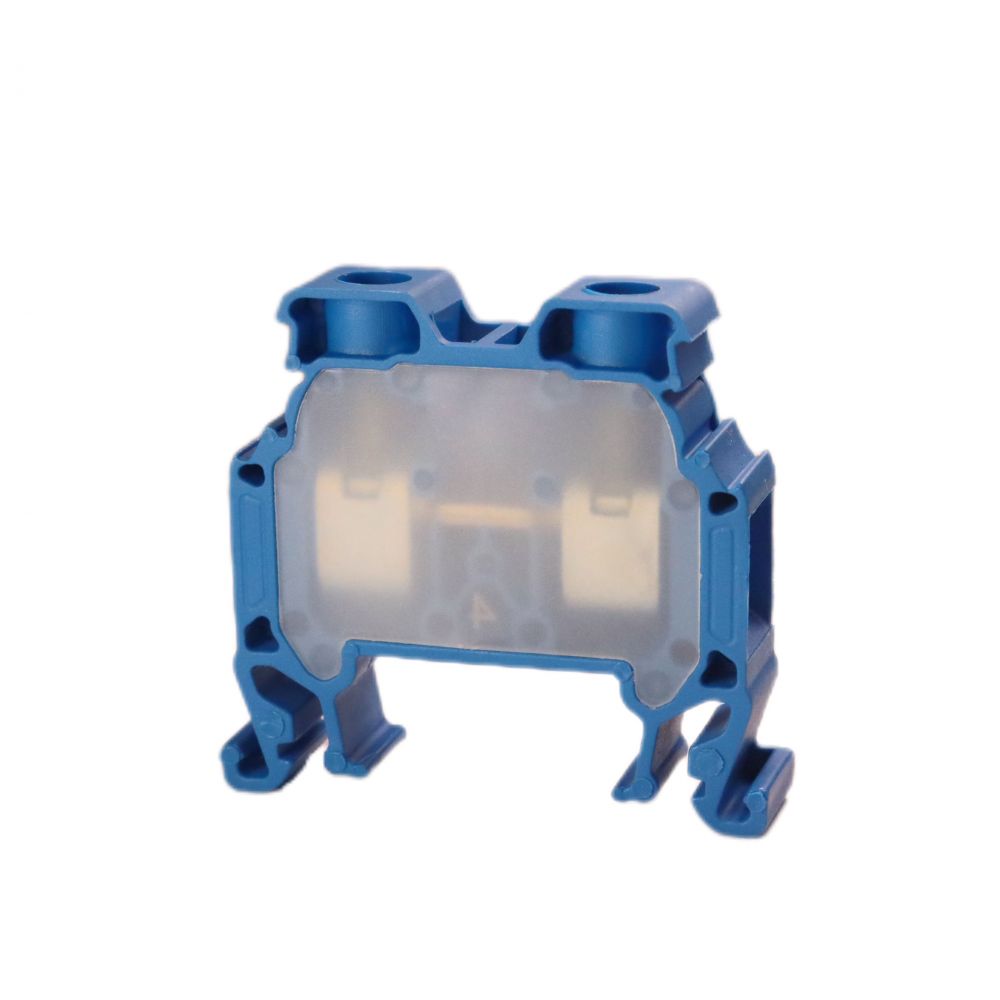

ONKA 10mm2 screw terminal block for DIN rail 2-wire blue, 1010045

Threaded terminal block / DIN rail terminal block 2-wire blue, ONKA, made in Turkey

ONKA connector / terminal block is a reliable solution for anyone looking for functional and durable elements for electrical installations.
Made of high-quality materials, the connector ensures long-term use and resistance to mechanical damage.

Technical parameters

Cross-section of single conductor to be connected up to: 12mm2
Color: blue
Insulation material of the main body: polyamide (PA6.6)
Contact/bridge material: CK45 steel/copper
Torque: 0.8 Nm
Connection position: side / side
Cable strip length: 10 mm
Type of electrical connection: screw terminal
Rated voltage: 750V
Rated current: 57A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
