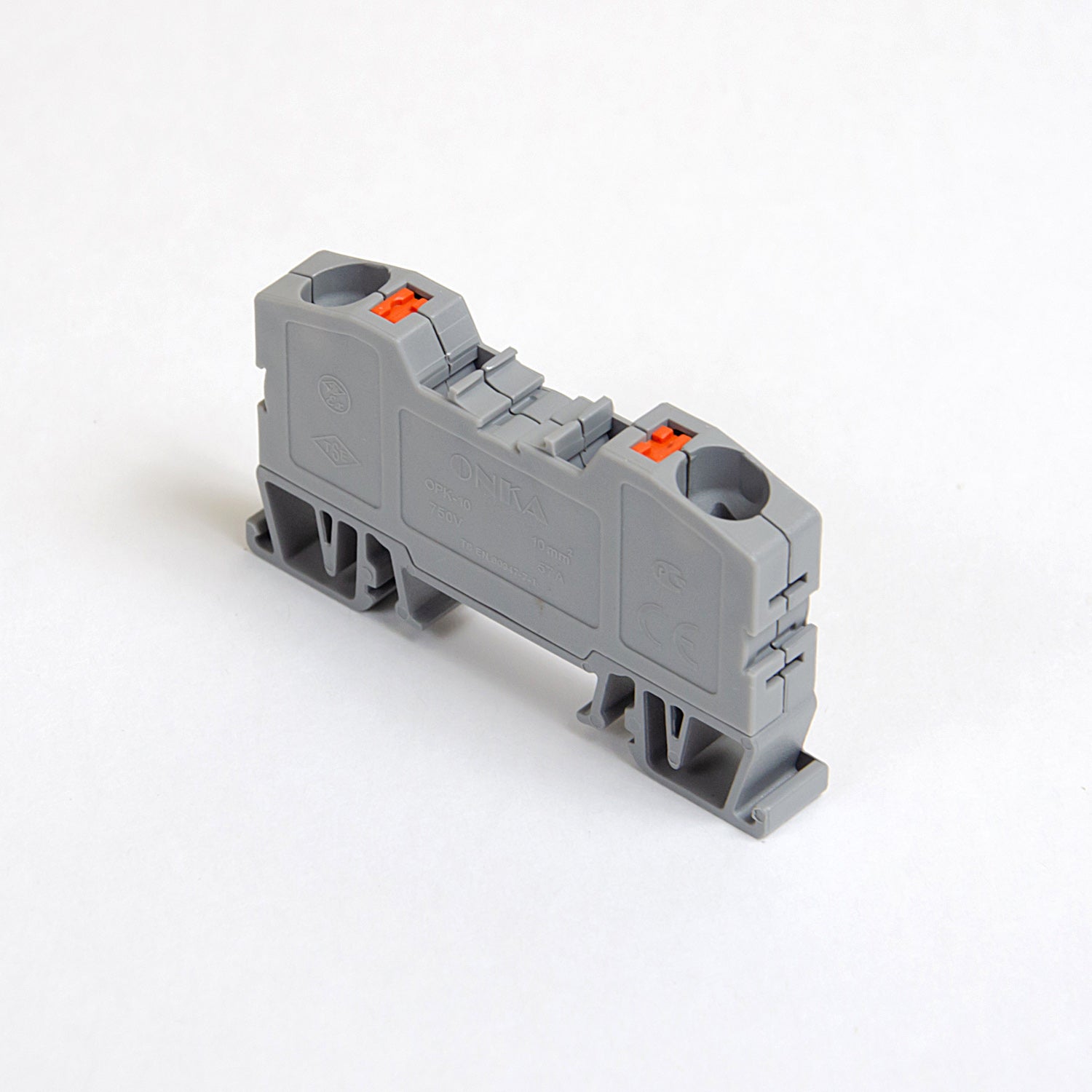

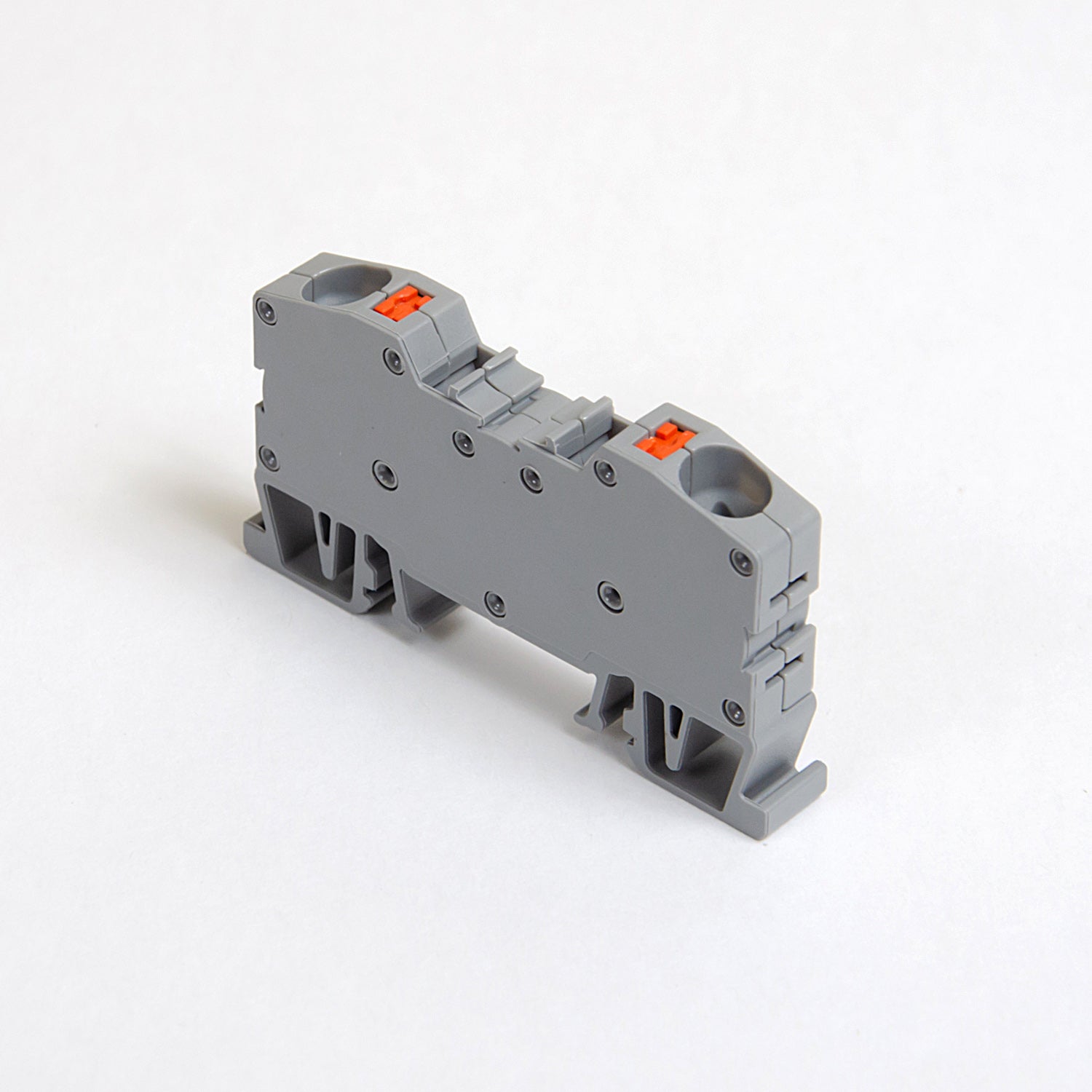

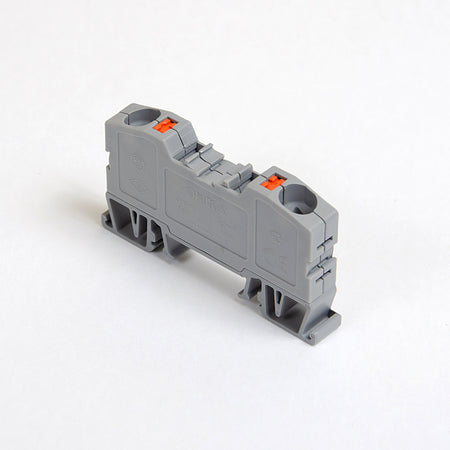

ONKA 10mm2 suspension terminal block DIN rail terminal block 2-wire gray, 1020044

Spring-loaded connection terminal / DIN rail terminal 2-wire, retractable contact, gray, ONKA, made in Turkey

ONKA compact mounting rail connectors offer excellent opportunities for connecting wires of any cross-section. The transparent housing makes it easy to check the correct placement of the wires. Original ONKA quick connectors provide convenience during installation and 100% connection reliability.

Technical parameters

Connectable single wire cross-section up to: 10mm2
Color: gray
Main body insulation material: polyamide (PA6.6)
Contact/bridge material: stainless steel/copper
Connection position: top/top
Cable strip length: 12mm
Electrical connection type: spring clip / retractable contact
Rated voltage: 750 V
Rated current: 57A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Installation method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
