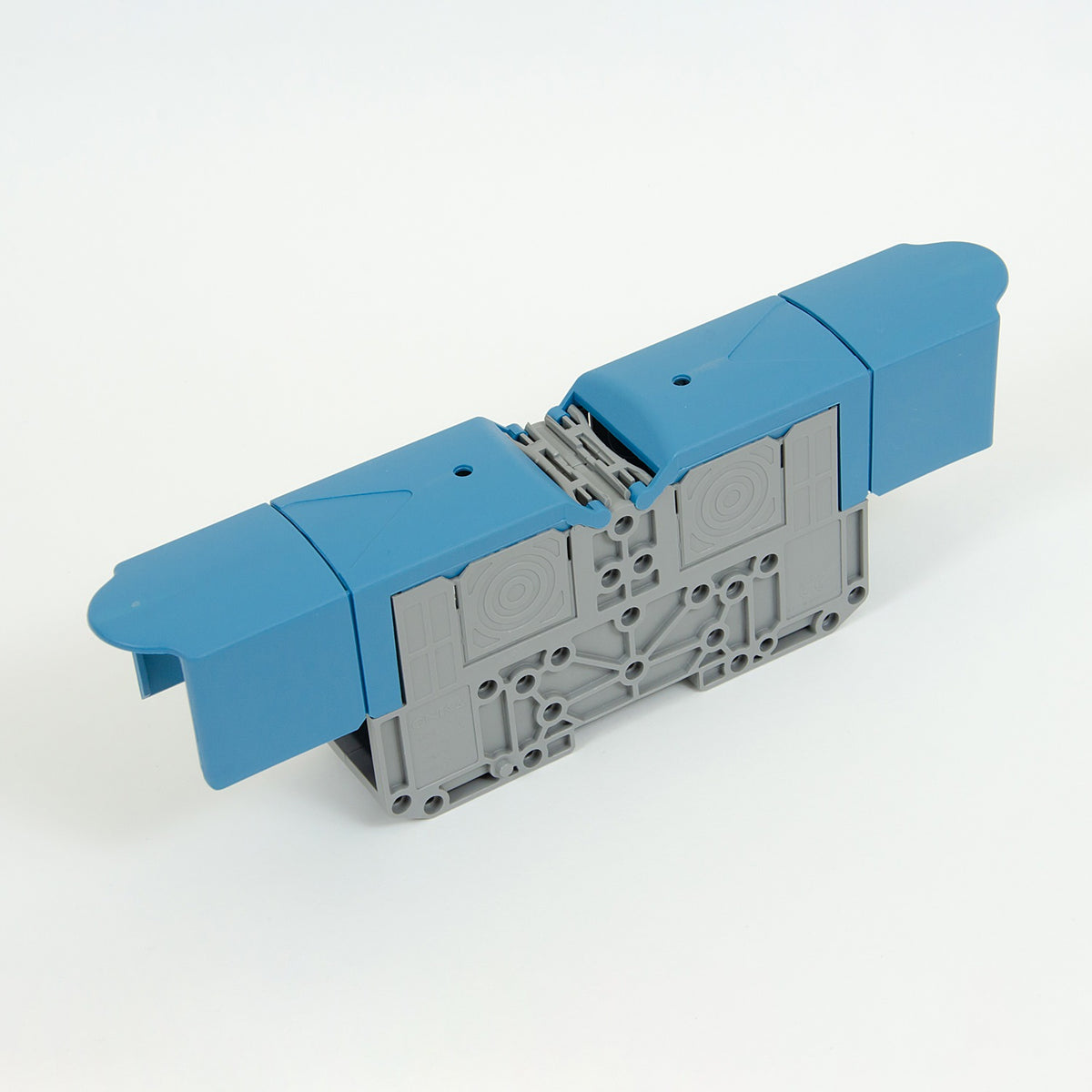

ONKA 150mm2 M12 screw terminal block DIN terminal block, with protective cover, blue, 1030091

M12, 150mm2, threaded connection terminal / DIN rail terminal with protective cover, blue, ONKA, made in Turkey.

ONKA compact mounting rail connectors offer excellent possibilities for connecting wires of any cross-section. The transparent housing makes it easy to check the correct placement of the wires. Original ONKA quick connectors provide convenience during installation and 100% connection reliability.

Technical parameters

Connectable single wire cross-section up to: 150mm2
Color: blue
Main body insulation material: polyamide (PA6.6)
Contact/bridge material: CK45 steel/copper
Connection position: lateral / lateral
Rated voltage: 1000 V
Rated current: 309A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Installation method: DIN 35 mm mounting rail
