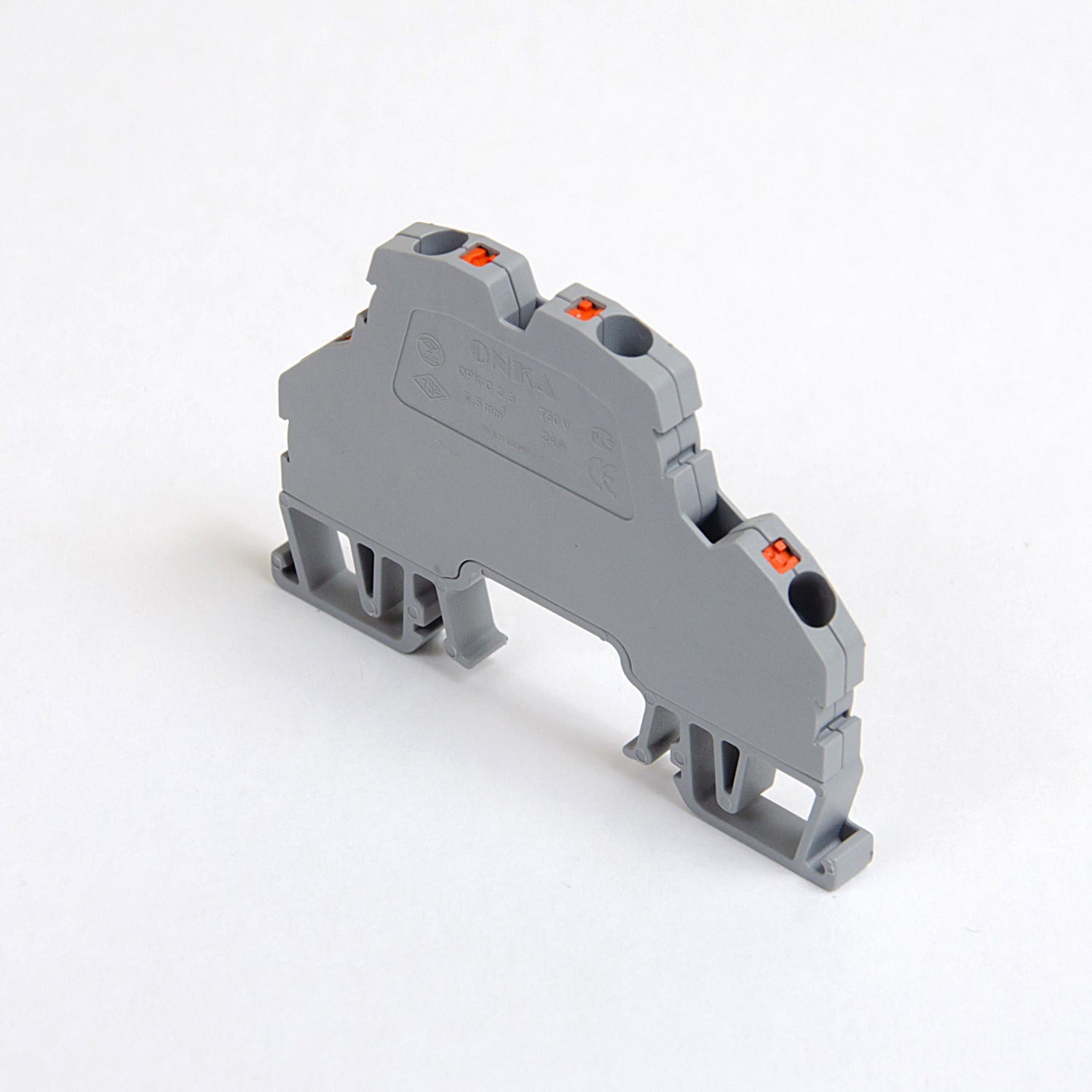

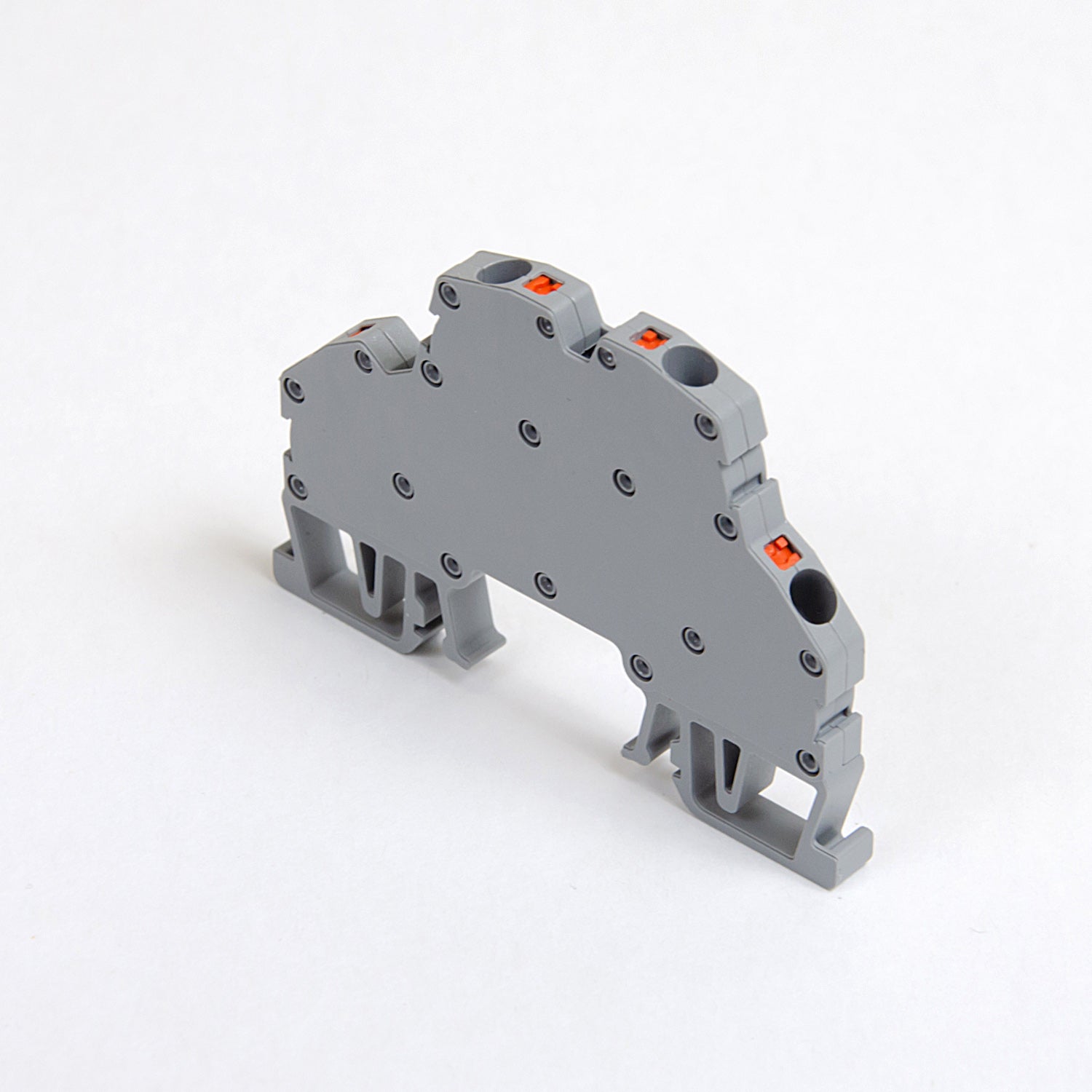

ONKA 2.5 mm2, 2-level suspension terminal block DIN rail terminal block 4-wire gray, 1020379

2-pair spring-loaded connection terminal / DIN rail terminal 4-wire gray, ONKA, made in Turkey

ONKA compact mounting rail connectors offer excellent opportunities for connecting wires of different cross-sections. The transparent housing makes it easy to check the correct placement of the wires. Original ONKA quick connectors offer convenience in installation and 100% connection reliability.

Technical parameters

Connectable single wire cross-section up to: 2.5 mm2
Color: gray
Main body insulation material: polyamide (PA6.6)
Contact/bridge material: CK45 steel/copper
Connection position: Top/top
Cable strip length: 9mm
Electrical connection type: spring clamp
Rated voltage: 750V
Rated current: 25A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Installation method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
