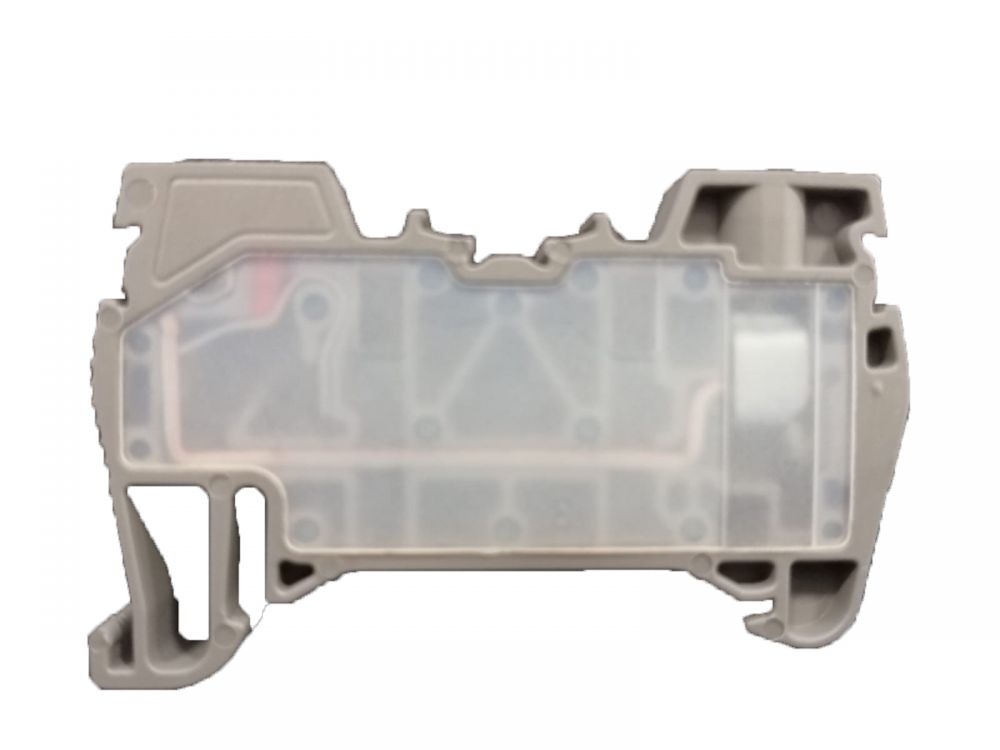

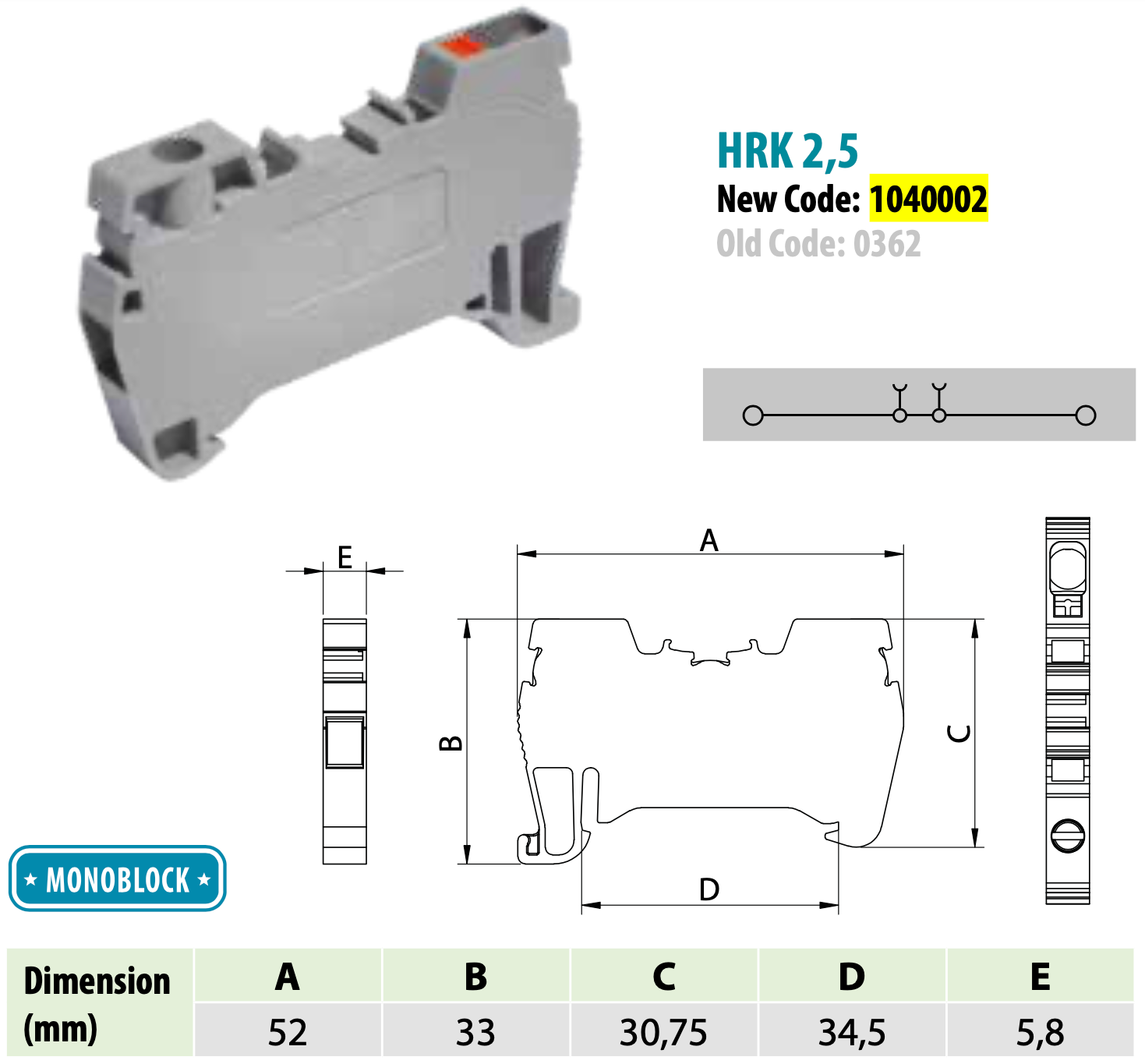

ONKA 2.5 mm2 hybrid screw/spring terminal block Terminal block DIN rail terminal block 2-wire gray, 1040002

Hybrid rail interface / DIN rail terminal 2-wire gray, ONKA, made in Turkey

ONKA compact mounting rail connectors offer excellent opportunities for connecting wires of any cross-section. The transparent housing makes it easy to check the correct placement of the wires. Original ONKA quick connectors provide convenience during installation and 100% connection reliability.

Technical parameters

Connectable single wire cross-section up to: 2.5 mm2
Color: gray
Main body insulation material: polyamide (PA6.6)
Contact/bridge material: CK45 steel/stainless steel/copper
Torque: 0.4 Nm
Connection position: top / side
Cable strip length: 10 mm
Electrical connection type: screw clamp / spring clamp
Rated voltage: 750 V
Rated current: 24A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Installation method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
