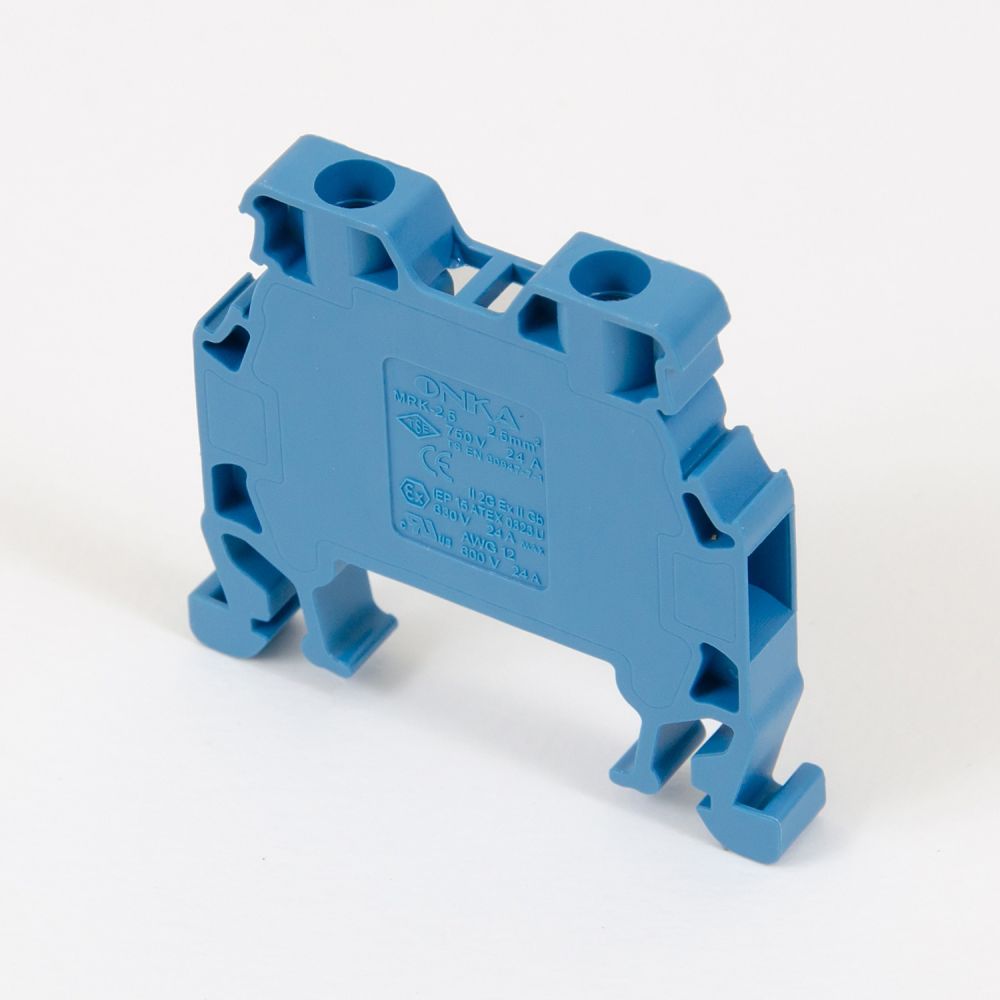

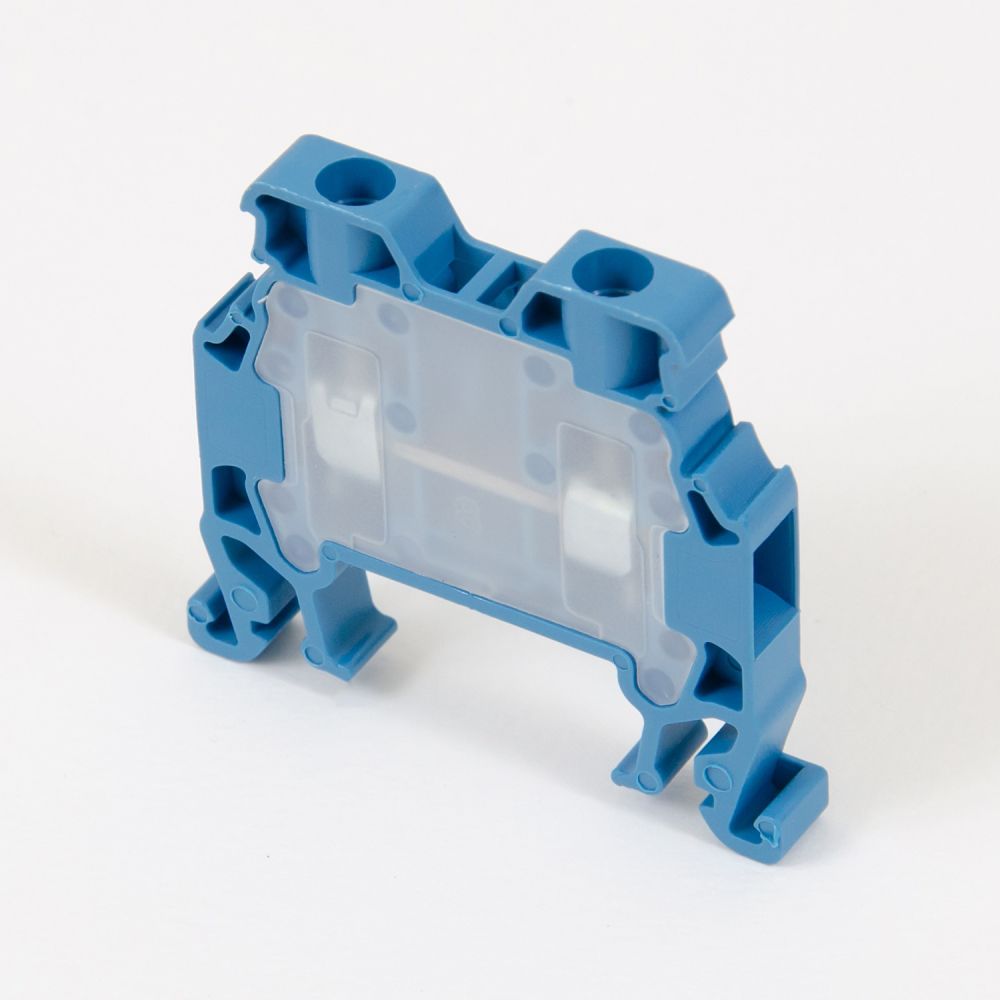

ONKA 2.5 mm2 screw terminal block DIN terminal connections 2-wire blue, 1010015

Threaded connection terminal / DIN rail terminal 2-wire blue, ONKA, made in Turkey

ONKA connector/terminal is a reliable solution for anyone looking for functional and durable elements for electrical installations.
Made of high-quality materials, the connector ensures long-term use and resistance to mechanical damage.

Technical parameters

Cross-section of connectable single wire up to: 2.5 mm2
Color: blue
Insulation material of the main body: polyamide (PA6.6)
Contact/bridge material: CK45 steel/copper
Torque: 0.4 Nm
Connection position: side / lateral
Cable strip length: 10 mm
Type of electrical connection: screw clamp
Rated voltage: 750V
Rated current: 24A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
