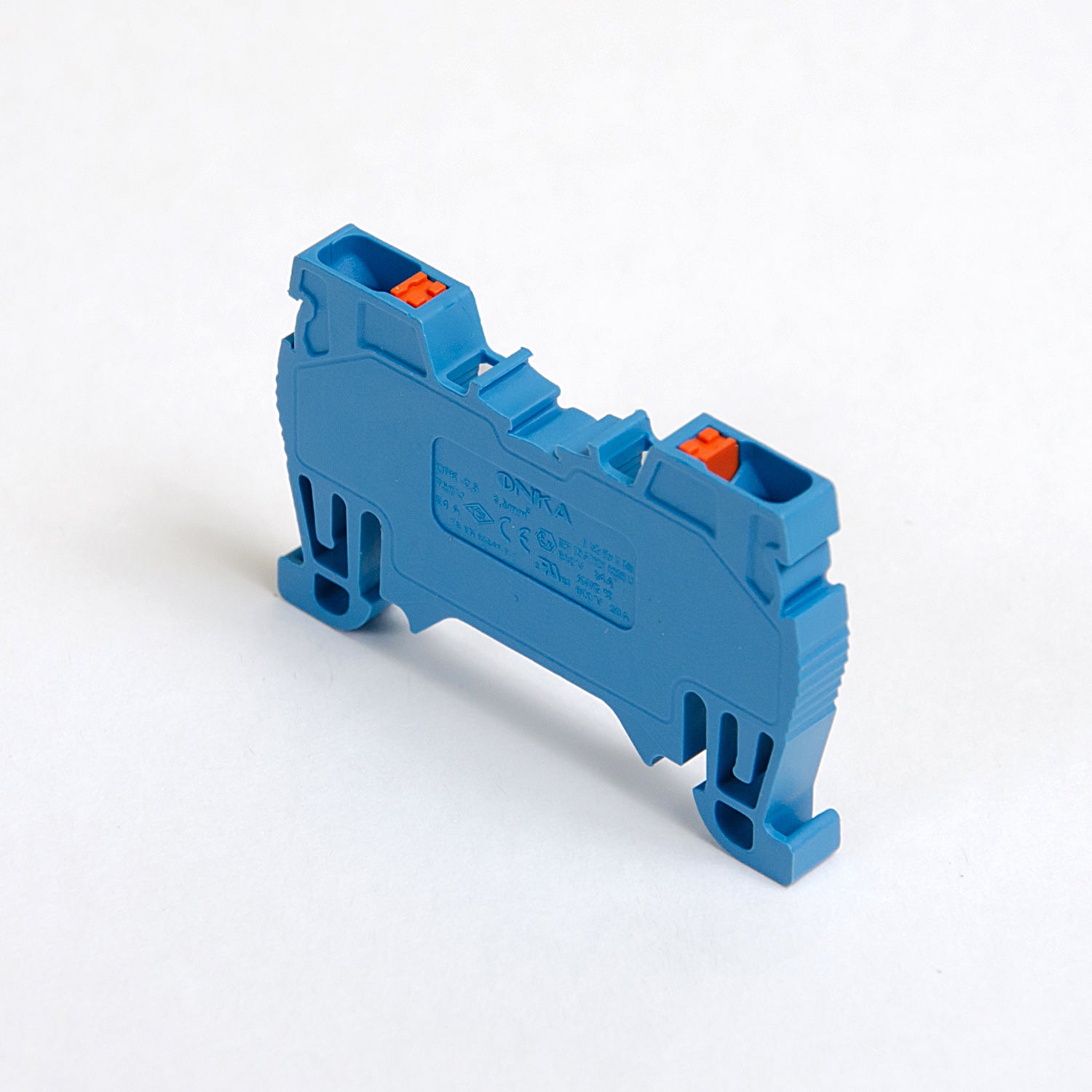

ONKA 2.5mm2 suspension terminal block DIN rail terminal 2-wire gray, 1020016

Spring connection terminal / DIN terminal 2-wire, retractable contact, blue, ONKA, made in Turkey.

The ONKA connector/terminal is a reliable solution for anyone looking for functional and durable components for electrical installations.
Made of high-quality materials, the connection ensures long-term use and resistance to mechanical damage.

Technical parameters

Cross-section of connectable single wire up to: 2.5 mm2
Color: blue
Main body insulation material: polyamide (PA6.6)
Contact/bridge material: stainless steel/copper
Connection position: top/top
Cable strip length: 9mm
Type of electrical connection: spring clamp / retractable contact
Rated voltage: 750 V
Rated current: 24A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
