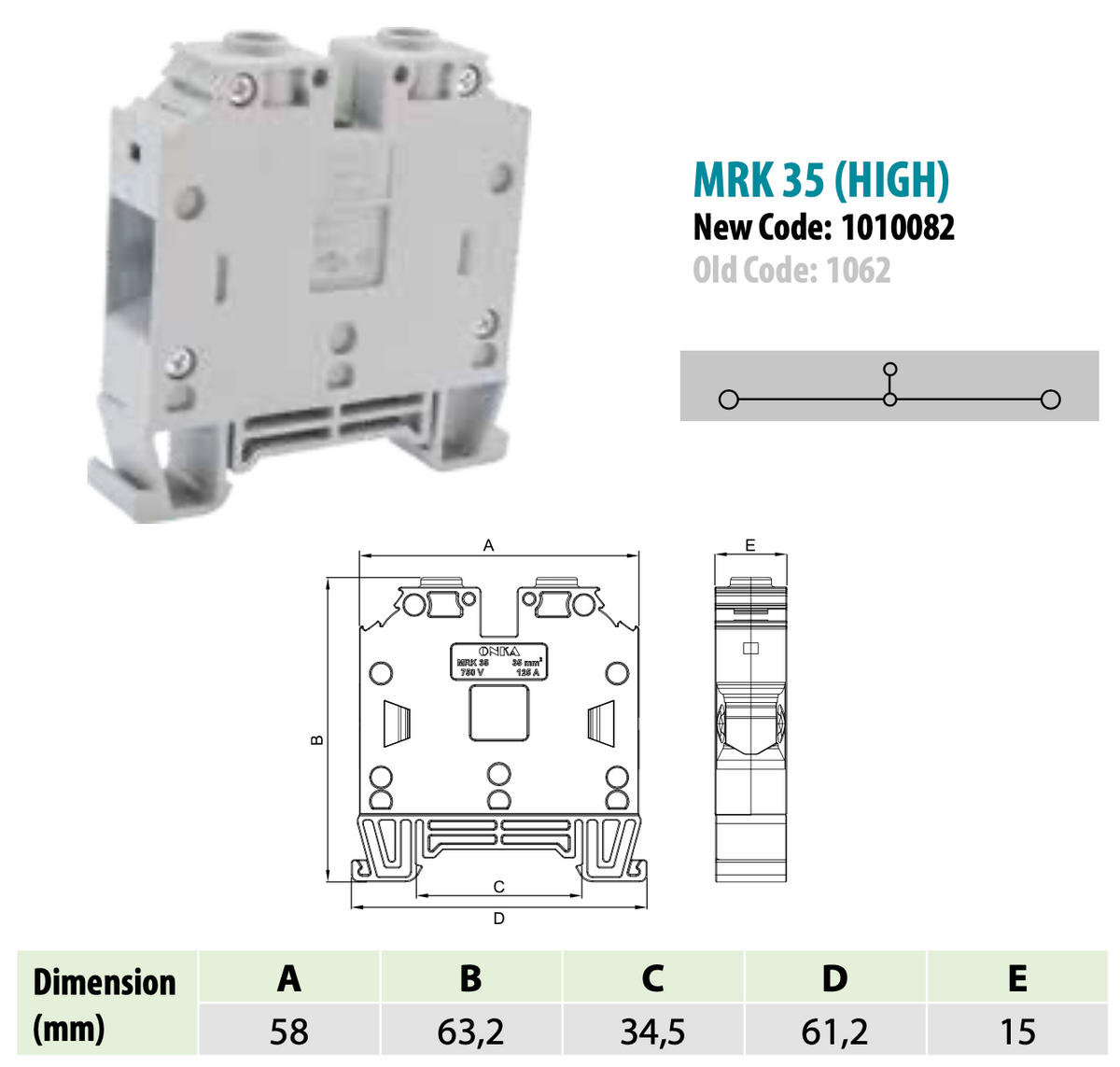

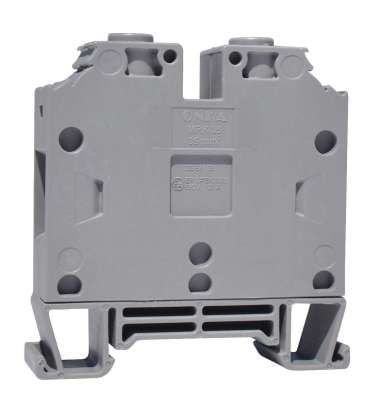

ONKA 35mm2 screw terminal block DIN-dash connectors 2-wire gray, 1010082

Threaded connection terminal / DIN rail terminal 2-wire gray, ONKA, made in Turkey

ONKA compact mounting rail connectors offer excellent opportunities for connecting wires of any cross-section. The transparent housing makes it easy to check the correct placement of the wires. Original ONKA quick connectors provide convenience during installation and 100% connection reliability.

Technical parameters

Connectable single wire cross-section up to: 35mm2
Color: gray
Main body insulation material: polyamide (PA6.6)
Contact/bridge material: CK45 steel/copper
Torque: 2.0 Nm
Connection position: lateral / lateral
Cable strip length: 18 mm
Electrical connection type: screw terminal
Rated voltage: 750V
Rated current: 125A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Installation method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
