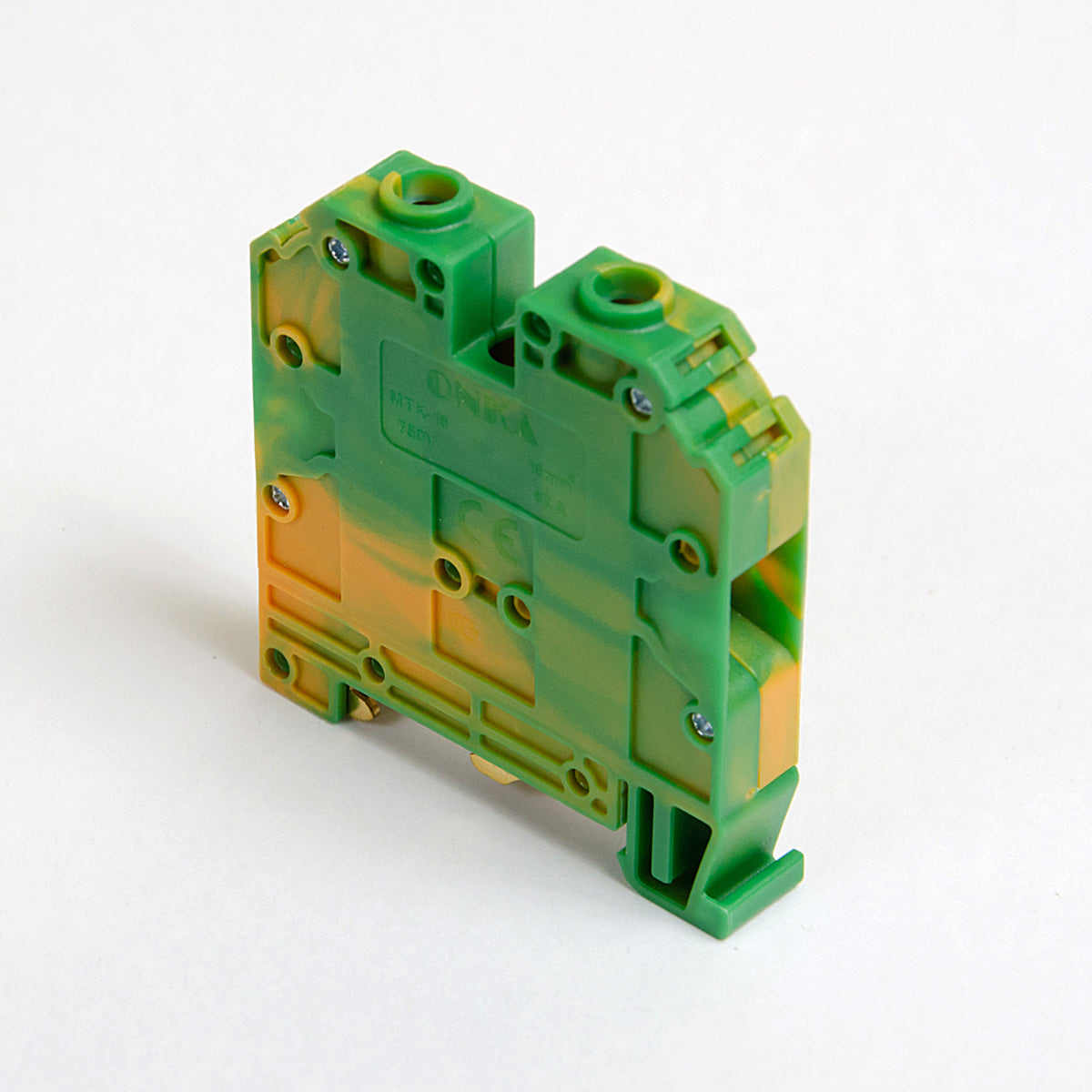

ONKA 35mm2 PE screw terminal block DIN terminal block 2-wire gray, 1010225

DIN rail 2-wire green-yellow, ONKA, made in Turkey

ONKA compact rail mounting connectors offer excellent possibilities for connecting wires of any cross-section. The transparent housing makes it easy to check the correct placement of the wires. Original ONKA quick connectors offer convenience in installation and 100% connection reliability.

Technical parameters

Connectable single wire cross-section up to: 35mm2
Color: Green-yellow (camouflage)
Main body insulation material: polyamide (PA6.6)
Contact/bridge material: CK45 steel/copper
Torque: 1.2 Nm
Connection position: lateral / lateral
Cable strip length: 16 mm
Electrical connection type: screw terminal
Rated voltage: 750V
Operating temperature range: -40°C ... 140°C
Installation method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
