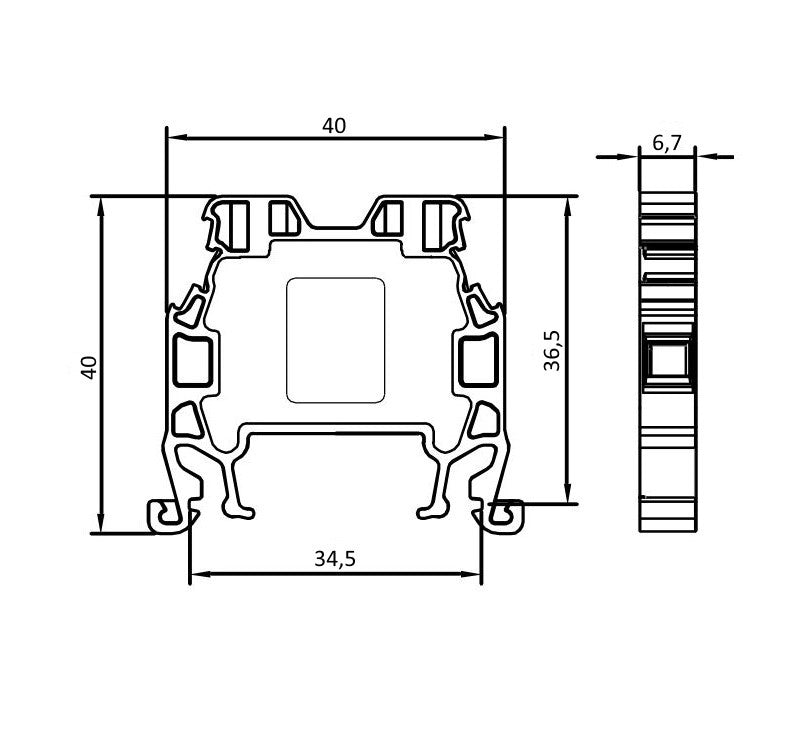

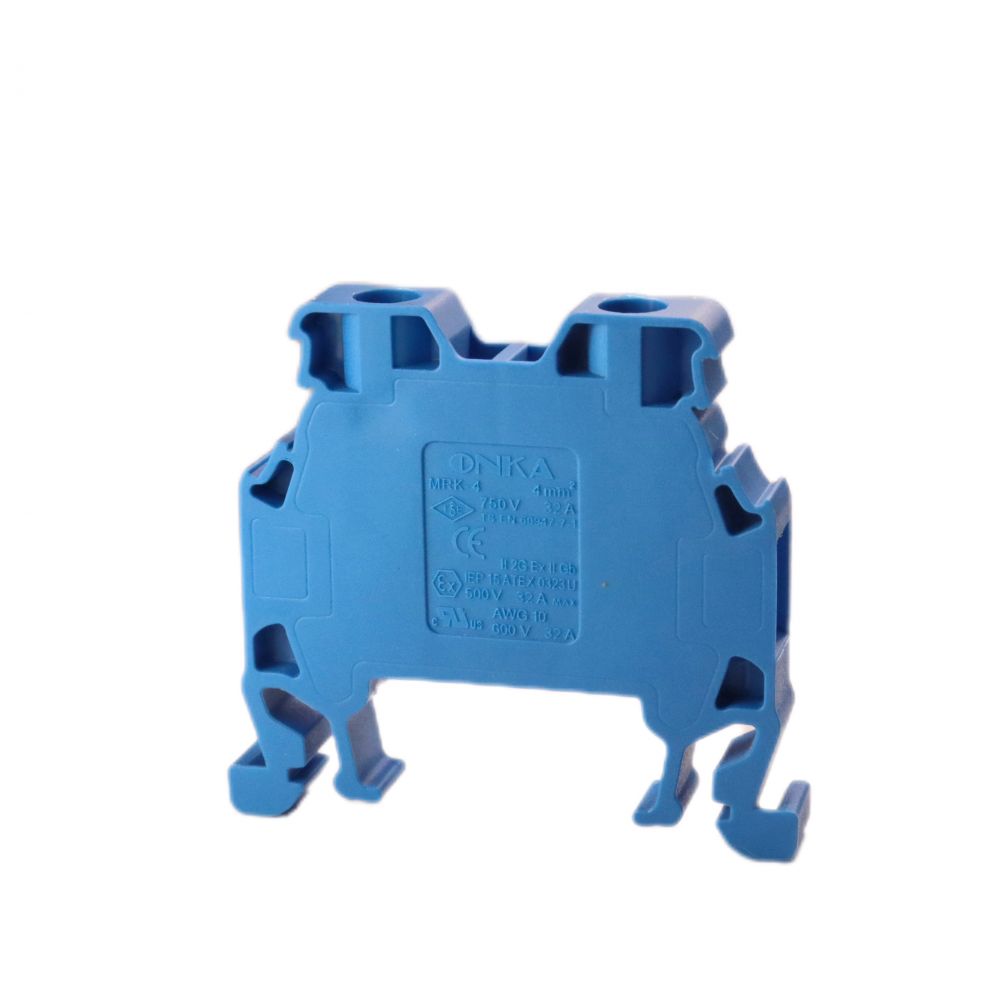

ONKA 4mm2 screw terminal block for DIN rail 2-wire blue, 1010025

Threaded connection terminal / DIN rail terminal 2-wire blue, ONKA, made in Turkey

The ONKA connector/terminal is a reliable solution for anyone looking for functional and durable elements for electrical installations.
The connector, made of high-quality materials, ensures long-term use and resistance to mechanical damage.

Technical parameters

Connectable single wire cross-section up to: 4mm2
Color: blue
Main body insulation material: polyamide (PA6.6)
Contact/bridge material: CK45 steel/copper
Torque: 0.5 Nm
Connection position: lateral / lateral
Cable strip length: 10 mm
Electrical connection type: screw terminal
Rated voltage: 750V
Rated current: 32A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Installation method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
