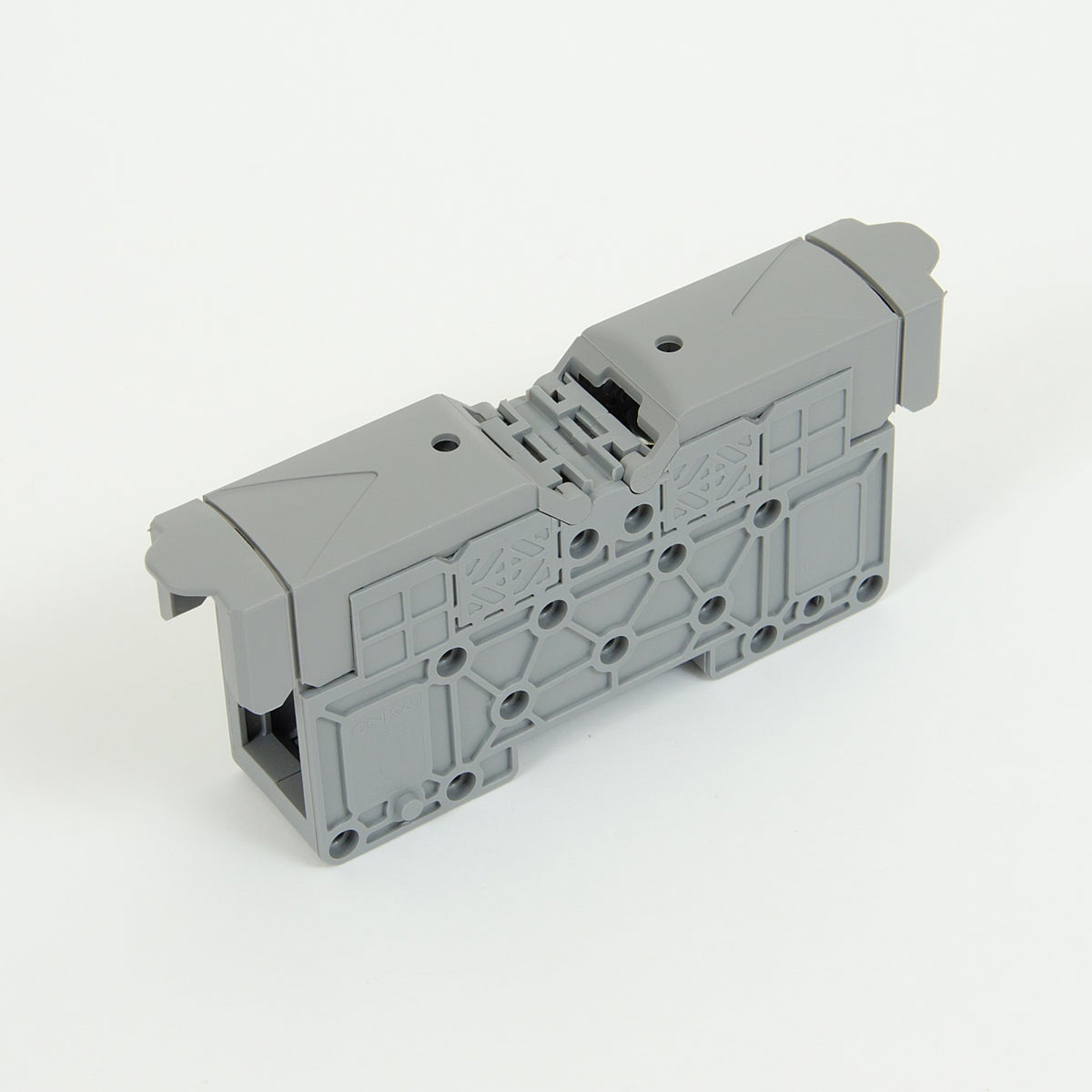

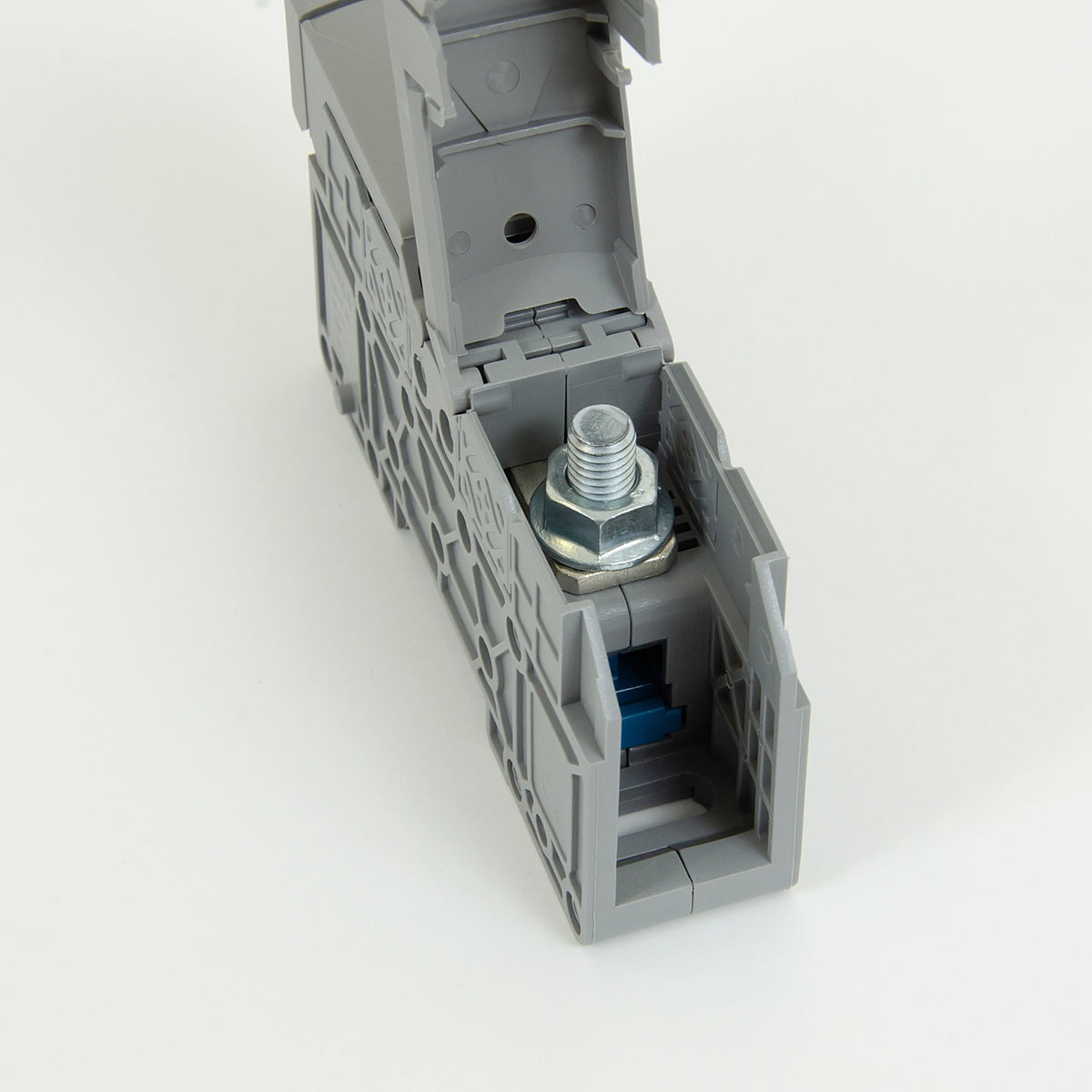

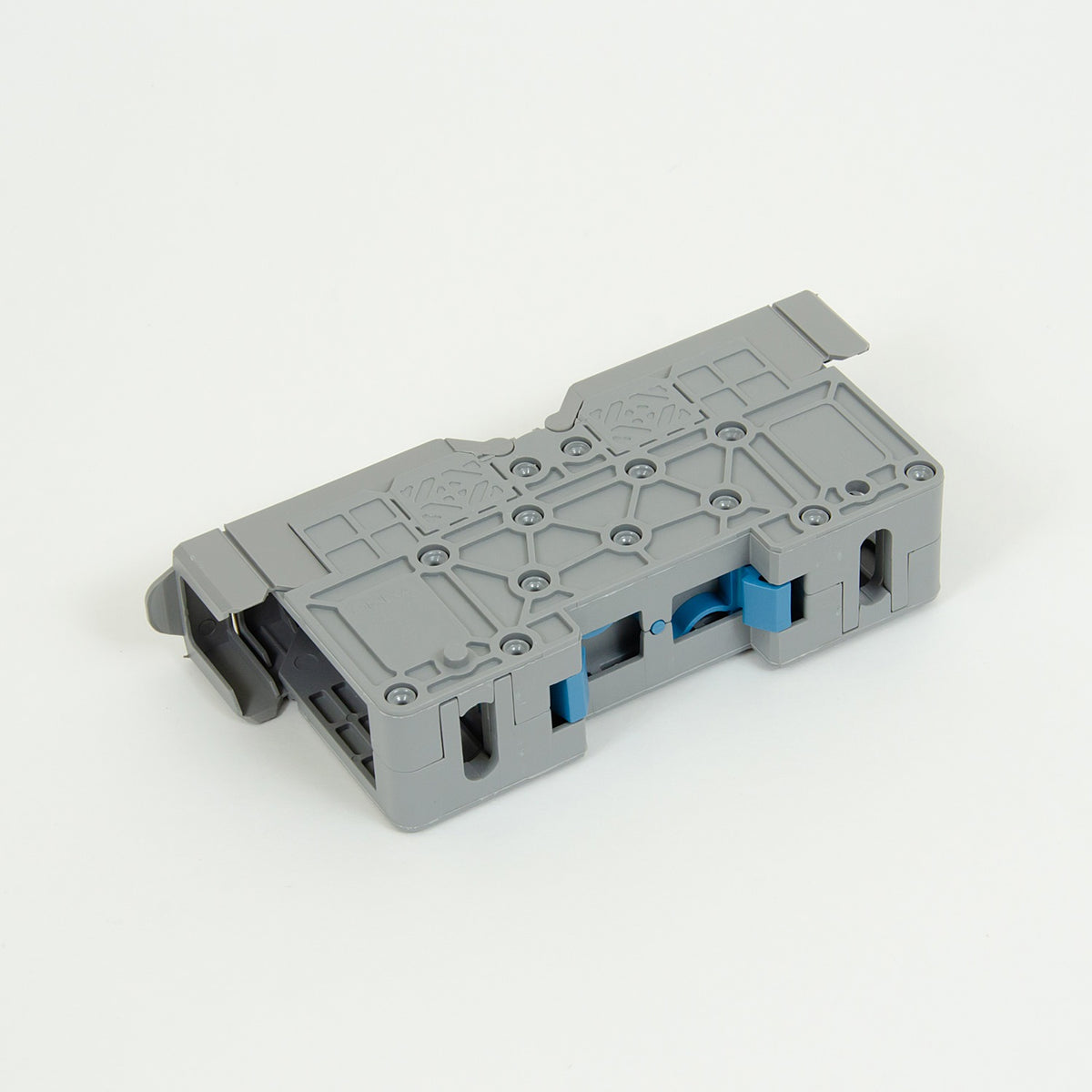

ONKA 50mm2 M8 screw thread connection terminal block DIN terminal block, with protective cover, gray, 1030031

M8, 50mm2, threaded connection terminal / DIN rail terminal with protective cover, gray, ONKA, made in Turkey.

ONKA compact mounting rail connectors offer excellent opportunities for connecting wires of any cross-section. The transparent housing makes it easy to check the correct placement of the wires. Original ONKA quick connectors provide convenience during installation and 100% connection reliability.

Technical parameters

Connectable single wire cross-section up to: 50mm2
Color: gray
Main body insulation material: polyamide (PA6.6)
Contact/bridge material: CK45 steel/copper
Connection position: lateral / lateral
Rated voltage: 1000 V
Rated current: 150A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Installation method: DIN 35 mm mounting rail
